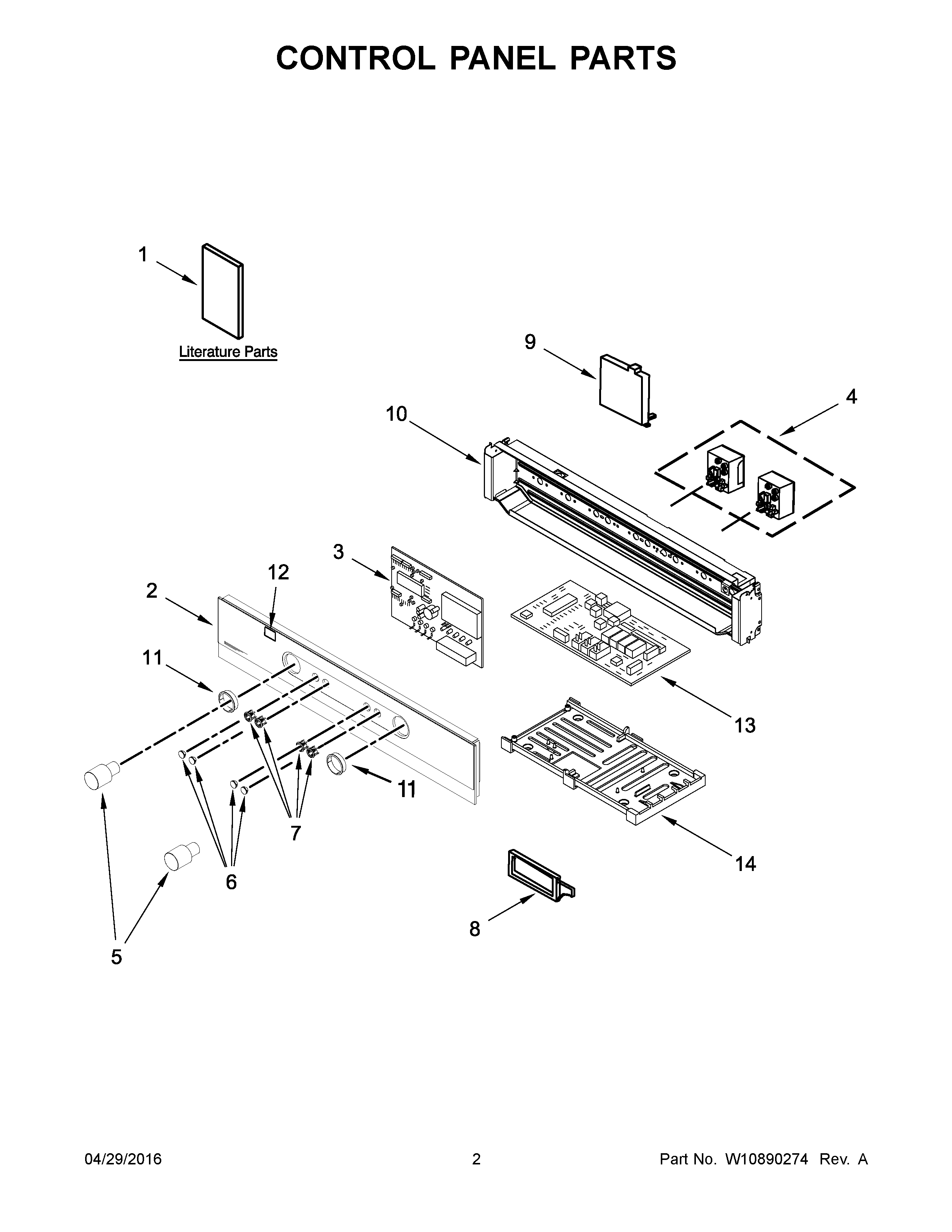

IBMS1455DS01 02 – CONTROL PANEL PARTS

Products

Position	Product
1A	INSTRUCTIONS, INSTALLATION
1C	GUIDE, QUICK REFERENCE
1B	GUIDE, USE & CARE
1	GUIDE, INSTALL
1D	Tech Sheet
2	PANEL, CONTROL (STAINLESS)
3	W10892029 Whirlpool Microwave Electronic Control Board
4	DIAL, CONTROL
5	W10591098 Whirlpool Microwave Control Knob
6	W11086664 Whirlpool Microwave Button
7	W11116990 Whirlpool Microwave Button Holder
8	461967750153 Whirlpool Microwave Support
9	W10884489 Whirlpool Microwave Support
10	W10696315 Whirlpool Microwave Control Bracket
11	RING
12	W10251401 Whirlpool Microwave Temperature Switch
13	W11196485 Whirlpool Electronic Control Board + Core
14	461967750752 Whirlpool Support Bracket
