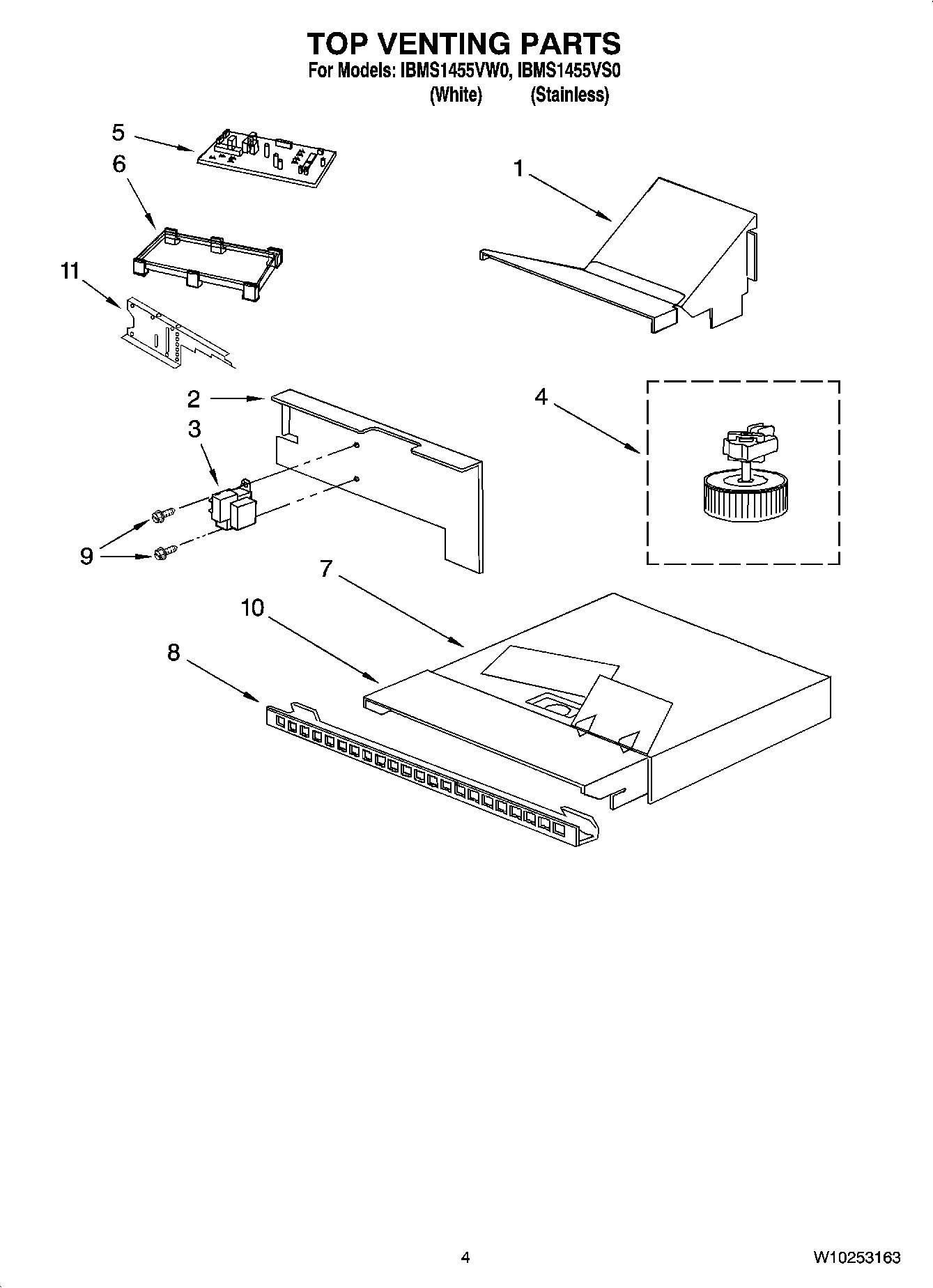

IBMS1455VS0 04 – TOP VENTING PARTS

Products

Position	Product
1	Air Duct
2	Air Guide
3	W11238401 Whirlpool Microwave Transformer
4	W10120517 Whirlpool Microwave Fan Motor
5	WPW10217471-includeCORE Whirlpool WPW10217471 Refrigerator Electronic Control Board + Core
6	Bracket, Support
7	Plate, Air
8	461967749811 Whirlpool Microwave Vent Panel
9	461967825321 Whirlpool Microwave Screw
10	W10141634 Whirlpool Microwave Cover Plate
11	Plate, Air
