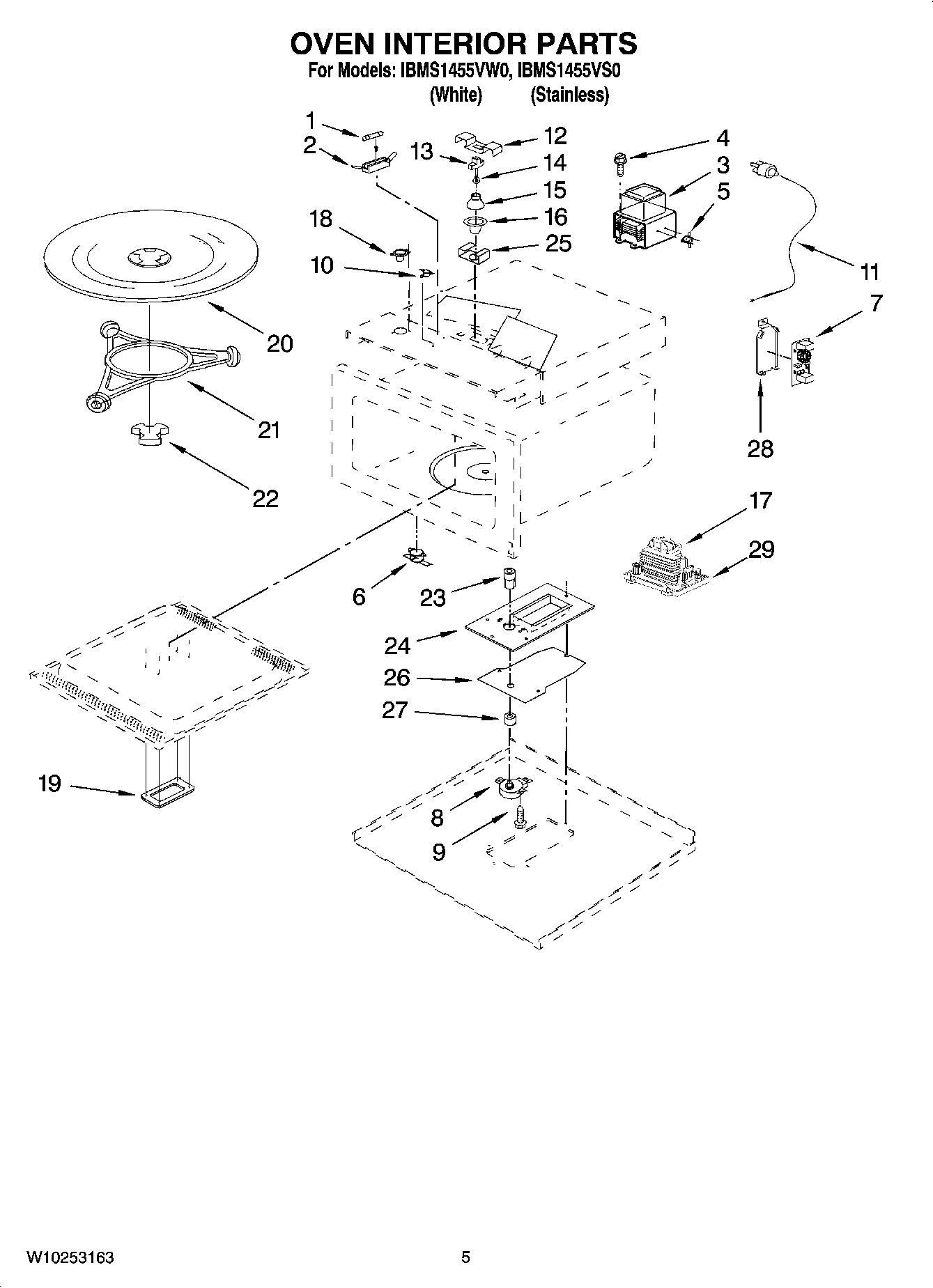

IBMS1455VS0 05 – OVEN INTERIOR PARTS

Products

Position	Product
1	WP4375321 Whirlpool Microwave Fuse
2	8205670 Whirlpool Microwave Fuse Block
3	8206079 Whirlpool Microwave Magnetron
4	SCREW
5	Thermostat
6	W10141630 Whirlpool Microwave Thermostat Fixed
7	WPW10120220 Whirlpool Microwave Filter
8	W10911403 Whirlpool Microwave Turn Motor
9	461967825321 Whirlpool Microwave Screw
10	W11676348 Whirlpool Thermostat Fix
11	8205660 Whirlpool Microwave Power Cord
12	8205679 Whirlpool Spring Assembly
13	WPW10490593 Whirlpool Microwave Lamp Housing
14	WPW10440740 Whirlpool Microwave Light Bulb
15	423107022541 Whirlpool Microwave Reflector
16	W11193483 Whirlpool Microwave Lamp Lens
17	W10217711 Whirlpool Microwave Inverter
18	W10871220 Whirlpool Microwave Sensor
19	W10915651 Whirlpool Waveguide Cover
20	W11373838 Whirlpool Glass Tray
21	Ring, Turntable
22	W11223840 Whirlpool Microwave Turn Shaft
23	W11126044 Whirlpool Drive Shaft
24	461967008471 Whirlpool Microwave Motor Cover
25	W11440819 Whirlpool Clip
26	Cover
27	Ring, Rubber
28	W10130891 Whirlpool Microwave Holder
29	W10130906 Whirlpool Holder
