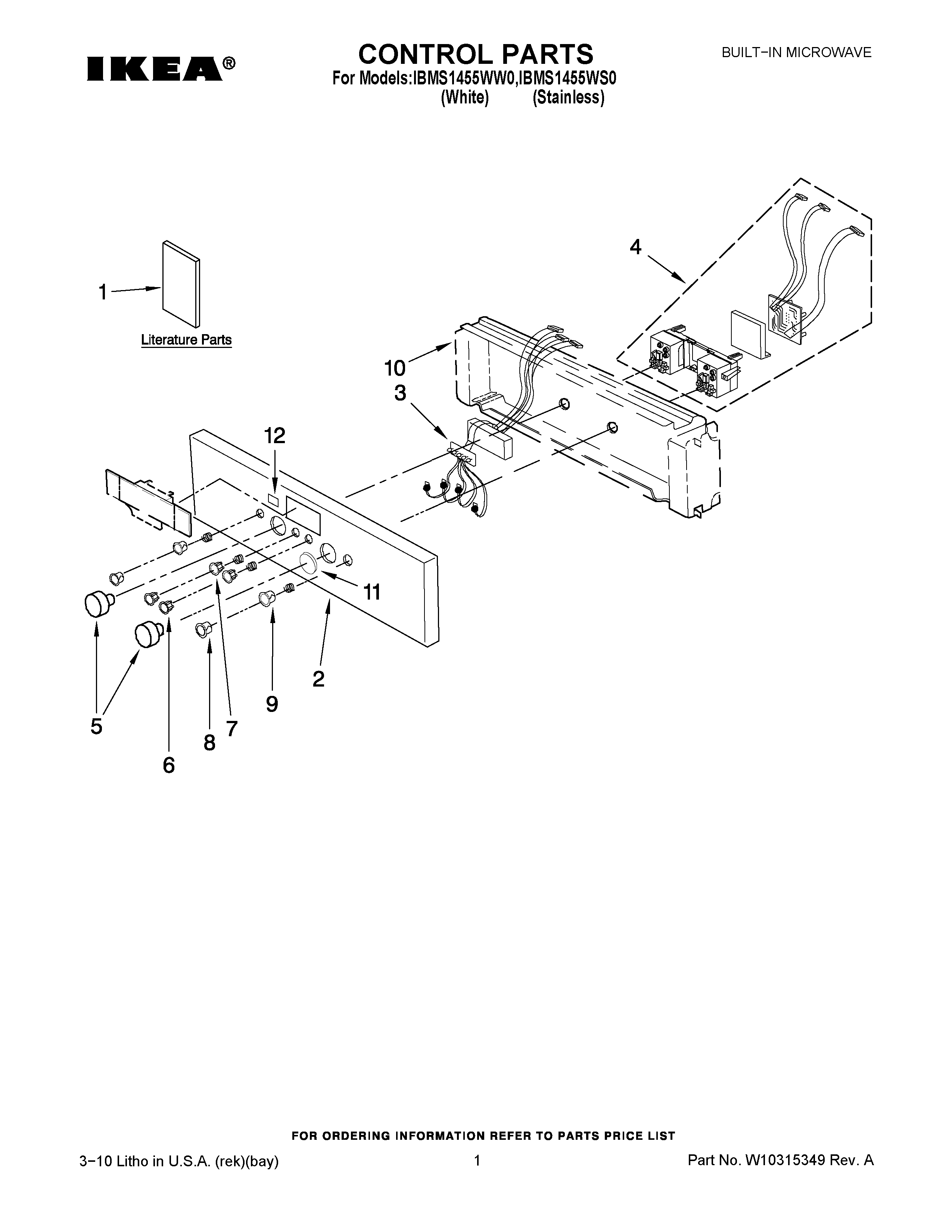

IBMS1455WS0 01 – CONTROL PARTS

Products

Position	Product
1	GUIDE-QUICK REFERENCE
1	Tech Sheet
1	Cook Guide Label
1	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIONS
2	Panel, Control (White)
2	Panel, Control (Stainless)
3	BOARD, DISPLAY
4	W10770413-includeCORE Whirlpool W10770413 Microwave Electronic Control Board + Core
5	W10251251 Whirlpool Microwave Knob
8	W11086664 Whirlpool Microwave Button
9	W11116990 Whirlpool Microwave Button Holder
10	W10696315 Whirlpool Microwave Control Bracket
11	Ring, Clamp
12	W10251401 Whirlpool Microwave Temperature Switch
