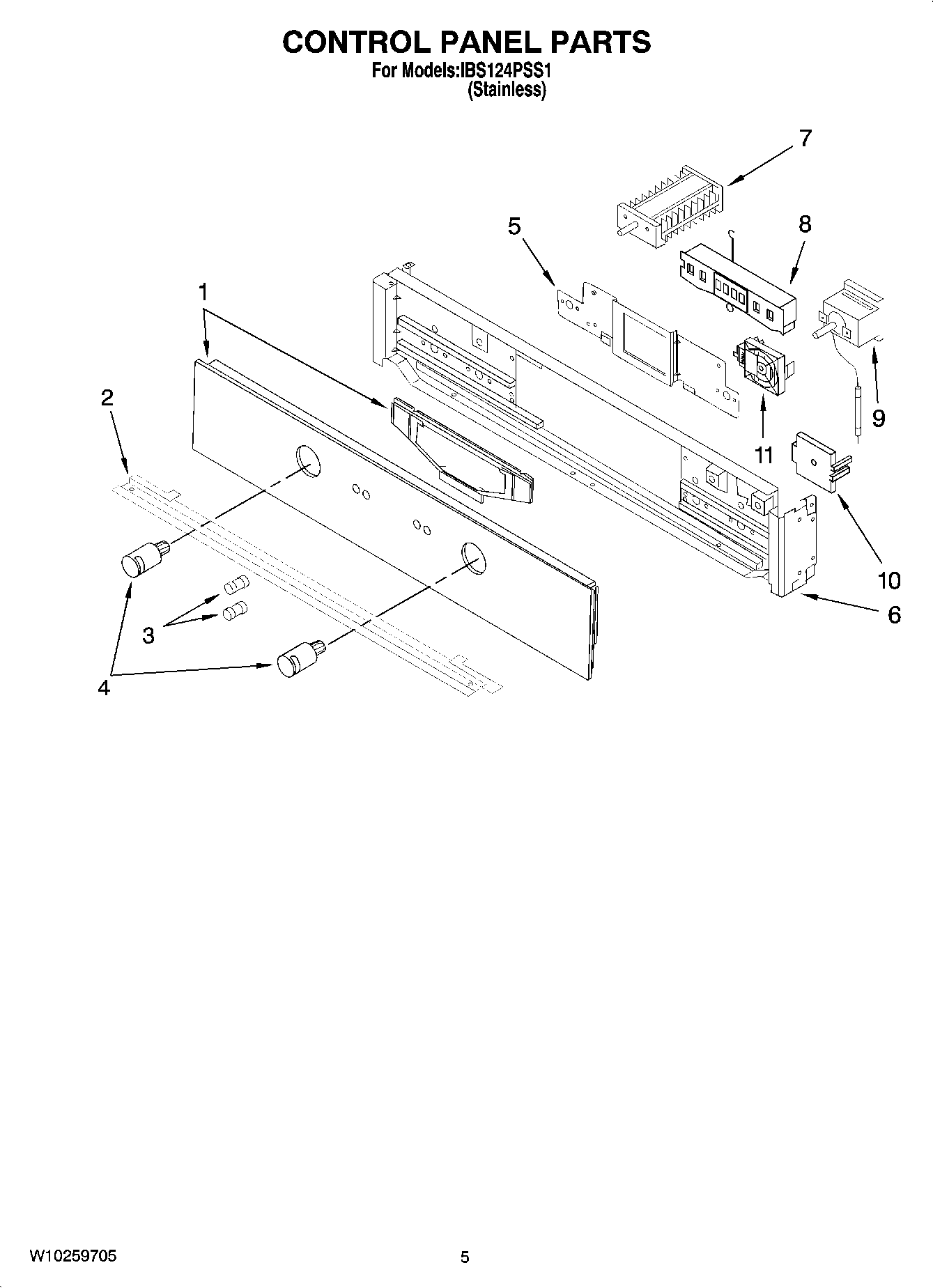

IBS124PSS1 04 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	Panel, Control (Stainless)
2	Trim, Lower
3	Button, Push (2)
4	Knob (LH)
4	Knob (RH)
5	Bracket, Display (Not Serviced)
6	Bracket (Not Serviced)
7	Switch, Oven
8	Control, Oven
9	Thermostat (Oven)
9	Thermostat (Broil)
10	Regulator
11	Encoder
