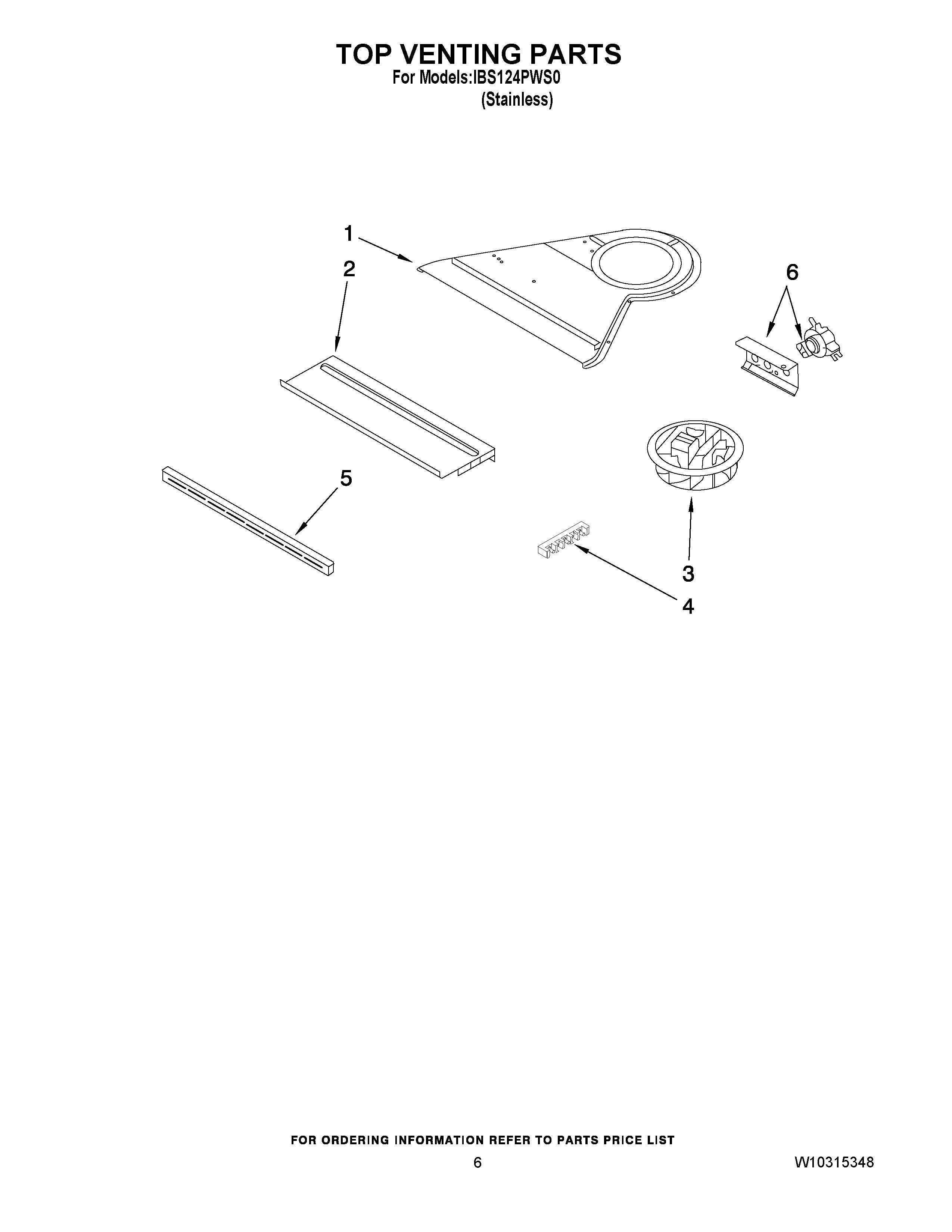

IBS124PWS0 05 – TOP VENTING PARTS
Products
| Position | Product |
|---|---|
| NI | NUT |
| NI | Cable, Grommet |
| 2 | CABINET (NOT A SERVICEABLE PART) |
| 3 | Blower, Fan |
| 4 | Block, Terminal |
| 5 | Vent (Stainless) |
| 6 | Temper, Limiter |
IBS124PWS0 05 – TOP VENTING PARTS
| Position | Product |
|---|---|
| NI | NUT |
| NI | Cable, Grommet |
| 2 | CABINET (NOT A SERVICEABLE PART) |
| 3 | Blower, Fan |
| 4 | Block, Terminal |
| 5 | Vent (Stainless) |
| 6 | Temper, Limiter |
