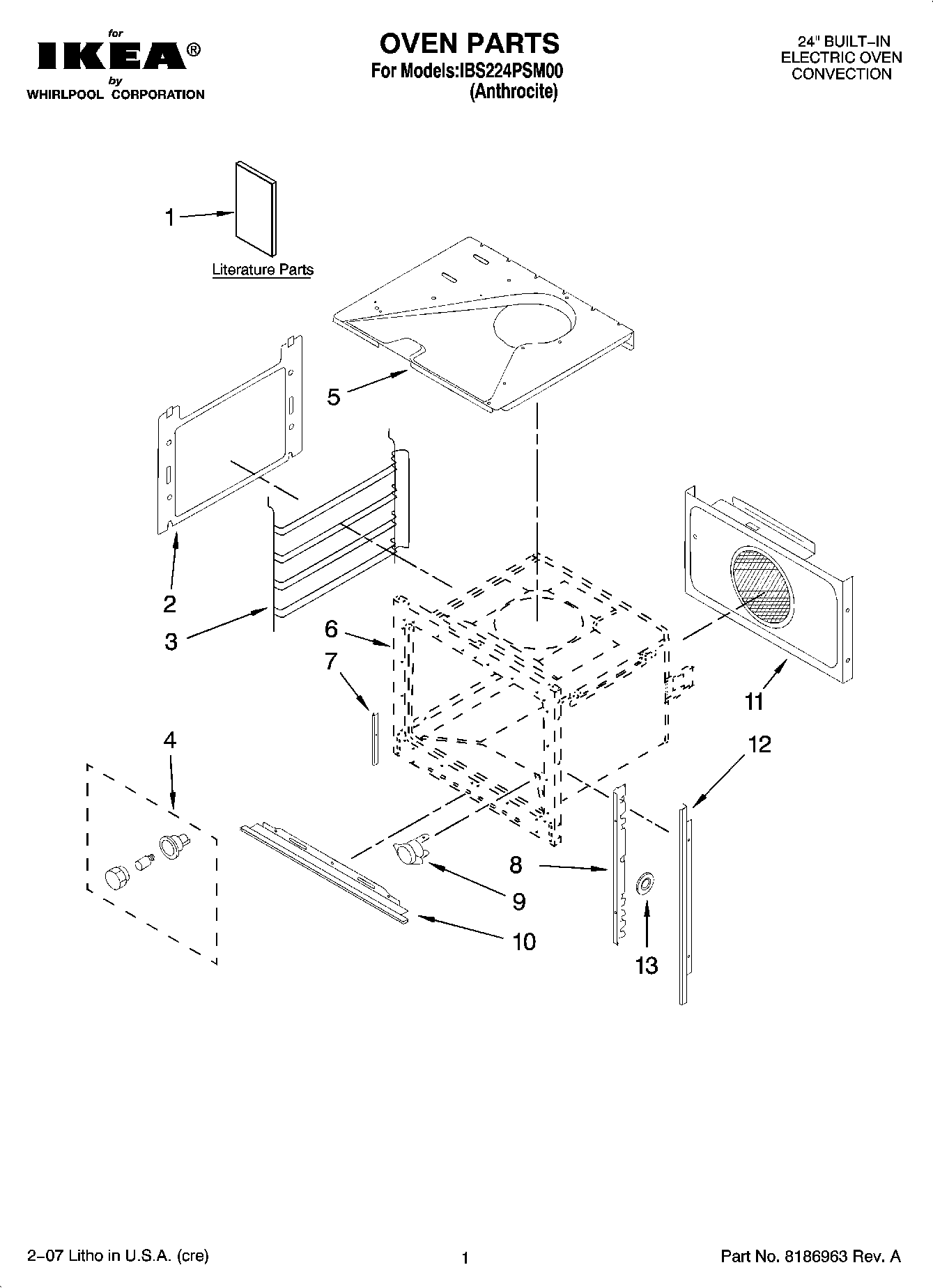

IBS224PSM00 01 – OVEN PARTS

Products

Position	Product
1	Sheet, Tech
1	Use & Care Guide
1	Installation Instructions
2	Panel, Side
3	Support (RH)
3	Support (LH)
4	Assy, Oven Light
5	Top, Chassis (Not Serviced)
6	Liner, Oven (Not Serviced)
7	Cover, Hinge
8	Rail, Side (RH)
8	Rail, Side (LH)
9	Temper, Limiter
9	LIMITER
9	LIMITER
10	Deflector, Vent
11	Panel, Rear
12	Trim
13	SPACER
