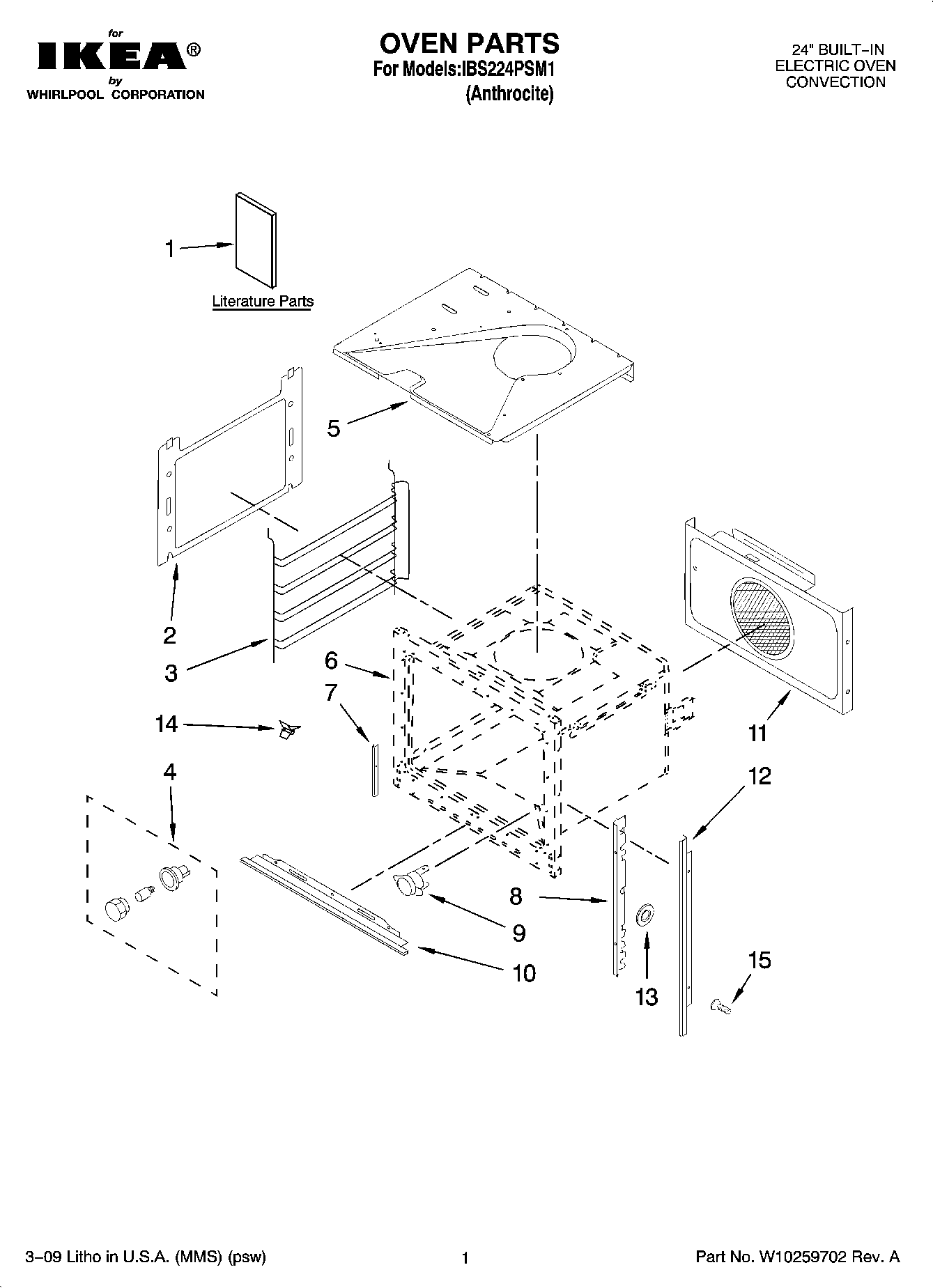

IBS224PSM1 01 – OVEN PARTS

IBS224PSM1 01 – OVEN PARTS

Written by

in

IBS224PSM1 01 – OVEN PARTS

Products

PositionProduct
1Sheet, Tech
1Use & Care Guide
1Installation Instructions
2Panel, Side
3Support (RH)
3Support (LH)
4Assy, Oven Light
5Top, Chassis (Not Serviced)
6Liner, Oven (Not Serviced)
7Cover, Hinge
8Rail, Side (RH)
8Rail, Side (LH)
9Limiter
9Temper, Limiter
9LIMITER
9LIMITER
10Deflector, Vent
11Panel, Rear
12Trim
13Spacer
14Clamp, Therm.
15Screw, Set
