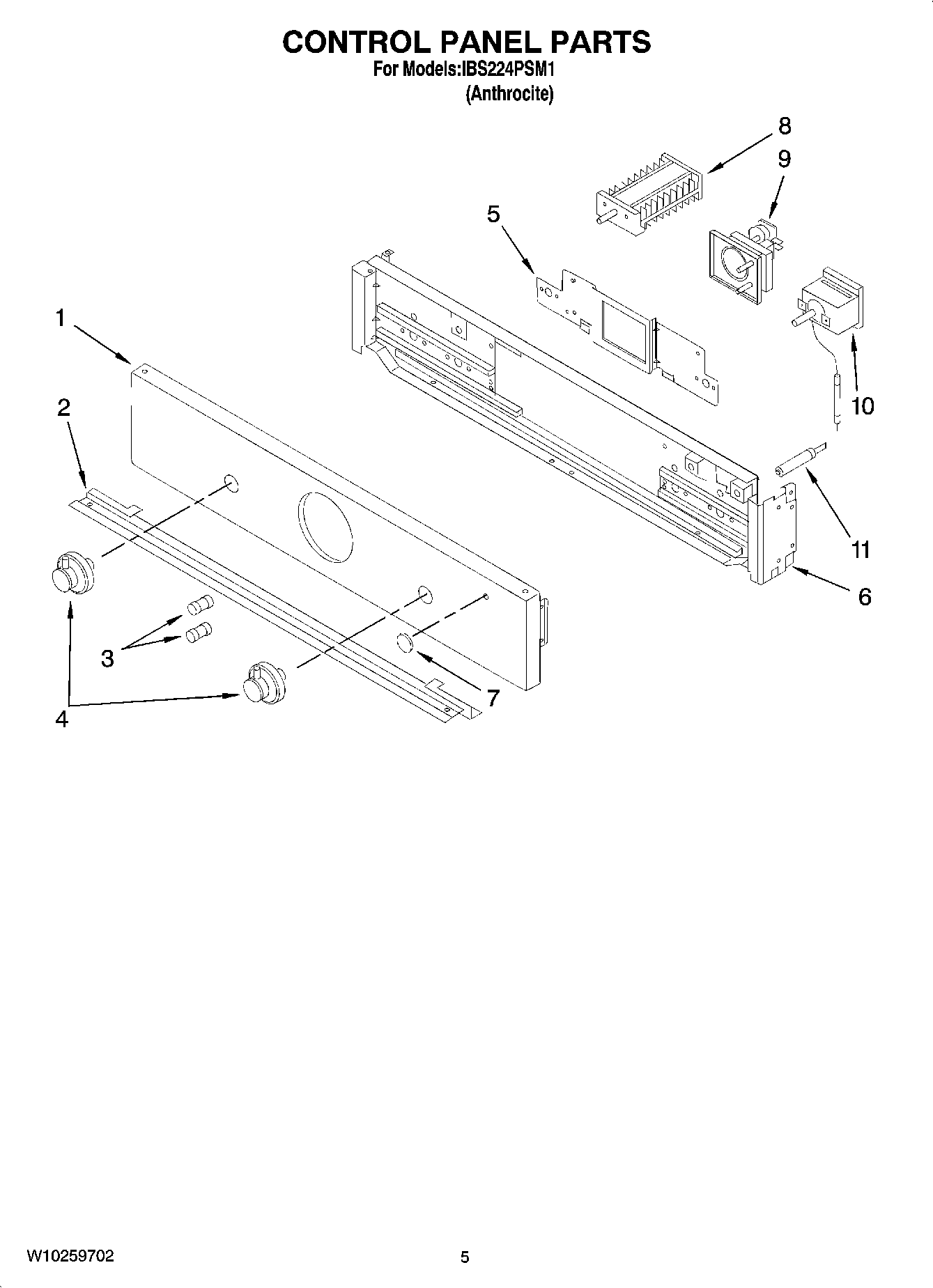

IBS224PSM1 04 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control
2	Trim, Lower
3	Button, Push (2)
4	Knob
5	Bracket, Display (Not Serviced)
6	Bracket (Not Serviced)
7	Lens
8	Switch, Oven
9	Clock
10	Thermostat (Broil)
10	Thermostat (Oven)
11	Lamp, Pilot
