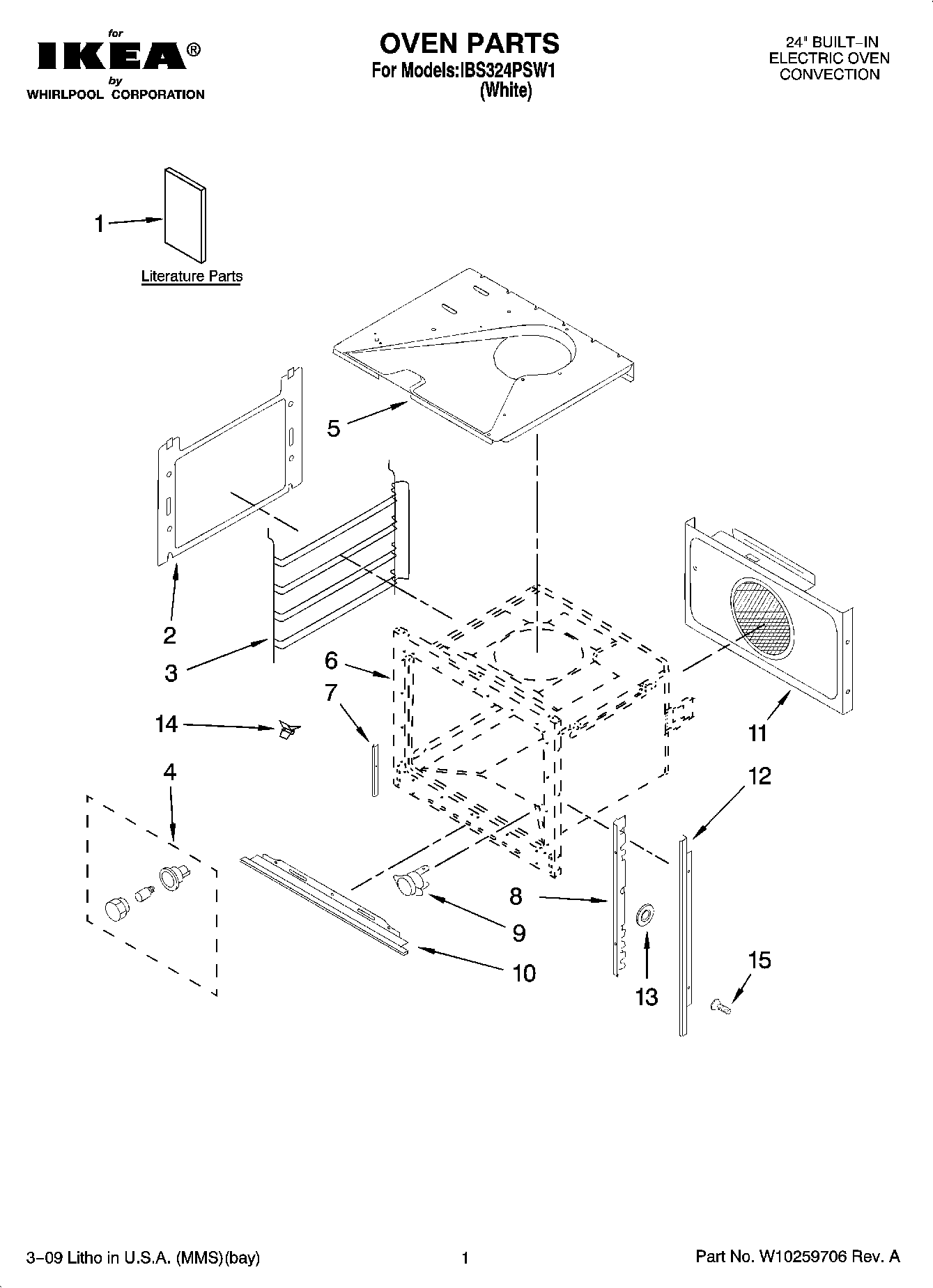

IBS324PSW1 01 – OVEN PARTS

Products

PositionProduct
1Sheet, Tech
1Installation Instructions
1Use & Care Guide
2Panel, Side
3Support (RH)
3Support (LH)
4Assy, Oven Light
5Top, Chassis (Not Serviced)
6Liner, Oven (Not Serviced)
7Cover, Hinge
8Rail, Side (RH)
8Rail, Side (LH)
9Limiter
9Temper, Limiter
9LIMITER
10Deflector, Vent
11Panel, Rear
12Trim
13Spacer
14Clamp, Therm.
15Screw, Set
