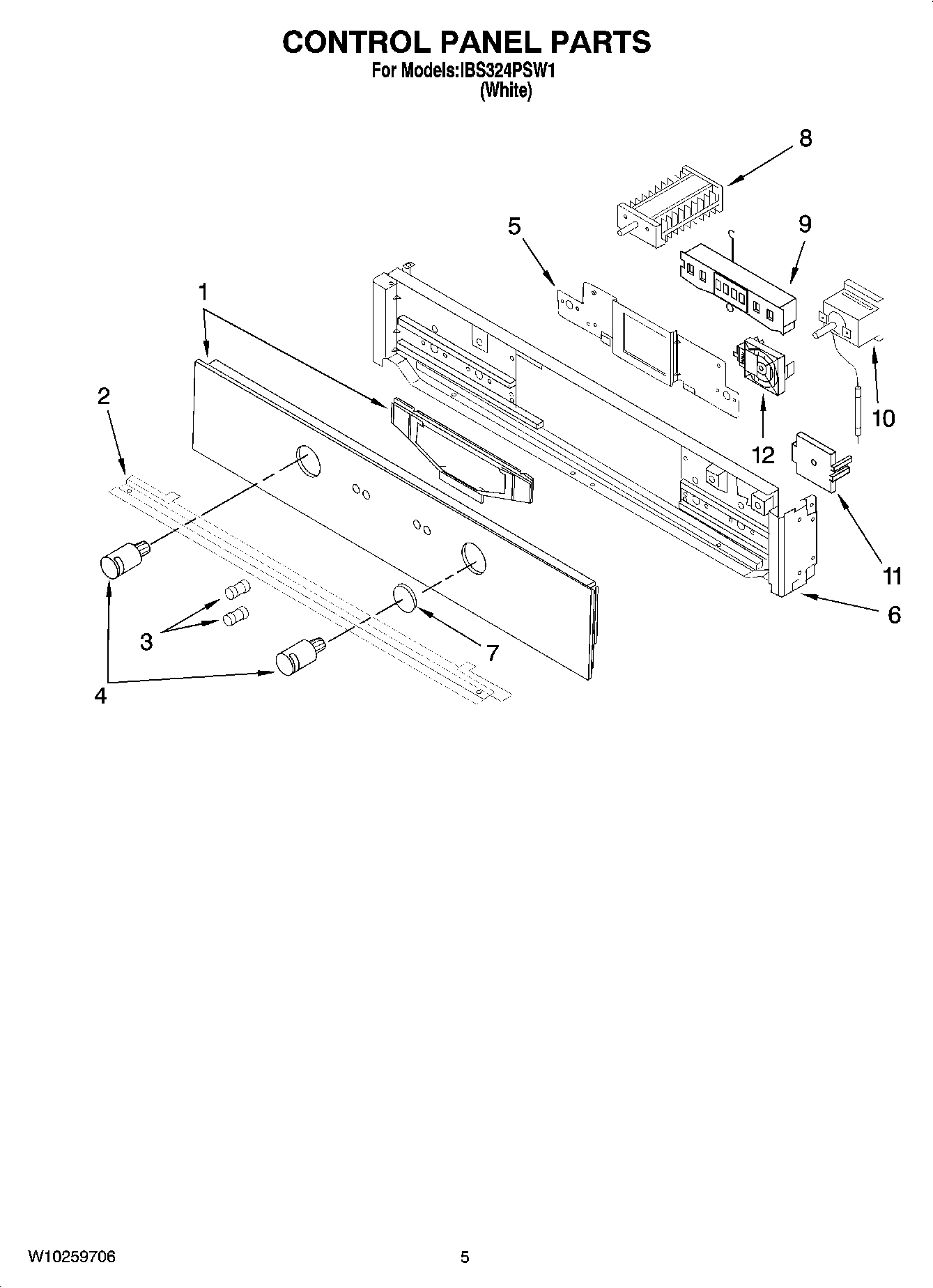

IBS324PSW1 04 – CONTROL PANEL PARTS
Written by
in
IBS324PSW1 04 – CONTROL PANEL PARTS
Products
Position
Product
1
Panel, Control
2
Trim, Lower
3
Button, Push (2)
4
Knob (LH)
4
Knob (RH)
5
Bracket, Display (Not Serviced)
6
Bracket (Not Serviced)
7
Ring, Clamp
8
Switch, Oven
9
Control, Oven
10
Thermostat (Oven)
10
Thermostat (Broil)
11
Regulator
12
Encoder
←
