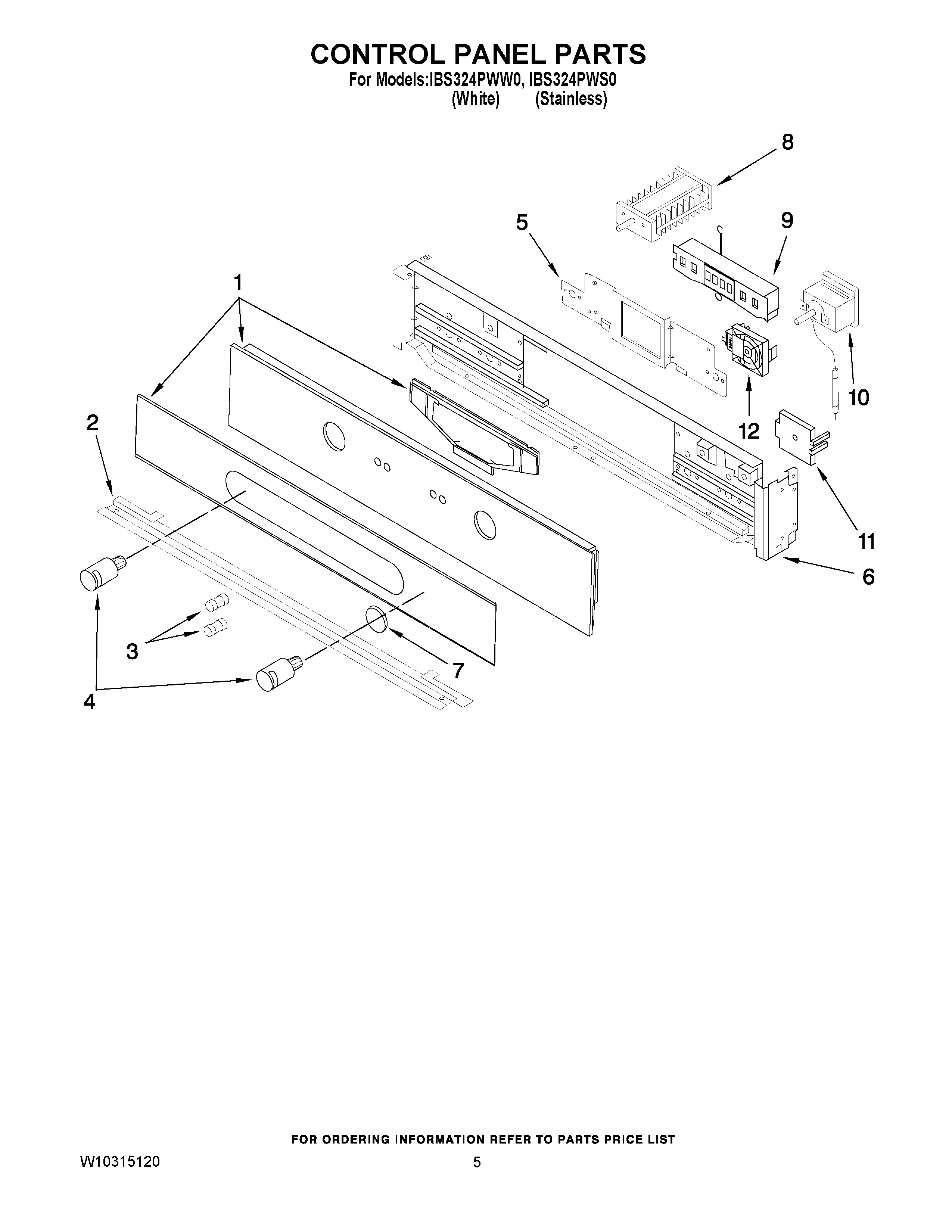

IBS324PWS0 04 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	Panel, Control (White)
1	Panel, Control (Stainless)
2	Trim, Lower
3	BUTTON, PUSH (2) (WHITE)
3	Button, Push (2)
4	Knob (RH)
4	W10251251 Whirlpool Microwave Knob
6	CABINET (NOT A SERVICEABLE PART)
7	Ring, Clamp
8	Switch, Oven
9	Control, Oven
10	Thermostat (Oven)
10	Thermostat (Broil)
11	Regulator
12	Encoder
