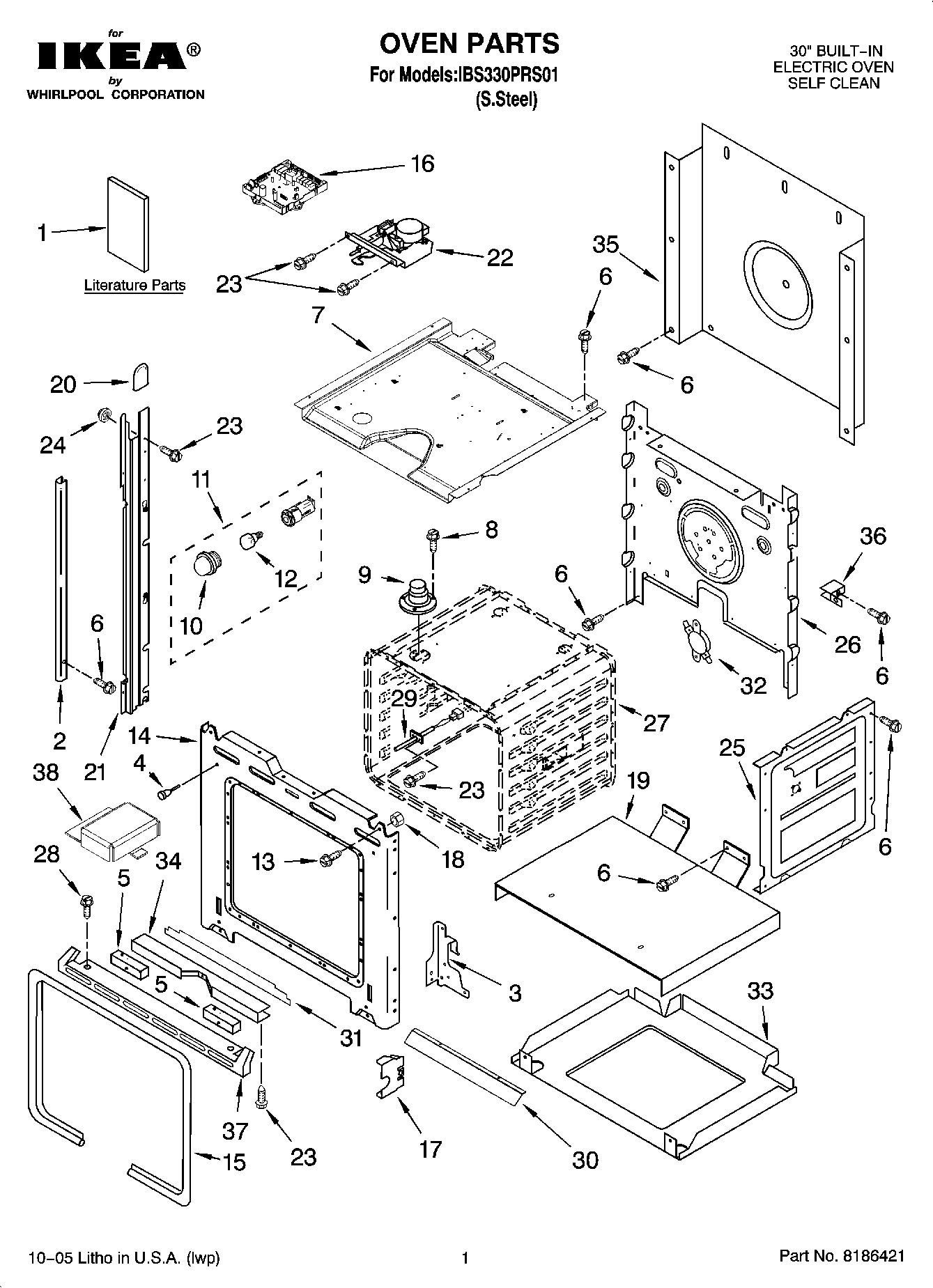

IBS330PRS01 01 – OVEN PARTS

Products

Position	Product
1	Instruction, Installation
1	Tech Sheet
1	Installation/ Undercounter
1	Owners Manual (Sgl/Dbl Ovn Ikea)
2	WPW10144983 Whirlpool Trim
2	W10144984 Whirlpool Trim
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	4448520 Whirlpool Oven Bumper
5	Spacer, Foam
6	WP4449809 Whirlpool Screw
7	Top Chassis
8	SCREW
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Screw
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
16	Control, Taurus2
17	4452152 Whirlpool Oven Mounting Bracket
18	WP4450118 Whirlpool Nut
19	Support, Insulation
20	Cap, Spacer
21	814371 Whirlpool Oven Rail Mount
21	814372 Whirlpool Oven Rail Mount
22	WP9760889 Whirlpool Door Latch
23	WP4449154 Whirlpool Screw
24	WP4448444 Whirlpool Grommet
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	WP3400832 Whirlpool Screw
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	9760677 Whirlpool Oven Vent Deflector
31	Insulation Bottom Vent
32	WP9759243 Whirlpool Thermostat
33	Base, Chassis
34	WP4448933 Whirlpool Retainer
35	WP4451747 Whirlpool Rear Cover
36	WPL 4449845
37	W11684730 Whirlpool Insulation
37	Trim, Bottom (S.Steel)
37	WPL 4450365
37	FOLLOWING PARTS NOT ILLUSTRATED INSULATION
