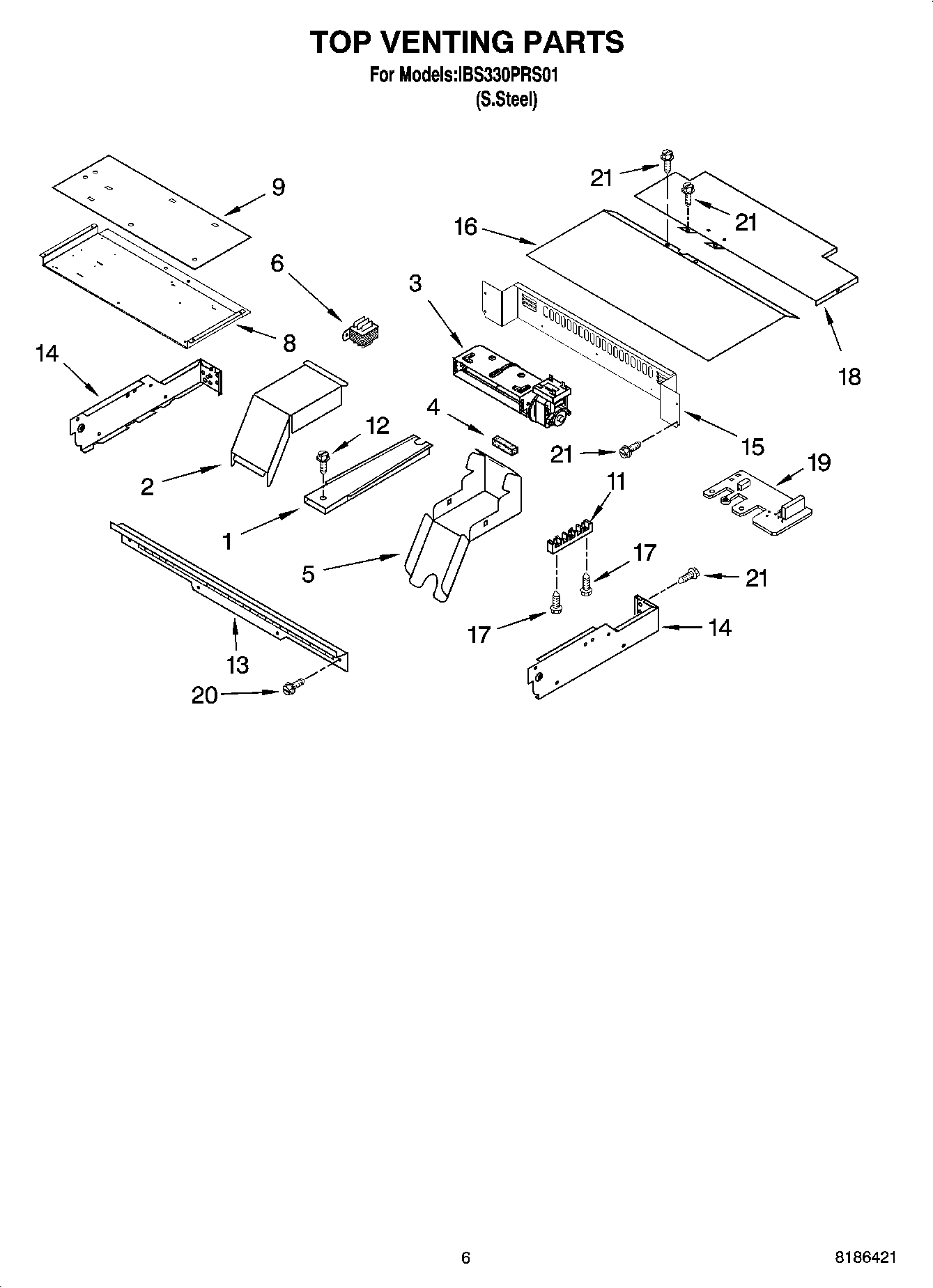

IBS330PRS01 05 – TOP VENTING PARTS, OPTIONAL PARTS

IBS330PRS01 05 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

IBS330PRS01 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
SPLICING WIRES–25FT. L
Wire (12 Ga. 150 c Black)
ADHESIVE
8303867 Whirlpool Oven Wire Harness
8303865 Whirlpool Oven Wire Harness
WPL 591014
261900 Whirlpool Microwave Spray
WPL ARI75222A9
WP4450952 Whirlpool Conduit
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Spacer, Harness
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
WPL ARI75221A2
WP112432 Whirlpool Nut Assembly
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
4448664 Whirlpool Oven Mounting Bracket
4450800 Whirlpool Oven Screw
WPW10339879 Whirlpool Wire Tie
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
814381 Whirlpool Pin
WP4448950 Whirlpool Screw
4452400 Whirlpool Microwave Wire Harness
4451761 Whirlpool Oven Support Bracket
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3W10810687 Whirlpool Blower Assembly
3WP4455352 Whirlpool Mounting Bracket
4W10491987 Whirlpool Foam Seal
54455177 Whirlpool Oven Bottom Elbow
6Transformer, Control
8Mounting Plate
9Insulation
11WP8203546 Whirlpool Terminal Block
12Screw
13Vent, (Control Panel)
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
17Screw
18WP4452367 Whirlpool Top Cover
19WP4451985 Whirlpool Noise Filter Board
20WP4450038 Whirlpool Screw
