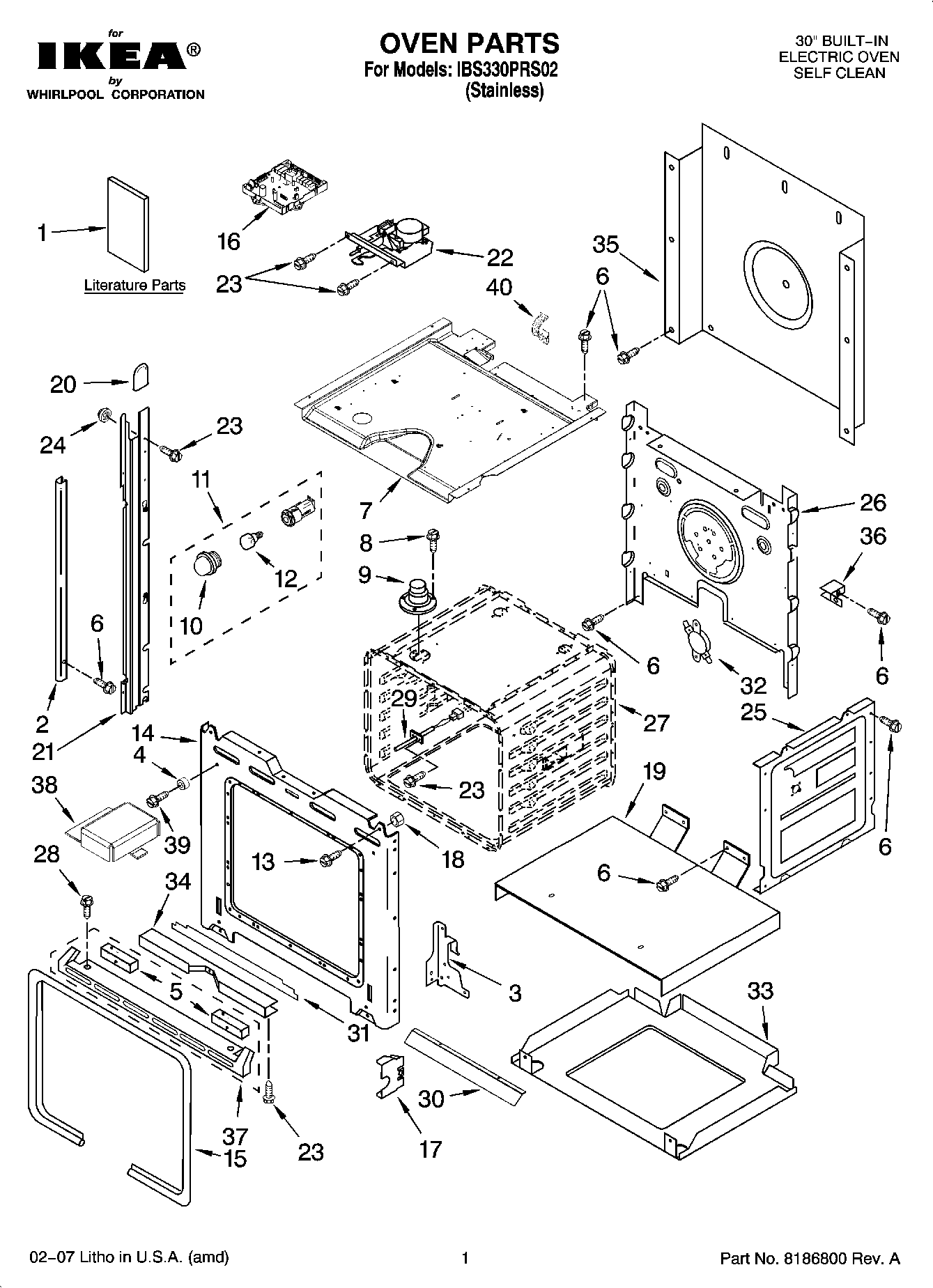

IBS330PRS02 01 – OVEN PARTS

IBS330PRS02 01 – OVEN PARTS

Written by

in

IBS330PRS02 01 – OVEN PARTS

Products

PositionProduct
1Installation/ Undercounter
1Tech Sheet
1Instruction, Installation
1Owners Manual (Sgl/Dbl Oven)
2W10144984 Whirlpool Trim
2WPW10144983 Whirlpool Trim
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5Spacer, Foam
6WP694091 Whirlpool Screw
7Top Chassis
8SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Screw
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
16Control, Taurus
174452152 Whirlpool Oven Mounting Bracket
18WP4450118 Whirlpool Nut
19Support, Insulation
20Cap, Spacer
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
23WP4449154 Whirlpool Screw
24WP4448444 Whirlpool Grommet
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP3400805 Whirlpool Screw Assembly
29WPW10131825 Whirlpool Oven Temperature Sensor
309760677 Whirlpool Oven Vent Deflector
31Insulation Bottom Vent
32WP9759243 Whirlpool Thermostat
33Base, Chassis
34WP4448933 Whirlpool Retainer
35WP4451747 Whirlpool Rear Cover
36WPL 4449845
37WPL 4455147
388285593 Whirlpool Oven Wire Cover
39WP4450038 Whirlpool Screw
408528351 Whirlpool Clip
40W11684730 Whirlpool Insulation
40WPL 4450365
40FOLLOWING PARTS NOT ILLUSTRATED INSULATION
