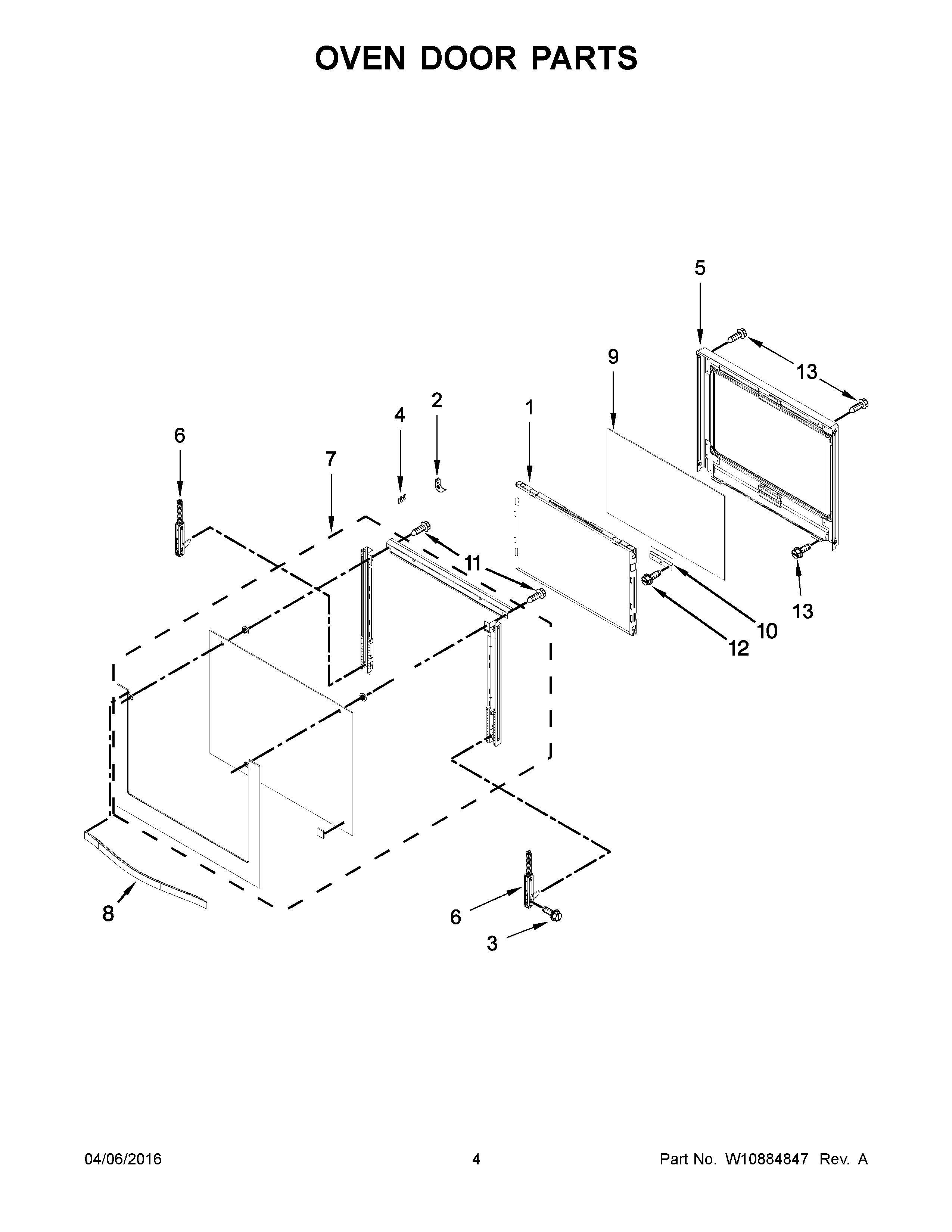

IBS350DS01 03 – OVEN DOOR PARTS

IBS350DS01 03 – OVEN DOOR PARTS

Written by

in

IBS350DS01 03 – OVEN DOOR PARTS

Products

PositionProduct
1WPW10347596 Whirlpool Stove Middle Door Glass Panel
2W10812024 Whirlpool Glass Bracket
3WP3196183 Whirlpool Screw
4W11025615 Whirlpool Glass Bracket
5WPW10709147 Whirlpool Glass Frame
6W10825778 Whirlpool Whirlpool Door Hinge
8W10675924 Whirlpool Door Handle
9W10827059 Whirlpool Oven Microwave Door Glass Assembly
10W10853628 Whirlpool Oven Range Glass Bracket
11WP488130 Whirlpool Air Conditioner Nut
12SCREW
13SCREW (BLACK)
