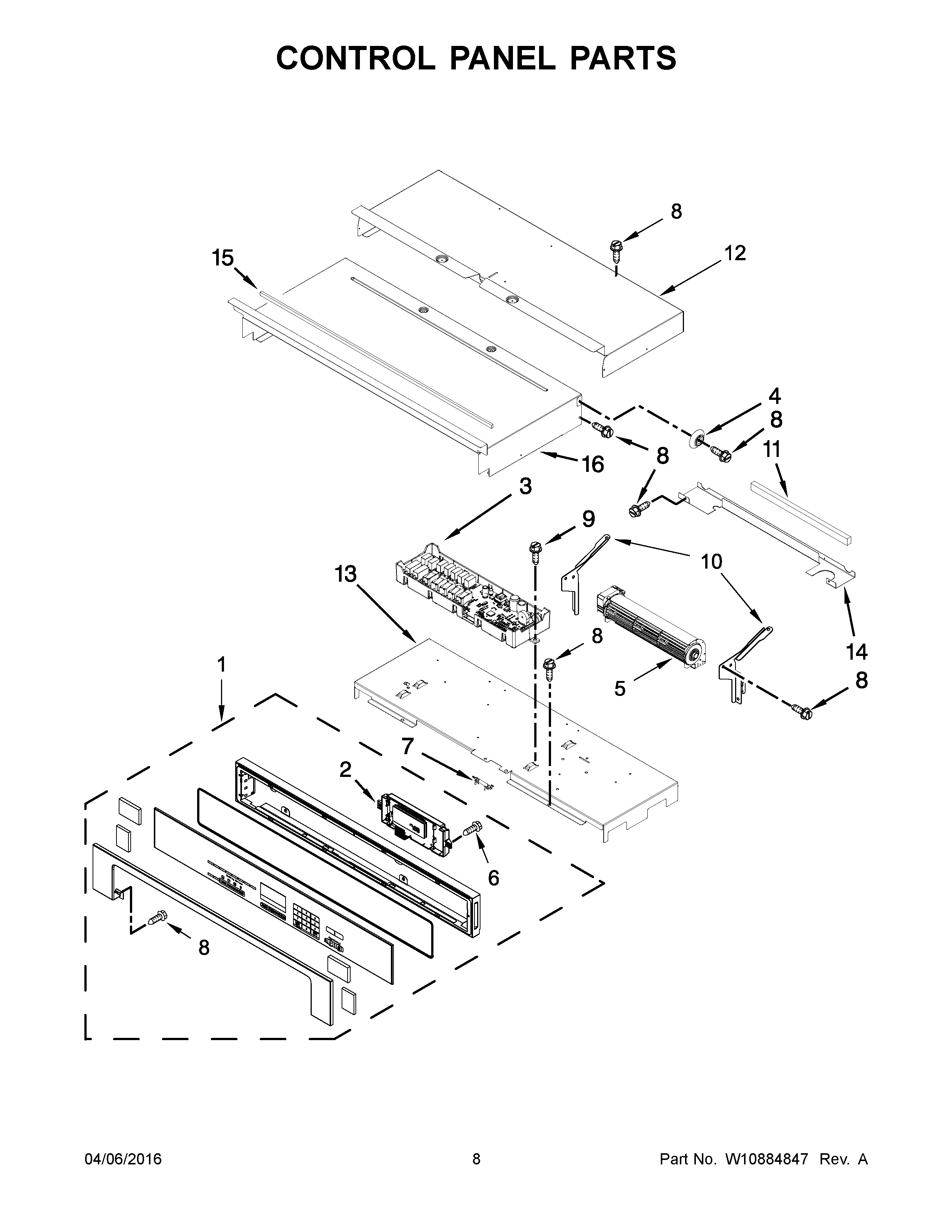

IBS350DS01 05 – CONTROL PANEL PARTS

IBS350DS01 05 – CONTROL PANEL PARTS

Written by

in

IBS350DS01 05 – CONTROL PANEL PARTS

Products

PositionProduct
1W11255167 Whirlpool Console + Core
2W10803991 Whirlpool Electronic Control Board + Core
3W10859300-includeCORE Whirlpool W10859300 Electronic Control Board
4W10618105 Whirlpool Spacer
5WPW10641253 Whirlpool Blower Motor
6SCREW
7WPW10545255 Whirlpool Thermal Fuse
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12W10904156 Whirlpool Cabinet Top
13W10347650 Whirlpool Mounting Bracket
14W10655465 Whirlpool Mounting Bracket
15WPW10657548 Whirlpool Foam Seal
16W10318192 Whirlpool Cabinet Top
