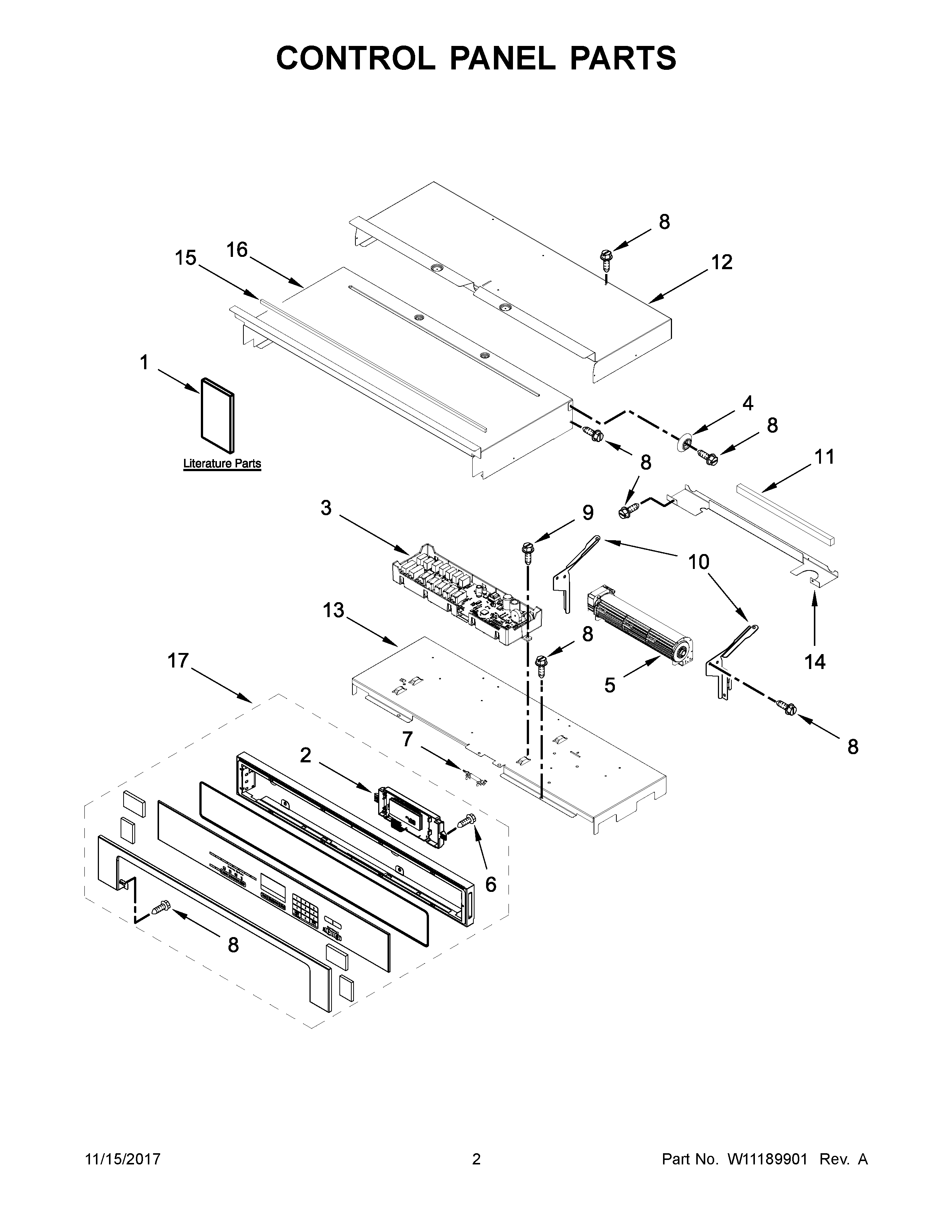

IBS350DS02 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11688731 Whirlpool Insulation
NIW11684789 Whirlpool Insulation
NIW10760039 Whirlpool Hardware
NIW11157775 Whirlpool Wire Harness
NI4452400 Whirlpool Microwave Wire Harness
NIW11136114 Whirlpool Wire Harness
NIW10655464 Whirlpool Bracket
NIW10487999 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW11132989 Whirlpool Wire Harness
1AINSTRUCTIONS, INSTALLATION (IKEA)
1BINSTRUCTIONS, UNDERCOUNTER INSTALL
1CGUIDE, USE & CARE
1DSHEET, TECH
1INSTRUCTIONS, INSTALLATION
2W10803991 Whirlpool Electronic Control Board + Core
3W10859300-includeCORE Whirlpool W10859300 Electronic Control Board
4W10618105 Whirlpool Spacer
5W11245567 Whirlpool Blower Assembly
6SCREW
7WPW10545255 Whirlpool Thermal Fuse
8SCREW
9SCREW
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12W10904156 Whirlpool Cabinet Top
13W10347650 Whirlpool Mounting Bracket
14W10655465 Whirlpool Mounting Bracket
15WPW10657548 Whirlpool Foam Seal
16W10318192 Whirlpool Cabinet Top
17W11255167 Whirlpool Console + Core
