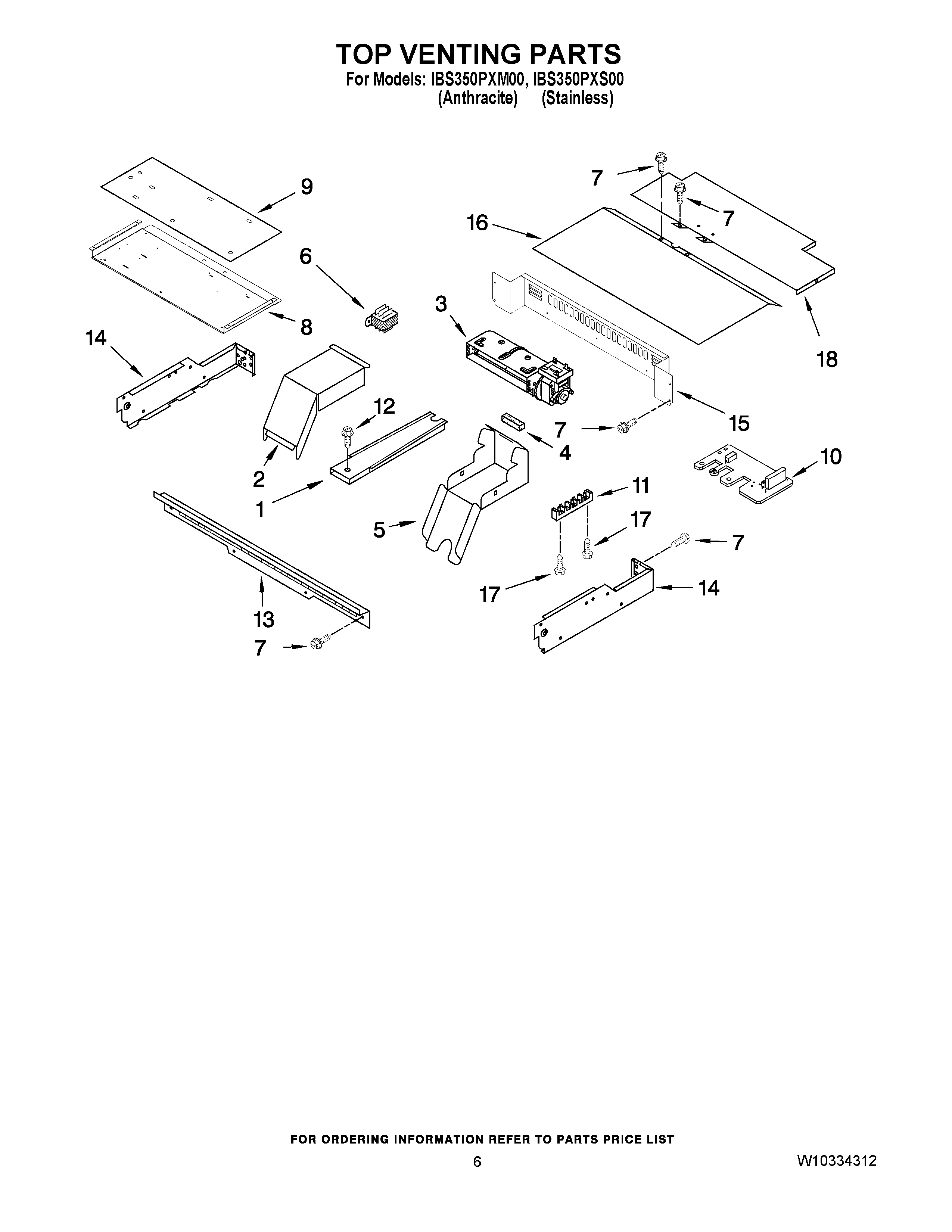

IBS350PXM00 05 – TOP VENTING PARTS

IBS350PXM00 05 – TOP VENTING PARTS

Written by

in

IBS350PXM00 05 – TOP VENTING PARTS

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3WP4455352 Whirlpool Mounting Bracket
3W10810687 Whirlpool Blower Assembly
4W10491987 Whirlpool Foam Seal
54455177 Whirlpool Oven Bottom Elbow
6Transformer
8Mounting Plate
9Insulation
10WP4451985 Whirlpool Noise Filter Board
11BLOCK, TERMINAL
12Screw
138303497 Whirlpool Oven Vent Control
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
15WP4449809 Whirlpool Screw
16WP4450551 Whirlpool Top Cabinet
17Screw
18WP4452367 Whirlpool Top Cover
