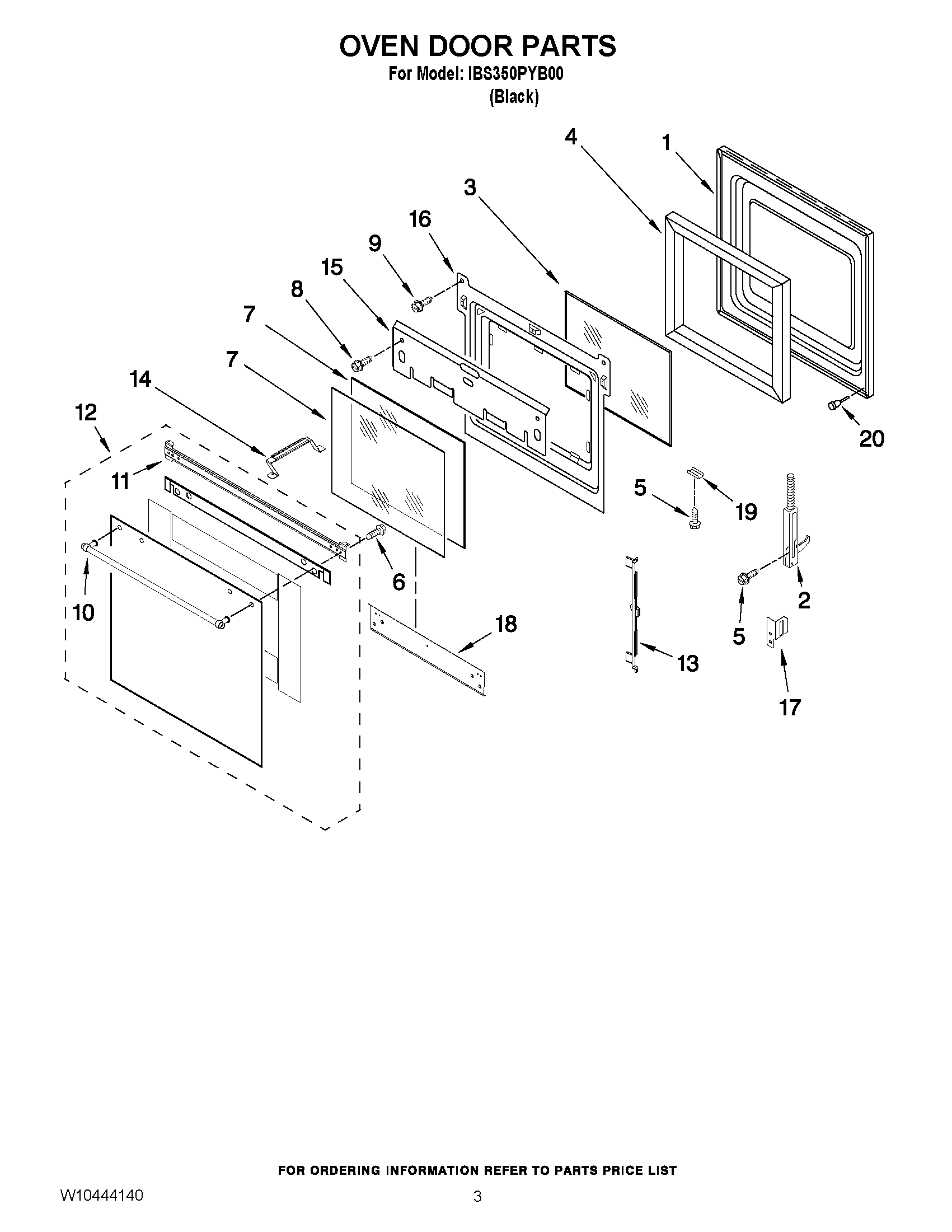

IBS350PYB00 02 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760577 Whirlpool Oven Right Door Hinge
2	WP9760578 Whirlpool Oven Left Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4449743 Whirlpool Screw
6	Screw
7	WP9759225 Whirlpool Inner Door Glass
8	WPW10292297 Whirlpool Screw
9	WP3400832 Whirlpool Screw
10	Handle, Door
11	Bracket, Handle
12	ASSEMBLY, DOOR GLASS
13	WP9759229 Whirlpool Mounting Bracket
14	Bracket (3rd Glsss)
15	SHIELD, HEAT TOP
16	WP4457132 Whirlpool Retainer
17	COVER,HINGE (RIGHT)
17	COVER,HINGE (LEFT)
18	4457114 Whirlpool Oven Heat Shield
19	RETAINER, GLASS CLIP
20	4448520 Whirlpool Oven Bumper
