IBS350PYB01 02 – OVEN PARTS

IBS350PYB01 02 – OVEN PARTS

Written by

in

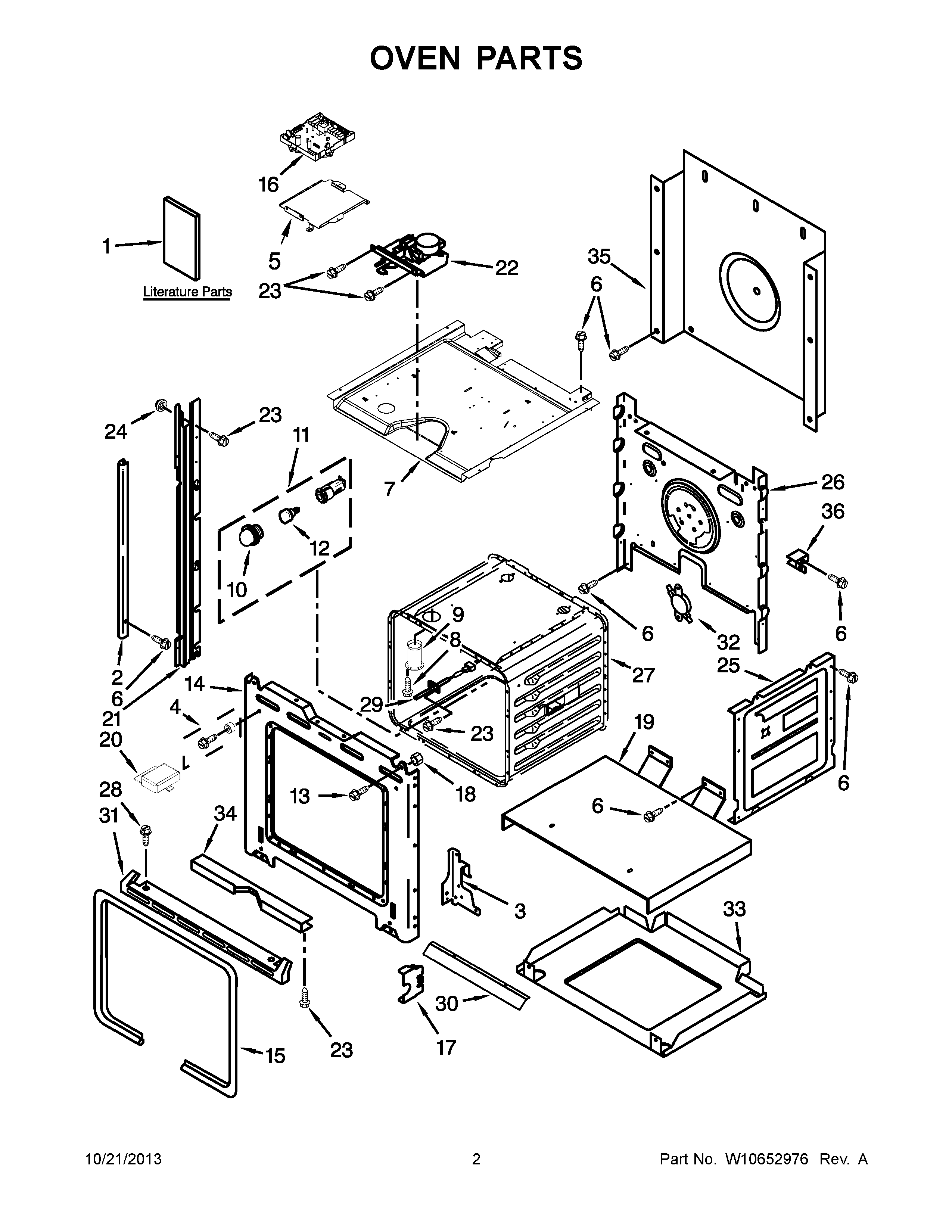

IBS350PYB01 02 – OVEN PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11684730 Whirlpool Insulation
NIWPL 4450365
1Tech Sheet
1OWNERS MANUAL
1Instruction, Installation
1INSTALLATION/UNDERCOUNTER
2TRIM, SIDE LEFT (BLACK)
2TRIM, SIDE RIGHT (BLACK)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5BRACKET, CONTROL
6SCREW
7Top Chassis
8Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Screw
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
16CONTROL, TAURUS
174452152 Whirlpool Oven Mounting Bracket
18WP4450118 Whirlpool Nut
19Support, Insulation
208285593 Whirlpool Oven Wire Cover
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
22WPW10195934 Whirlpool Door Latch
23WP4449154 Whirlpool Screw
24WP4448444 Whirlpool Grommet
25W10782197 Whirlpool Side Panel
26Back, Chassis
28WP3400832 Whirlpool Screw
29WPW10131825 Whirlpool Oven Temperature Sensor
309760677 Whirlpool Oven Vent Deflector
31TRIM-BOTTOM VENT
32WP9759243 Whirlpool Thermostat
34WP4448933 Whirlpool Retainer
35WP4451747 Whirlpool Rear Cover
36WPL 4449845
