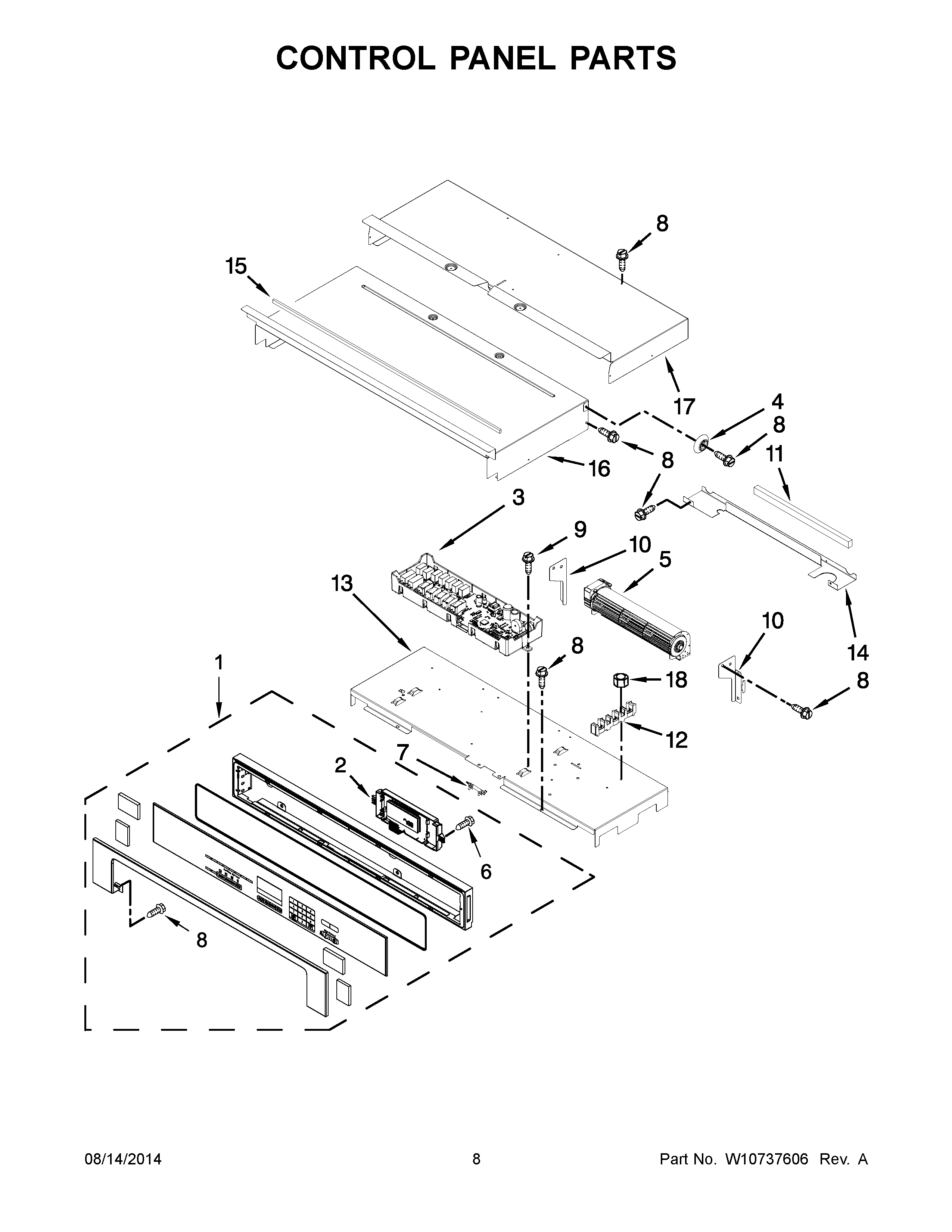

IBS550DS00 05 – CONTROL PANEL PARTS

IBS550DS00 05 – CONTROL PANEL PARTS

Written by

in

IBS550DS00 05 – CONTROL PANEL PARTS

Products

PositionProduct
1W10863319 Whirlpool Control Panel
2W10803991 Whirlpool Electronic Control Board + Core
3WPW10695609-includeCORE Whirlpool WPW10695609 Washer Electronic Control Board + Core
4W10363824 Whirlpool Spacer
5WPW10641253 Whirlpool Blower Motor
6SCREW
7WPW10545255 Whirlpool Thermal Fuse
8SCREW
9SCREW
10AW10283078 Whirlpool Mounting Bracket
10BRACKET, BLOWER LEFT
11W10491987 Whirlpool Foam Seal
12BLOCK, TERMINAL
13W10347650 Whirlpool Mounting Bracket
14W10509164 Whirlpool Mounting Bracket
15WPW10657548 Whirlpool Foam Seal
16W10318192 Whirlpool Cabinet Top
17W10904156 Whirlpool Cabinet Top
18Nut
