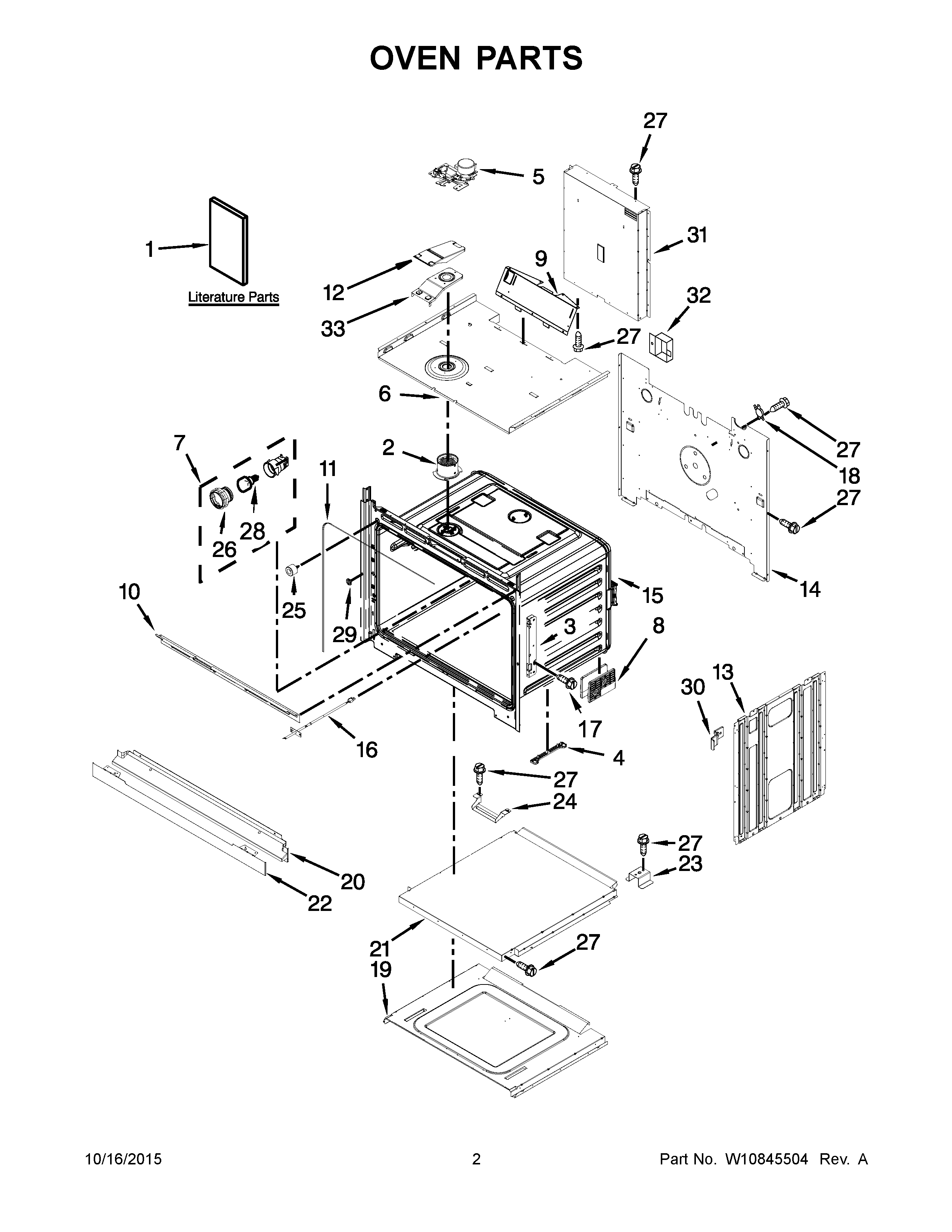

IBS550DS01 02 – OVEN PARTS

Products

Position	Product
NI	W10655464 Whirlpool Bracket
NI	W10573327 Whirlpool Wire Harness
NI	WP4450952 Whirlpool Conduit
NI	W11157775 Whirlpool Wire Harness
NI	W11684789 Whirlpool Insulation
NI	HARNESS, MAIN
NI	W11688731 Whirlpool Insulation
NI	4452400 Whirlpool Microwave Wire Harness
NI	W10487999 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
NI	4448664 Whirlpool Oven Mounting Bracket
NI	4450800 Whirlpool Oven Screw
1B	INSTRUCTIONS, UNDERCOUNTER INSTALL
1A	INSTRUCTIONS, INSTALLATION
1C	SHEET, TECH
1	GUIDE, USE & CARE
2	W11240525 Whirlpool Vent Tube
3	W11613828 Whirlpool Hinge Receptacle
4	W11240831 Whirlpool Spacer
5	W10883049 Whirlpool Door Latch
6	TOP, CHASSIS
7	WPW10734063 Whirlpool Indicator Light
8	FOOT, BASE
9	W10904163 Whirlpool Vent Deflector
10	VENT, TOP 30``
11	W11623080 Whirlpool Gasket
12	W10616810 Whirlpool Exhaust Cover
13	SIDE, CHASSIS
14	W10813703 Whirlpool Rear Cover
16	W10859573 Whirlpool Range Oven Temperature Sensor
17	WPW10254050 Whirlpool Screw
18	WP4449751 Whirlpool Range Oven Thermostat Fix
19	W11238787 Whirlpool Manifold Pipe
20	WPW10351279 Whirlpool Oven Vent
21	WPW10283008 Whirlpool Access Cover
22	WPW10327377 Whirlpool Trim Kit
23	W10213759 Whirlpool Support
24	W10351308 Whirlpool Support Bracket
25	WPW10351278 Whirlpool Bumper
26	WPW10412722 Whirlpool Light Lens
27	SCREW
28	WPW10412711 Whirlpool Light Bulb
29	W10759525 Whirlpool Grommet
30	W11376811 Whirlpool Spacer Assembly
31	W10318196 Whirlpool BA Chassis
32	8285593 Whirlpool Oven Wire Cover
33	W10616809 Whirlpool Vent Tube
