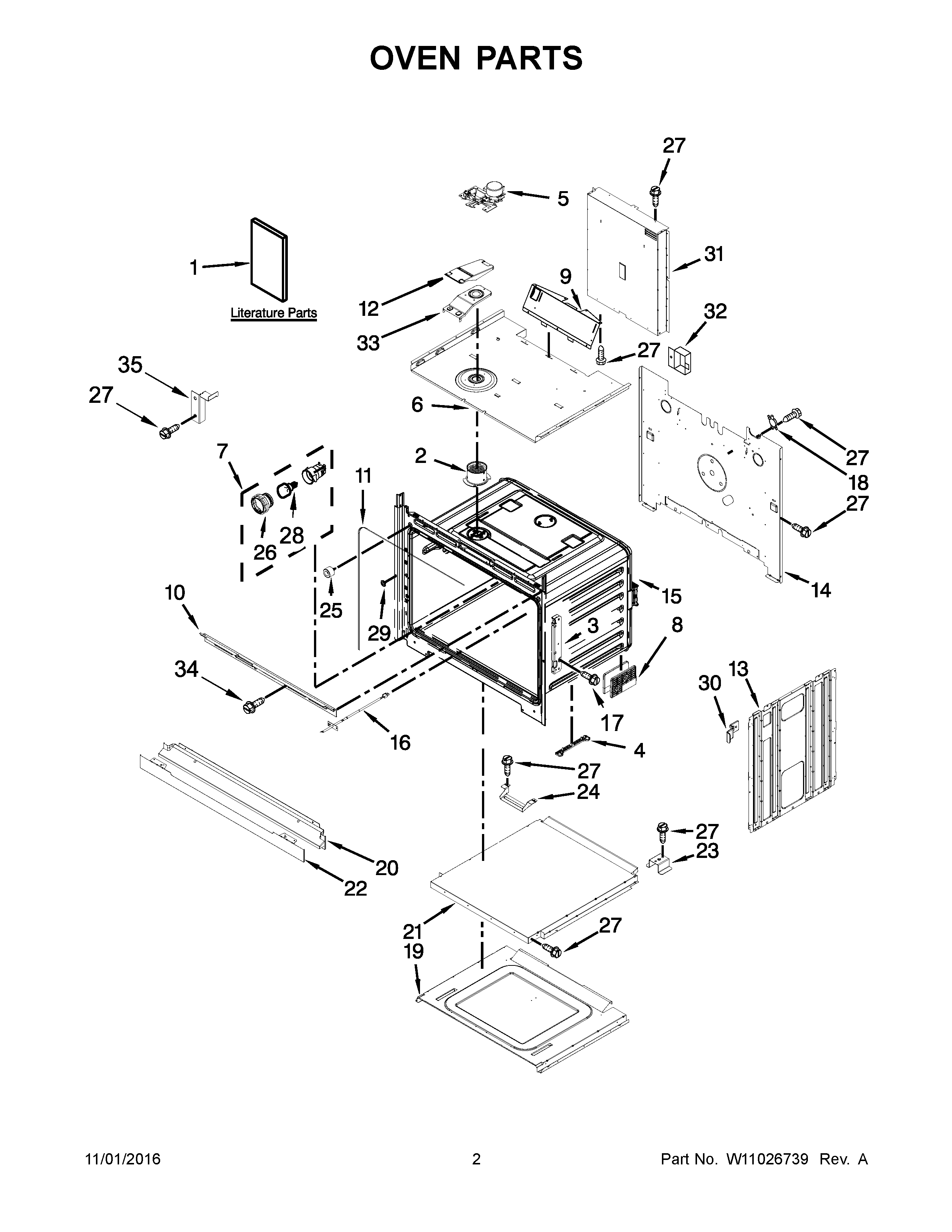

IBS550DS02 02 – OVEN PARTS

Products

PositionProduct
NI4452400 Whirlpool Microwave Wire Harness
NIW11132989 Whirlpool Wire Harness
NIWP4450952 Whirlpool Conduit
NIW11136115 Whirlpool Wire Harness
NIW11684789 Whirlpool Insulation
NIW11688731 Whirlpool Insulation
NIW10655464 Whirlpool Bracket
NIW10487999 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW11157775 Whirlpool Wire Harness
1BINSTRUCTIONS, UNDERCOUNTER INSTALL
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE
1CSHEET, TECH
2W11240525 Whirlpool Vent Tube
3W11613828 Whirlpool Hinge Receptacle
4W11240831 Whirlpool Spacer
5W10883049 Whirlpool Door Latch
6TOP, CHASSIS
7WPW10734063 Whirlpool Indicator Light
8FOOT, BASE
9W10904163 Whirlpool Vent Deflector
10VENT, TOP 30“
11W11623080 Whirlpool Gasket
12W10616810 Whirlpool Exhaust Cover
13SIDE, CHASSIS
14W10813703 Whirlpool Rear Cover
16W10859573 Whirlpool Range Oven Temperature Sensor
17WPW10254050 Whirlpool Screw
18WP4449751 Whirlpool Range Oven Thermostat Fix
19W11238787 Whirlpool Manifold Pipe
20WPW10351279 Whirlpool Oven Vent
21WPW10283008 Whirlpool Access Cover
22WPW10327377 Whirlpool Trim Kit
23W10213759 Whirlpool Support
24W10351308 Whirlpool Support Bracket
25WPW10351278 Whirlpool Bumper
26WPW10412722 Whirlpool Light Lens
27SCREW
28WPW10412711 Whirlpool Light Bulb
29W10759525 Whirlpool Grommet
30W10347649 Whirlpool Spacer
31W10318196 Whirlpool BA Chassis
328285593 Whirlpool Oven Wire Cover
33W10616809 Whirlpool Vent Tube
34W11193480 Whirlpool Screw
35W10863234 Whirlpool Bracket
35AW10863233 Whirlpool Bracket
