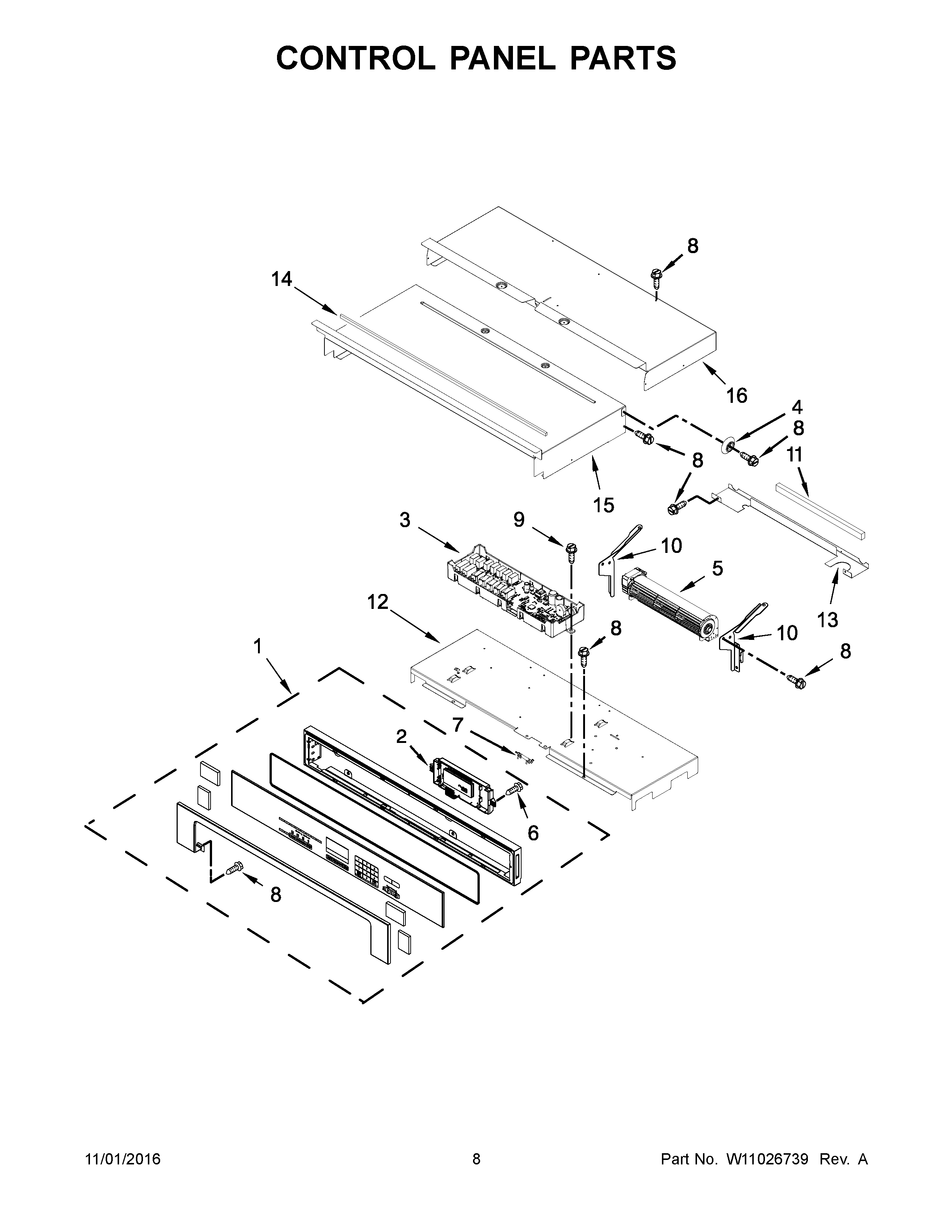

IBS550DS02 05 – CONTROL PANEL PARTS

IBS550DS02 05 – CONTROL PANEL PARTS

Written by

in

IBS550DS02 05 – CONTROL PANEL PARTS

Products

PositionProduct
1W10864193 Whirlpool Control Panel
2W10803991 Whirlpool Electronic Control Board + Core
3W10845828-includeCORE Whirlpool W10845828 Washer Electronic Control Board + Core
4W10618105 Whirlpool Spacer
5W11245567 Whirlpool Blower Assembly
6SCREW
7WPW10545255 Whirlpool Thermal Fuse
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12W10347650 Whirlpool Mounting Bracket
13W10655465 Whirlpool Mounting Bracket
14WPW10657548 Whirlpool Foam Seal
15W10318192 Whirlpool Cabinet Top
16W10904156 Whirlpool Cabinet Top
