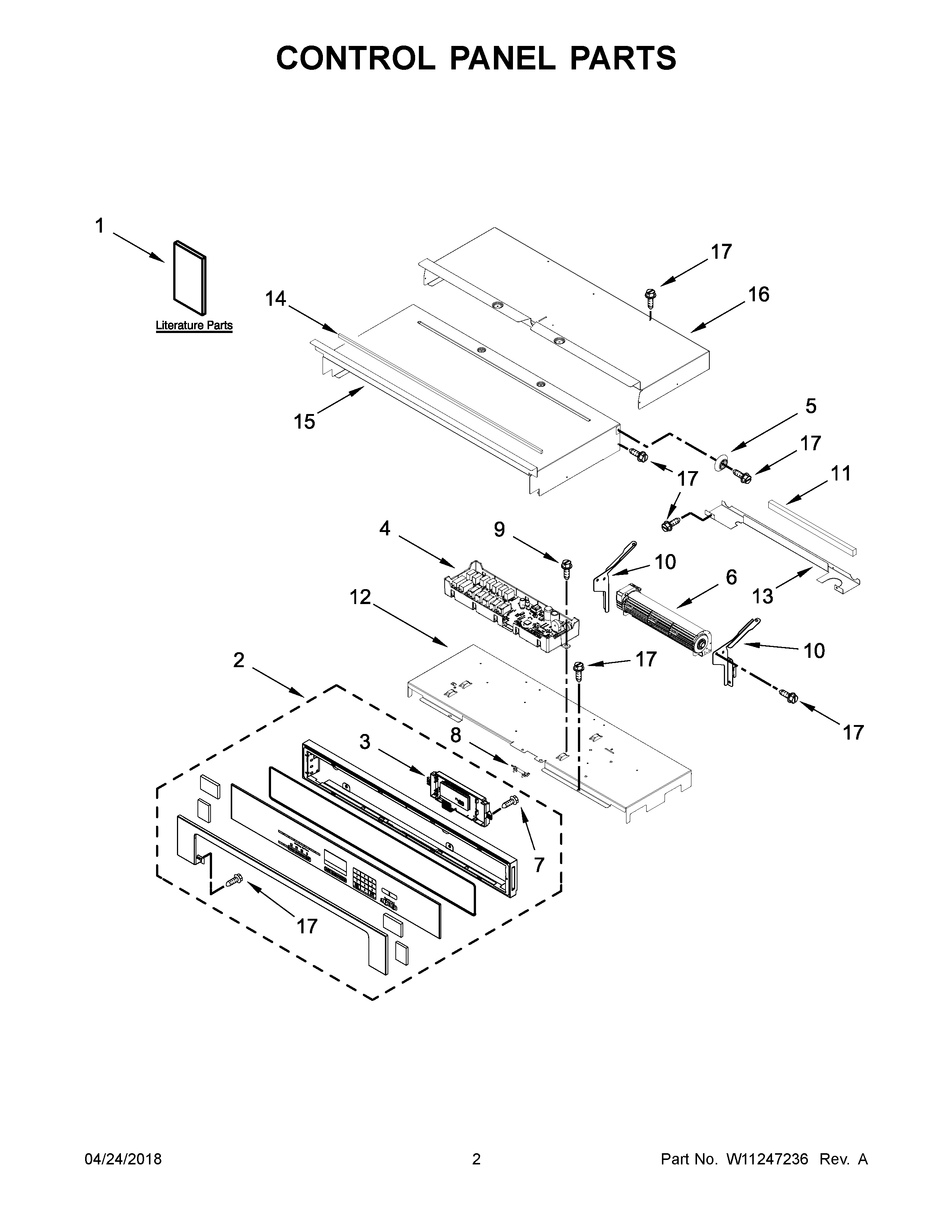

IBS550DS03 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIWP4450952 Whirlpool Conduit
NI4452400 Whirlpool Microwave Wire Harness
NIW11157775 Whirlpool Wire Harness
NIW10655464 Whirlpool Bracket
NIW10487999 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NIW11136115 Whirlpool Wire Harness
NIW11132989 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
1GUIDE, USE & CARE
1DSHEET, TECH
1CINSTRUCTIONS, INSTALLATION (IKEA)
1BINSTRUCTIONS, UNDERCOUNTER INSTALL
1AINSTRUCTIONS, INSTALLATION
2W10864193 Whirlpool Control Panel
3W10803991 Whirlpool Electronic Control Board + Core
4W10845828-includeCORE Whirlpool W10845828 Washer Electronic Control Board + Core
5W10618105 Whirlpool Spacer
6W11245567 Whirlpool Blower Assembly
7SCREW
8WPW10545255 Whirlpool Thermal Fuse
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12W10347650 Whirlpool Mounting Bracket
13W10655465 Whirlpool Mounting Bracket
14WPW10657548 Whirlpool Foam Seal
15W10318192 Whirlpool Cabinet Top
16W10904156 Whirlpool Cabinet Top
17SCREW
