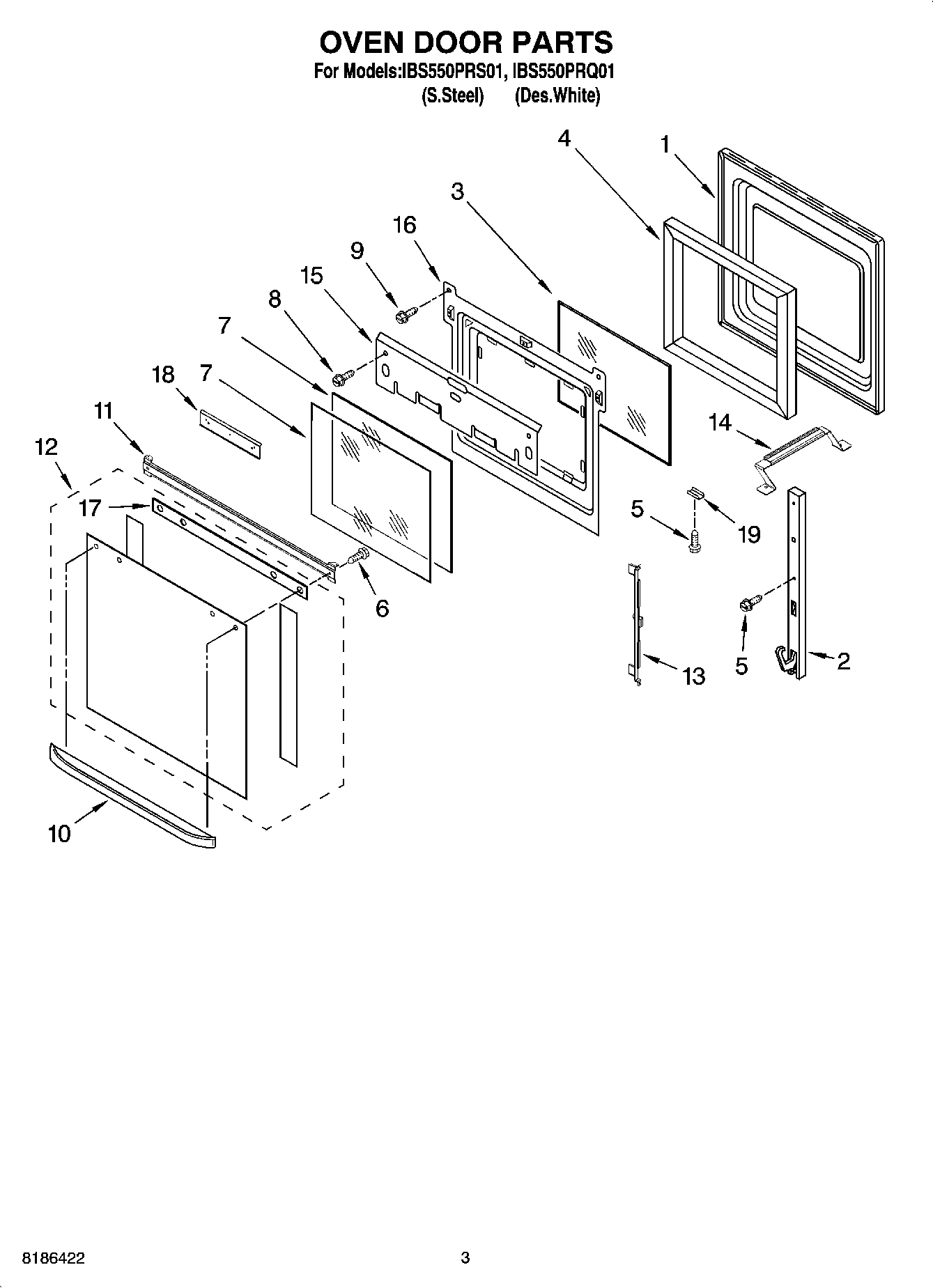

IBS550PRQ01 02 – OVEN DOOR PARTS

IBS550PRQ01 02 – OVEN DOOR PARTS

Written by

in

IBS550PRQ01 02 – OVEN DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2WP9760579 Whirlpool Right Door Hinge
2HINGE-DOOR LH/SS DOOR SPRING
3WP4449259 Whirlpool Glass Window
4WP4451722 Whirlpool Door Insulation Assembly
5WP4449743 Whirlpool Screw
6WPW10132940 Whirlpool Dishwasher Screw
7WP9759225 Whirlpool Inner Door Glass
8WP4449809 Whirlpool Screw
9WP3400832 Whirlpool Screw
10Door Handle (White)
10Door Handle
11Bracket, Handle
12Assy, Door Glass (S.Steel)
12Assy, Door Glass (White)
13WP9759229 Whirlpool Mounting Bracket
14Bracket (3rd Glsss)
15Shield, Heat
16WP4457132 Whirlpool Retainer
17Seal, Door Top
184457114 Whirlpool Oven Heat Shield
19Retainer, Glass-Clip (Stainless Steel)
