IBS550PRQ01 04 – CONTROL PANEL PARTS

IBS550PRQ01 04 – CONTROL PANEL PARTS

Written by

in

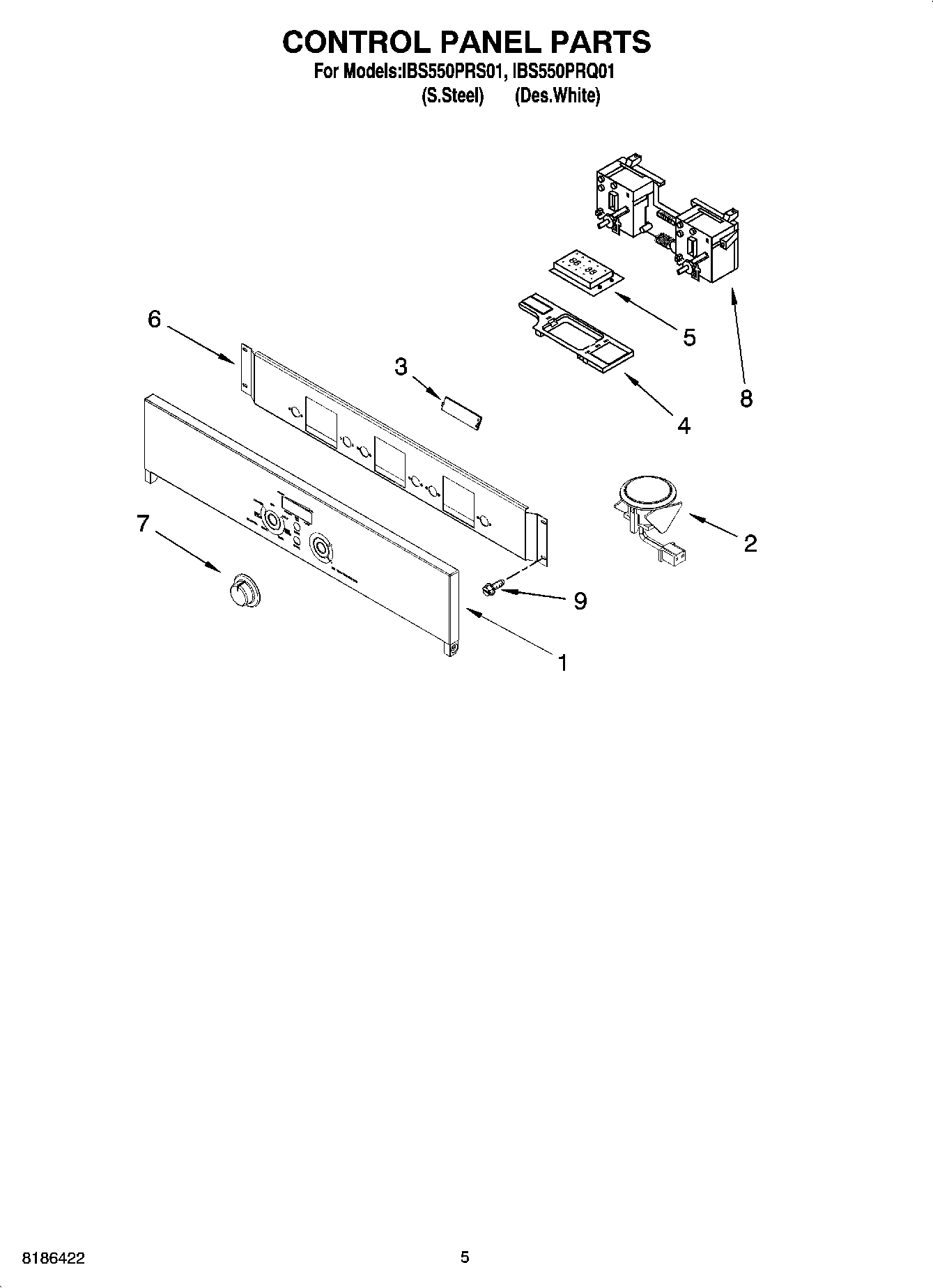

IBS550PRQ01 04 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel Assembly (White)
1Control Panel Assembly (Stainless)
2Switch, Cancel (White)
2Switch, Enter (White)
28303091 Whirlpool Oven Switch
28303089 Whirlpool Oven Switch Panel
3Cover, Display
4Bracket, Display
5WP4452999 Whirlpool Display Assembly
6Bracket, UI
79758755 Whirlpool Knob Assembly
7Knob (White)
8WP8303093 Whirlpool Oven Control
9WP4449809 Whirlpool Screw
