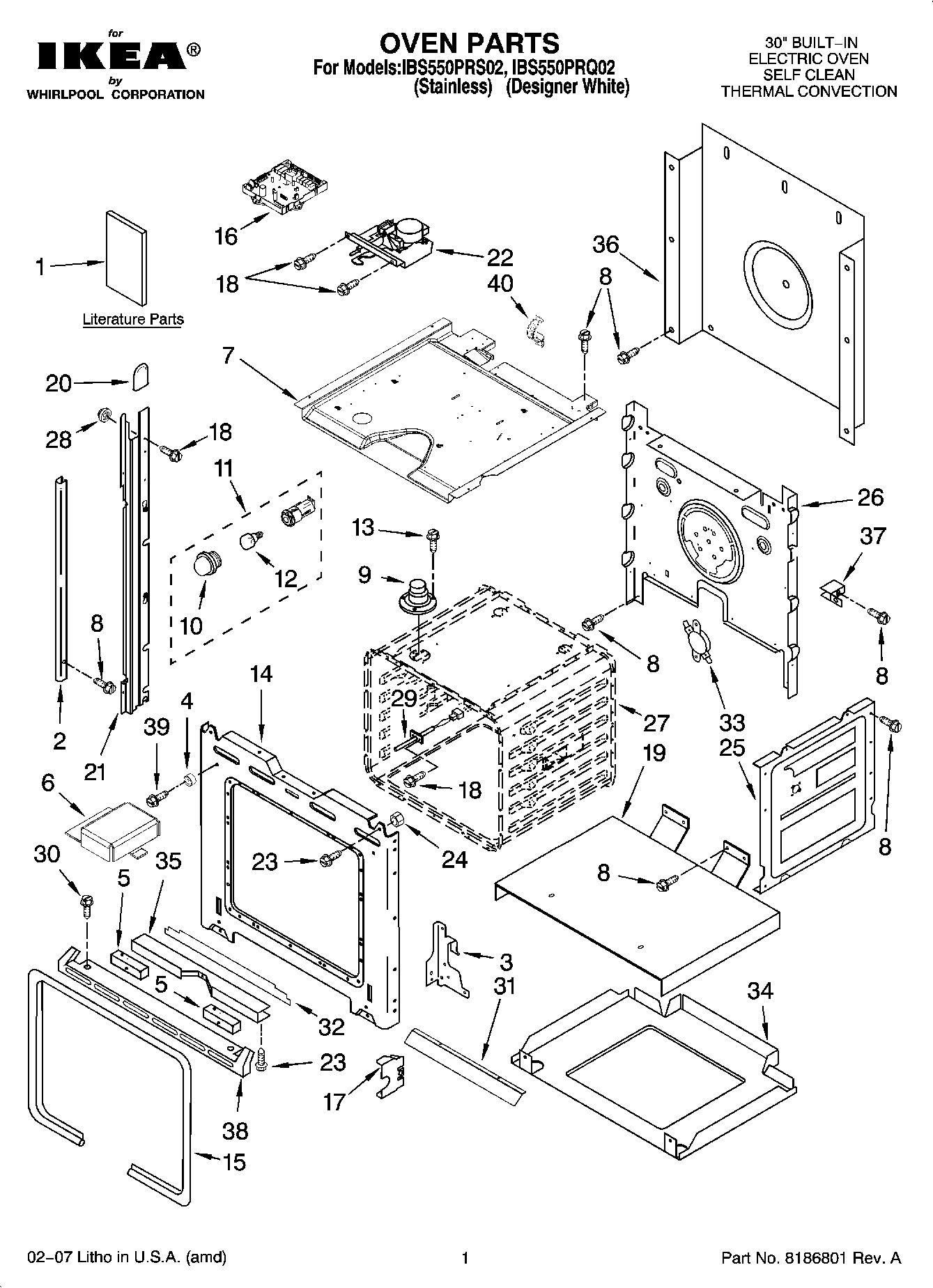

IBS550PRQ02 01 – OVEN PARTS

Products

PositionProduct
1Owners Manual (Sgl/Dbl Oven)
1Installation/ Undercounter
1Tech Sheet
1Instruction, Installation
2Trim, Side Right (White)
2Trim, Side Left (White)
2WPW10144983 Whirlpool Trim
2W10144984 Whirlpool Trim
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
4W10105790 Whirlpool Bumper
5Spacer, Foam
68285593 Whirlpool Oven Wire Cover
7Top Chassis
8WP4449809 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13SCREW
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
16CONTROL, TAURUS
174452152 Whirlpool Oven Mounting Bracket
18WP4449154 Whirlpool Screw
19Support, Insulation
20Cap, Spacer
21814372 Whirlpool Oven Rail Mount
21814371 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
23Screw
24WP4450118 Whirlpool Nut
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP4448444 Whirlpool Grommet
29WPW10131825 Whirlpool Oven Temperature Sensor
30WP3400805 Whirlpool Screw Assembly
319760677 Whirlpool Oven Vent Deflector
32Insulation Bottom Vent
33WP9759243 Whirlpool Thermostat
34Base, Chassis
35WP4448933 Whirlpool Retainer
36WP4451747 Whirlpool Rear Cover
37WPL 4449845
38Trim, Bottom (White)
38WPL 4455147
39WP4450038 Whirlpool Screw
40W11684730 Whirlpool Insulation
40WPL 4450365
408528351 Whirlpool Clip
40FOLLOWING PARTS NOT ILLUSTRATED INSULATION
