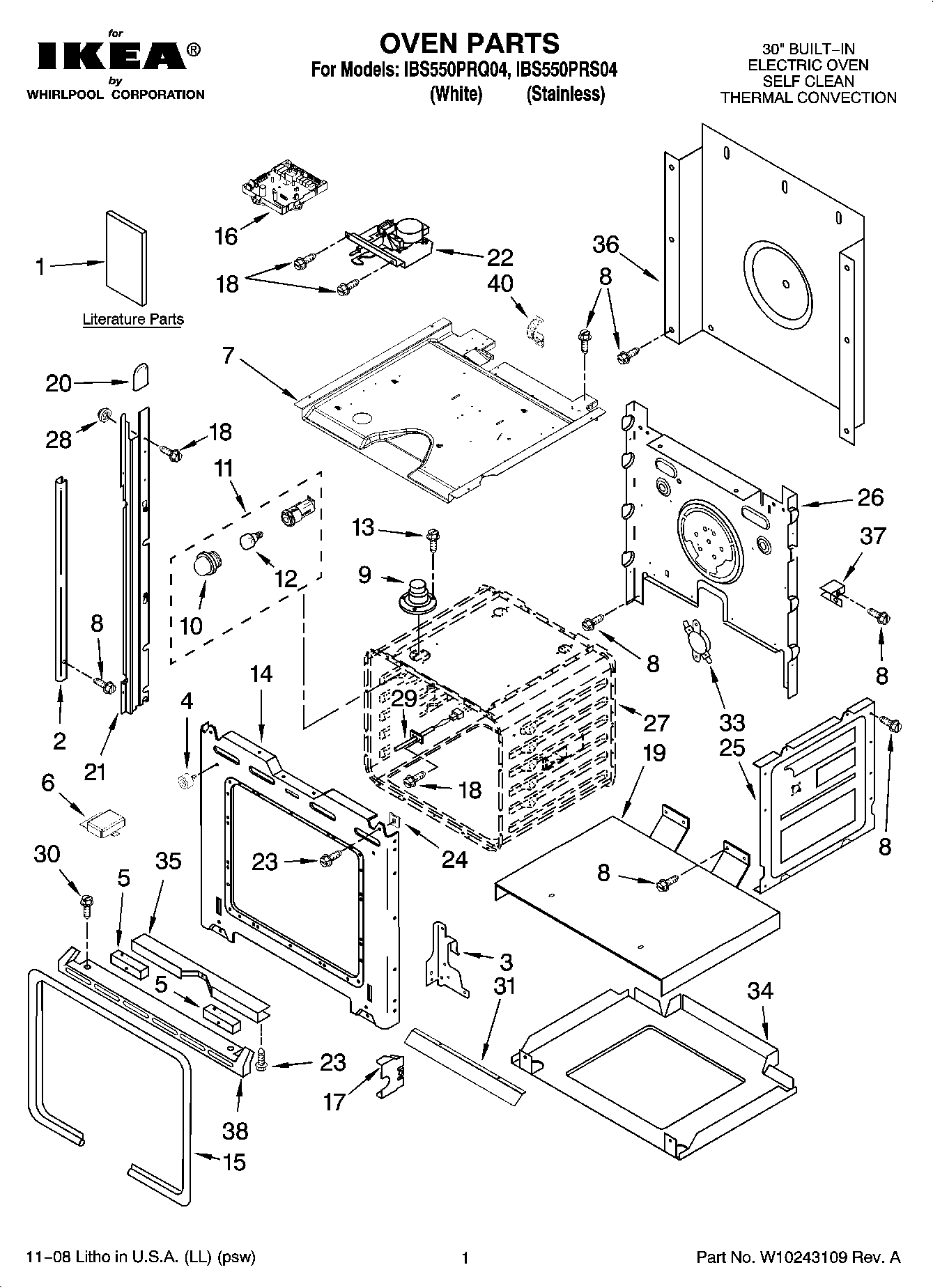

IBS550PRQ04 01 – OVEN PARTS

Products

Position	Product
	WPL 4450365
	W11684730 Whirlpool Insulation
	Insulation
	Following Parts Not Illustrated
1	Owners Manual
1	INSTALLATION/UNDERCOUNTER
1	Instruction, Installation
1	Tech Sheet
2	W10144984 Whirlpool Trim
2	Trim, Side Right (White)
2	Trim, Side Left (White)
2	WPW10144983 Whirlpool Trim
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
5	Spacer, Foam
6	8285593 Whirlpool Oven Wire Cover
7	Top Chassis
8	WP4449809 Whirlpool Screw
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	SCREW
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
16	CONTROL, TAURUS
17	4452152 Whirlpool Oven Mounting Bracket
18	WP4449154 Whirlpool Screw
19	Support, Insulation
20	Cap, Spacer
21	814372 Whirlpool Oven Rail Mount
21	814371 Whirlpool Oven Rail Mount
22	WP9760889 Whirlpool Door Latch
23	Screw
24	WP4450118 Whirlpool Nut
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	WP4448444 Whirlpool Grommet
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	WP3400805 Whirlpool Screw Assembly
31	9760677 Whirlpool Oven Vent Deflector
33	WP9759243 Whirlpool Thermostat
34	Base, Chassis
35	WP4448933 Whirlpool Retainer
36	WP4451747 Whirlpool Rear Cover
37	WPL 4449845
38	WPL 4455147
38	Trim, Bottom (White)
40	8528351 Whirlpool Clip
