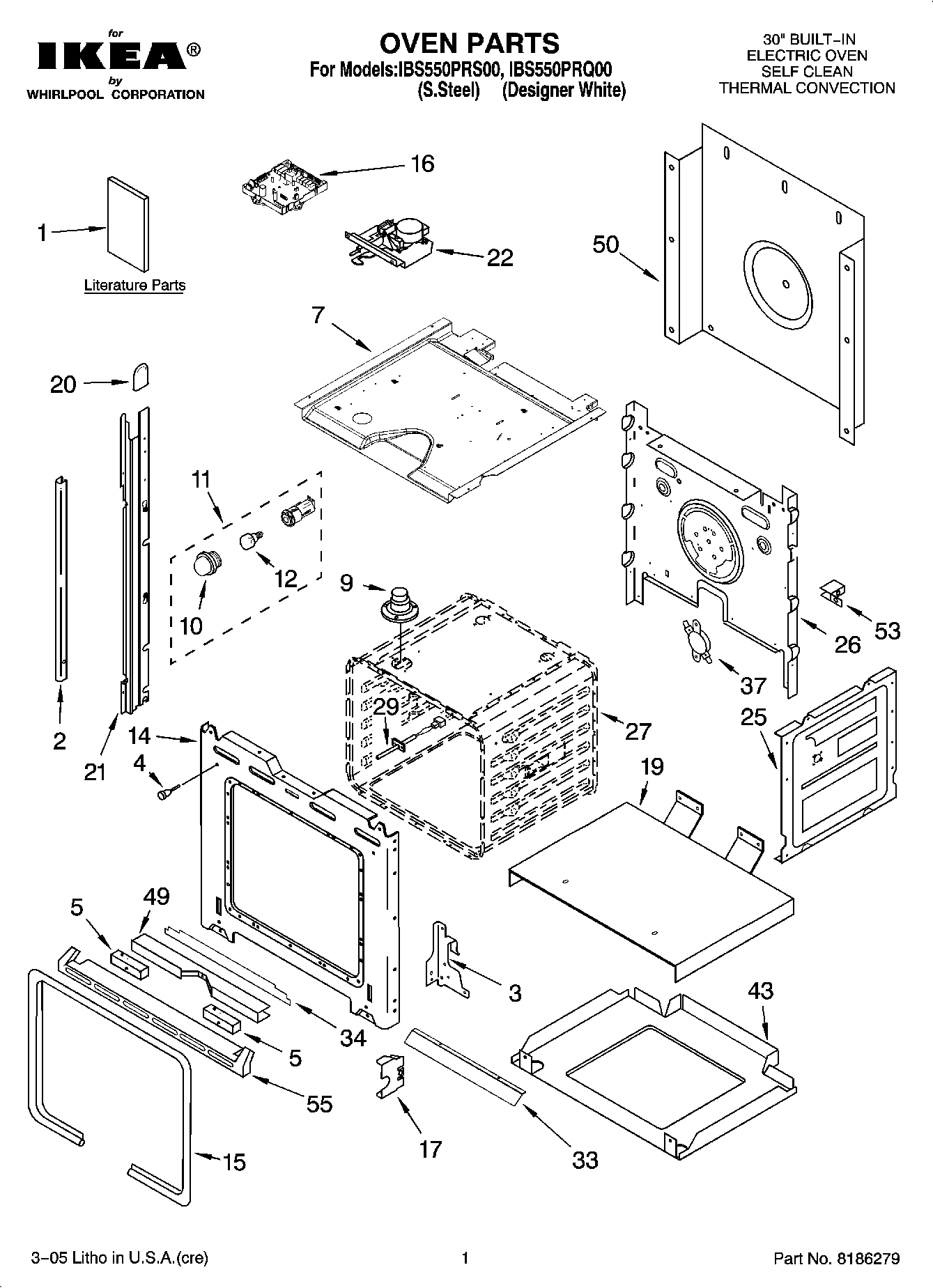

IBS550PRS00 01 – OVEN PARTS

Products

Position	Product
1	Use & Care Guide (Oven)
1	Tech Sheet
1	Instruction, Installation
1	Safe Cooking Tips
1	Installation/ Undercounter
1	Installation, MWO Trim Kit
2	WPW10144983 Whirlpool Trim
2	W10144984 Whirlpool Trim
2	Trim, Side Right (White)
2	Trim, Side Left (White)
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	4448520 Whirlpool Oven Bumper
5	Spacer, Foam
7	Top Chassis
9	SCREW
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	WP4450118 Whirlpool Nut
14	Screw
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
16	Control, Taurus2
17	4452152 Whirlpool Oven Mounting Bracket
19	Support, Insulation
20	Cap, Spacer
21	WP4448444 Whirlpool Grommet
21	814371 Whirlpool Oven Rail Mount
21	814372 Whirlpool Oven Rail Mount
22	WP9760889 Whirlpool Door Latch
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
29	WPW10131825 Whirlpool Oven Temperature Sensor
33	9760677 Whirlpool Oven Vent Deflector
34	Insulation Bottom Vent
37	WP9759243 Whirlpool Thermostat
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
53	WPL 4449845
53	WP4449809 Whirlpool Screw
55	Trim, Bottom (White)
55	W11684730 Whirlpool Insulation
55	WPL 4455147
55	WP3400832 Whirlpool Screw
55	FOLLOWING PARTS
55	WPL 4450365
