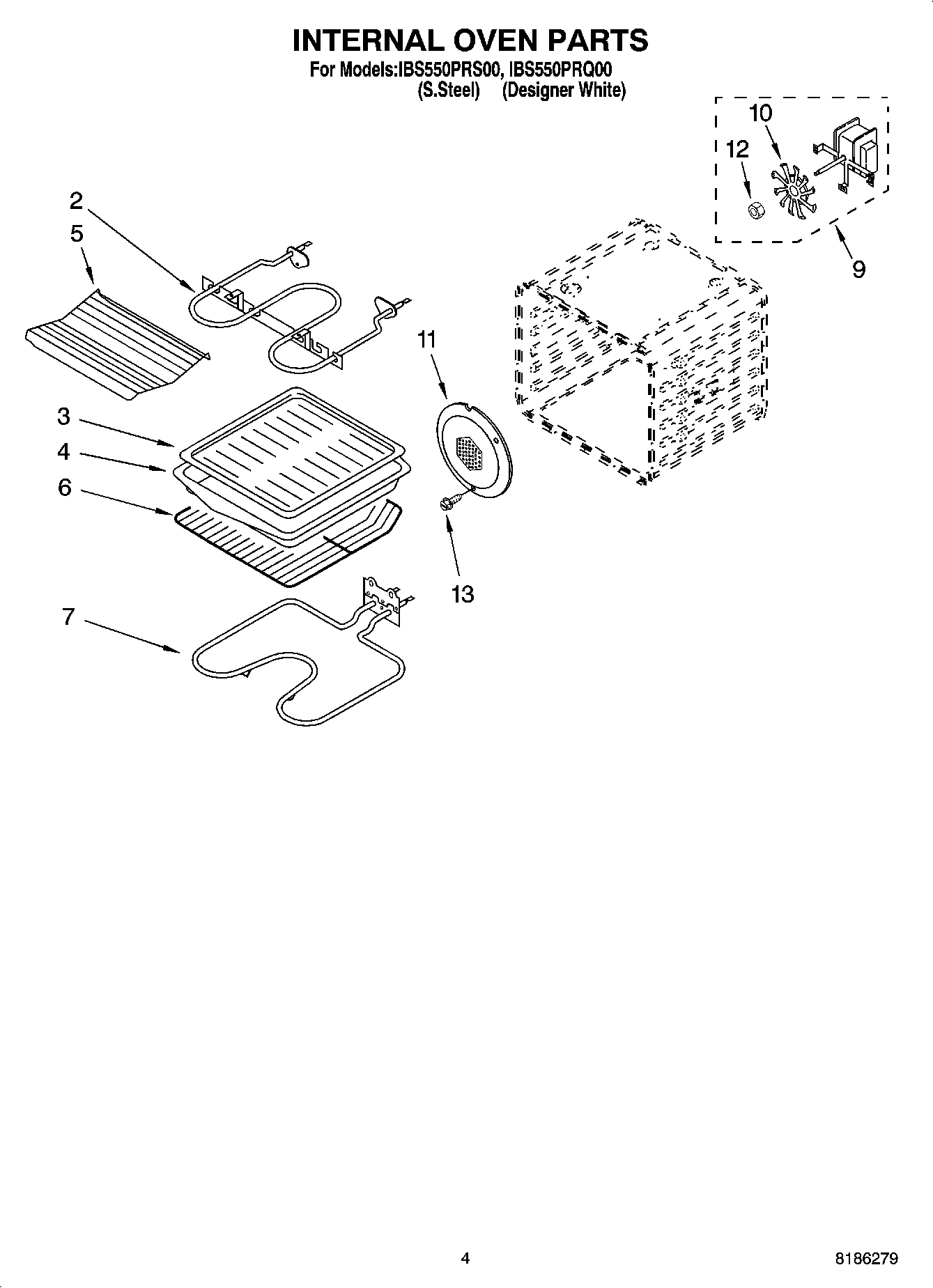

IBS550PRS00 03 – INTERNAL OVEN PARTS

Written by

Products

Position	Product
2	WP9760771 Whirlpool Electric Oven Broil Element
3	WP3195996 Whirlpool Pan Grid
4	W10737569 Whirlpool Broil Pan
5	Rack, Roasting
6	Pad, Rack
6	WPW10179152 Whirlpool Rack Oven
7	WPW10207397 Whirlpool Oven Bake Element
9	Motor Convection
10	WP4452226 Whirlpool Convection Fan
11	WPW10160821 Whirlpool Fan Cover
12	Nut
13	WP4449154 Whirlpool Screw
