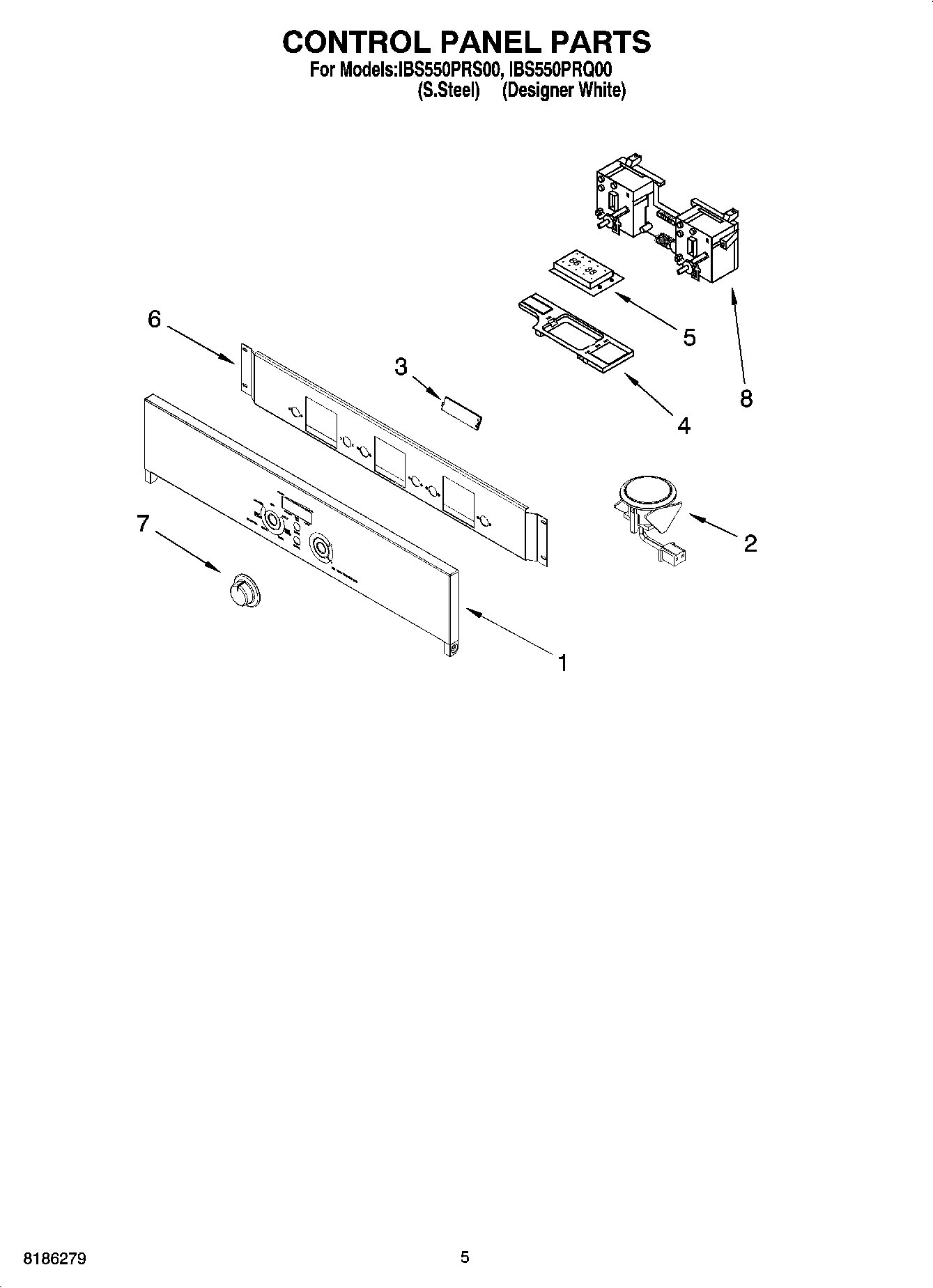

IBS550PRS00 04 – CONTROL PANEL PARTS

IBS550PRS00 04 – CONTROL PANEL PARTS

Written by

in

IBS550PRS00 04 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel Assembly (Stainless)
1Control Panel Assembly (White)
2Switch, Enter (White)
28303089 Whirlpool Oven Switch Panel
28303091 Whirlpool Oven Switch
2Switch, Cancel (White)
3Cover, Display
4Bracket, Display
5WP4452999 Whirlpool Display Assembly
6Bracket, UI
6WP4449809 Whirlpool Screw
7Knob (White)
79758755 Whirlpool Knob Assembly
8WP8303093 Whirlpool Oven Control
