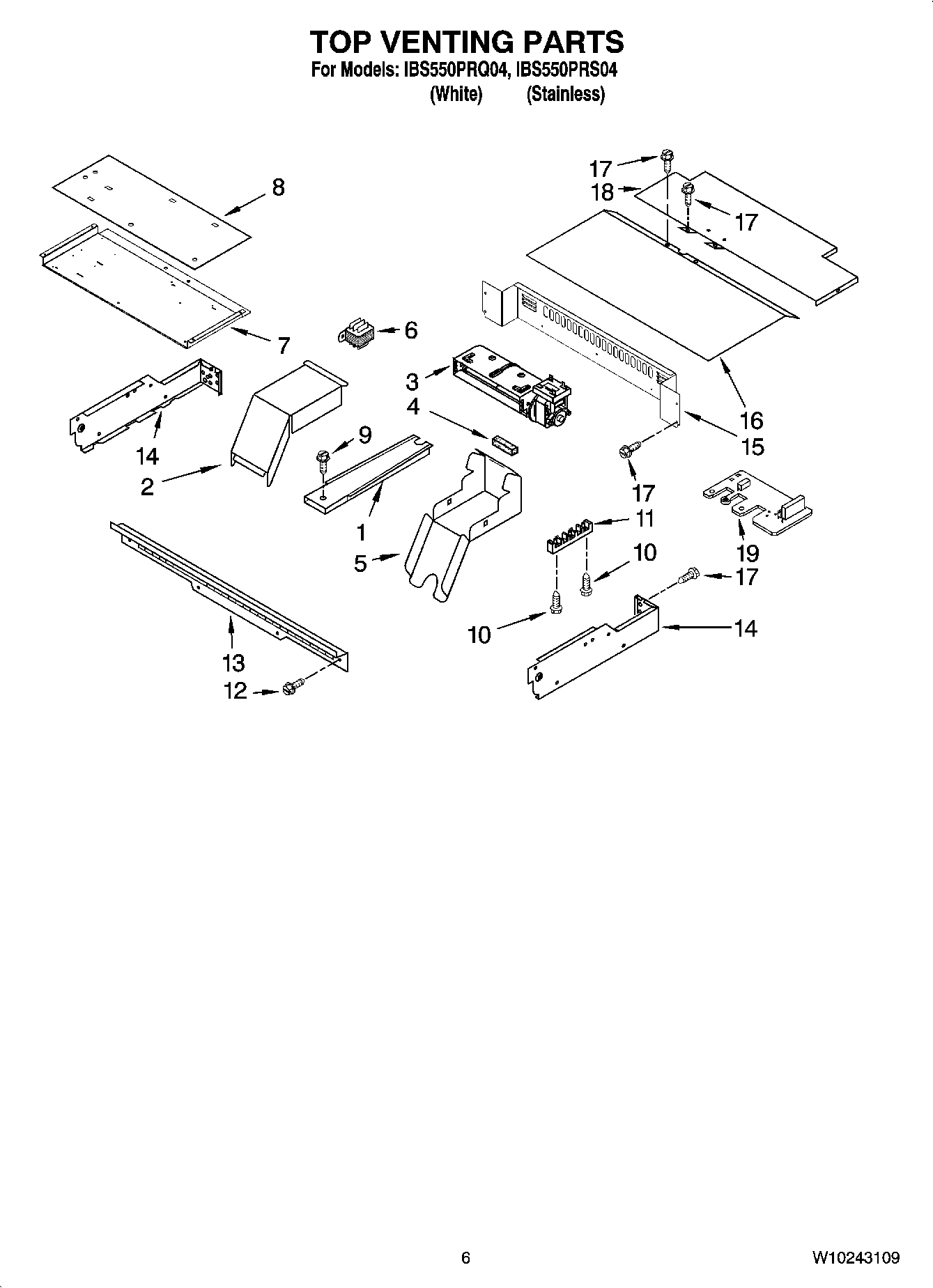

IBS550PRS04 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WIRING HARNESS PARTS
	4452400 Whirlpool Microwave Wire Harness
	WP261869 Whirlpool Microwave Paint
	WPL 591014
	Miscellaneous
	WP4450952 Whirlpool Conduit
	261900 Whirlpool Microwave Spray
	8303865 Whirlpool Oven Wire Harness
	Harness, Wire (Sgl/Dbl Ikea)
	ADHESIVE
	WP4448950 Whirlpool Screw
	WP482338 Whirlpool Refrigerator Adhesive
	Nut
	4450800 Whirlpool Oven Screw
	WP4449809 Whirlpool Screw
	WPW10339879 Whirlpool Wire Tie
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	4448664 Whirlpool Oven Mounting Bracket
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WP4455352 Whirlpool Mounting Bracket
3	W10810687 Whirlpool Blower Assembly
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
6	Transformer
7	Mounting Plate
8	Insulation
9	Screw
10	Screw
11	WP8203546 Whirlpool Terminal Block
12	WP4450038 Whirlpool Screw
13	Vent, (Control Panel)
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
18	WP4452367 Whirlpool Top Cover
19	WP4451985 Whirlpool Noise Filter Board
