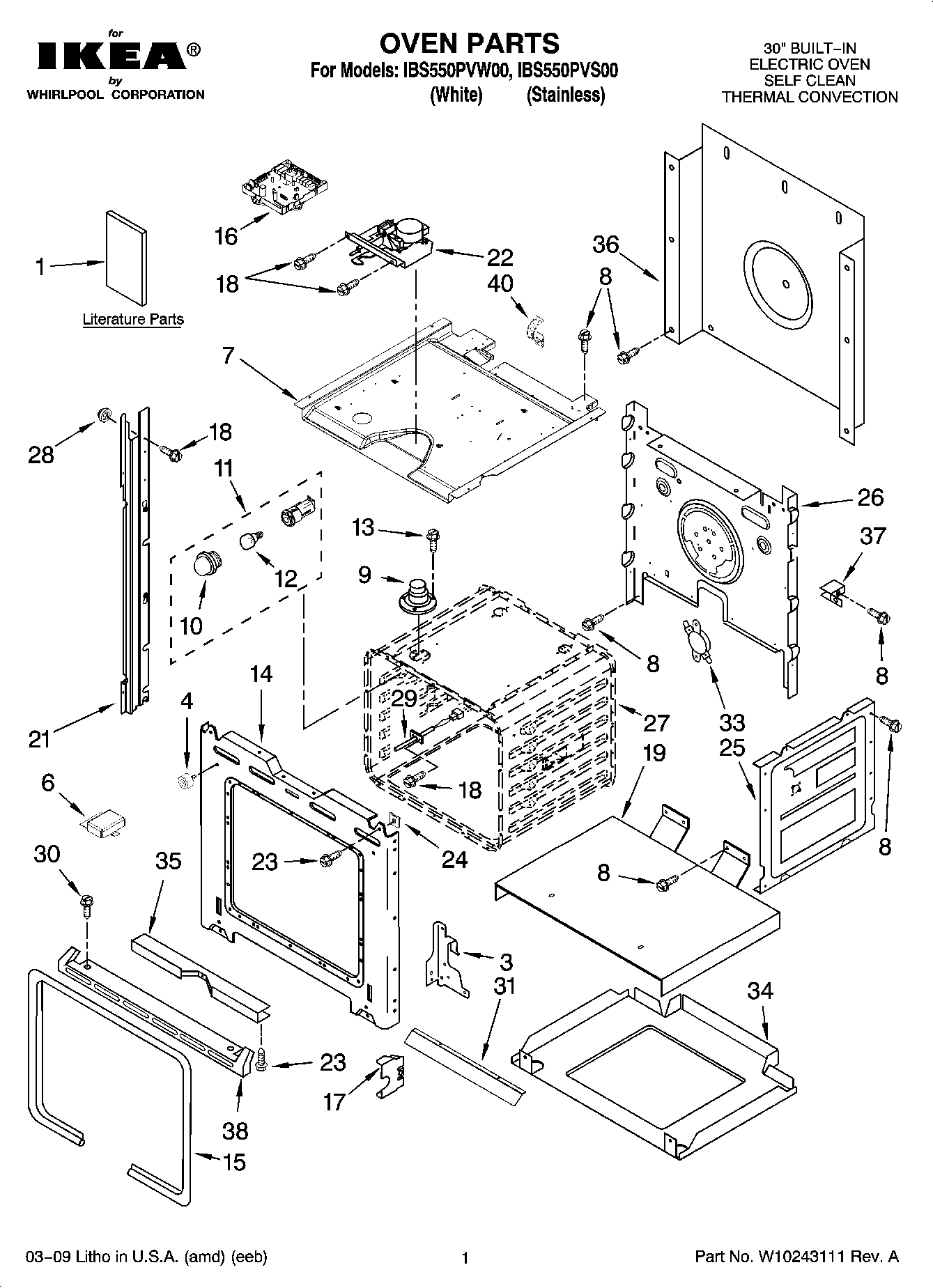

IBS550PVS00 01 – OVEN PARTS

IBS550PVS00 01 – OVEN PARTS

Written by

in

IBS550PVS00 01 – OVEN PARTS

Products

PositionProduct
W11684730 Whirlpool Insulation
WPL 4450365
Following Parts Not Illustrated
Insulation
1INSTALLATION/UNDERCOUNTER
1Tech Sheet
1Instructions, Installation
1Owners Manual
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
4W10105790 Whirlpool Bumper
68285593 Whirlpool Oven Wire Cover
7Top Chassis
8WP4449809 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13SCREW
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
16Control
174452152 Whirlpool Oven Mounting Bracket
18WP4449154 Whirlpool Screw
19Support, Insulation
21Rail, Mounting (Left)
21Rail, Mounting (Right)
22WP9760889 Whirlpool Door Latch
23Screw
24WP4450118 Whirlpool Nut
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP4448444 Whirlpool Grommet
29WPW10131825 Whirlpool Oven Temperature Sensor
30WP3400805 Whirlpool Screw Assembly
319760677 Whirlpool Oven Vent Deflector
33WP9759243 Whirlpool Thermostat
34Base, Chassis
35WP4448933 Whirlpool Retainer
36WP4451747 Whirlpool Rear Cover
37WPL 4449845
38Trim, Bottom
408528351 Whirlpool Clip
