IBS550PVS00 05 – TOP VENTING PARTS
Written by
in

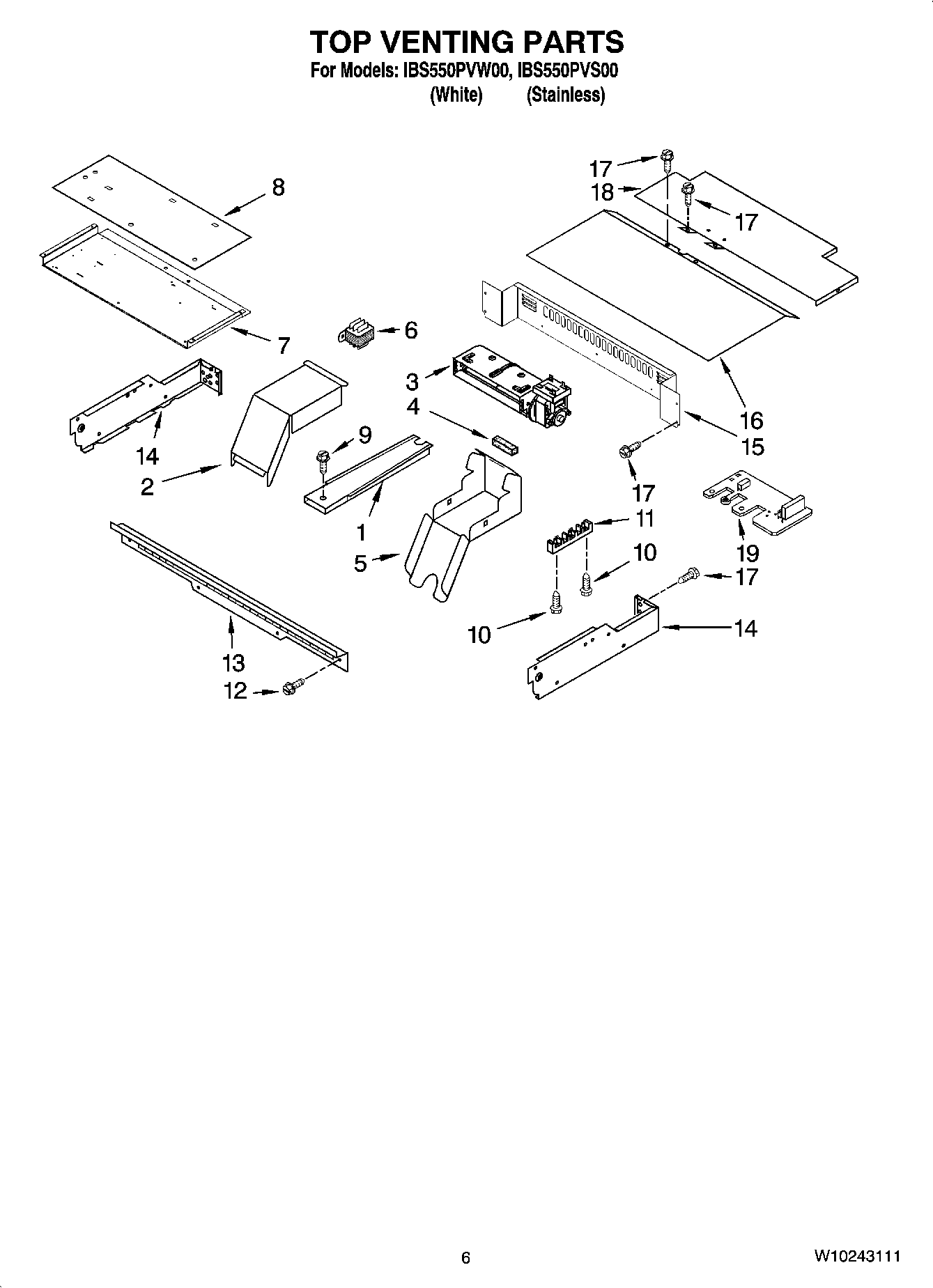

IBS550PVS00 05 – TOP VENTING PARTS
Products
Position
Product
1
4451759 Whirlpool Oven Exhaust Vent
2
4455178 Whirlpool Oven Top Elbow
3
W10810687 Whirlpool Blower Assembly
3
WP4455352 Whirlpool Mounting Bracket
4
W10491987 Whirlpool Foam Seal
5
4455177 Whirlpool Oven Bottom Elbow
6
Transformer
7
Mounting Plate
8
Insulation
9
Screw
10
Screw
11
WP8203546 Whirlpool Terminal Block
12
WP4450038 Whirlpool Screw
13
8303497 Whirlpool Oven Vent Control
14
W10755214 Whirlpool Side Complete
14
W10790240 Whirlpool Side Assembly Complete
15
Back, Control
16
WP4450551 Whirlpool Top Cabinet
17
WP4449809 Whirlpool Screw
18
WP4452367 Whirlpool Top Cover
19
WP4451985 Whirlpool Noise Filter Board
←
