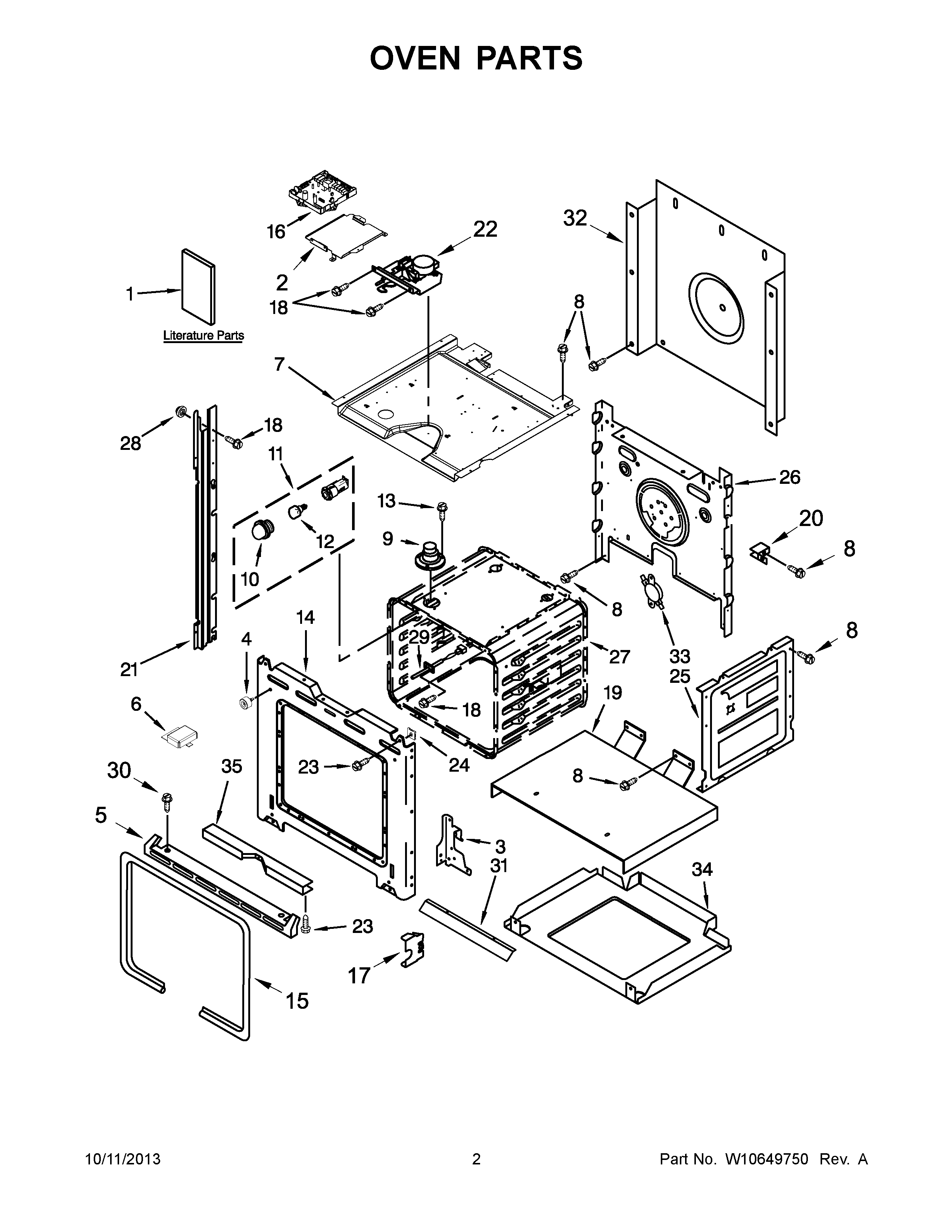

IBS550PWW01 02 – OVEN PARTS

IBS550PWW01 02 – OVEN PARTS

Written by

in

IBS550PWW01 02 – OVEN PARTS

Products

PositionProduct
NIW11684730 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIWPL 4450365
1INSTALLATION/ UNDERCOUNTER
1Tech Sheet
1Instructions, Installation
1OWNERS MANUAL
2BRACKET, CONTROL
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5Trim, Bottom
68285593 Whirlpool Oven Wire Cover
7Top Chassis
8SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Screw
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
16Control
174452152 Whirlpool Oven Mounting Bracket
18WP4449154 Whirlpool Screw
19Support, Insulation
20WPL 4449845
21Rail, Mounting (Right)
21Rail, Mounting (Left)
22WPW10195934 Whirlpool Door Latch
23Screw
24WP4450118 Whirlpool Nut
25W10782197 Whirlpool Side Panel
26Back, Chassis
28WP4448444 Whirlpool Grommet
29WPW10131825 Whirlpool Oven Temperature Sensor
30WP3400805 Whirlpool Screw Assembly
319760677 Whirlpool Oven Vent Deflector
32WP4451747 Whirlpool Rear Cover
33WP9759243 Whirlpool Thermostat
35WP4448933 Whirlpool Retainer
