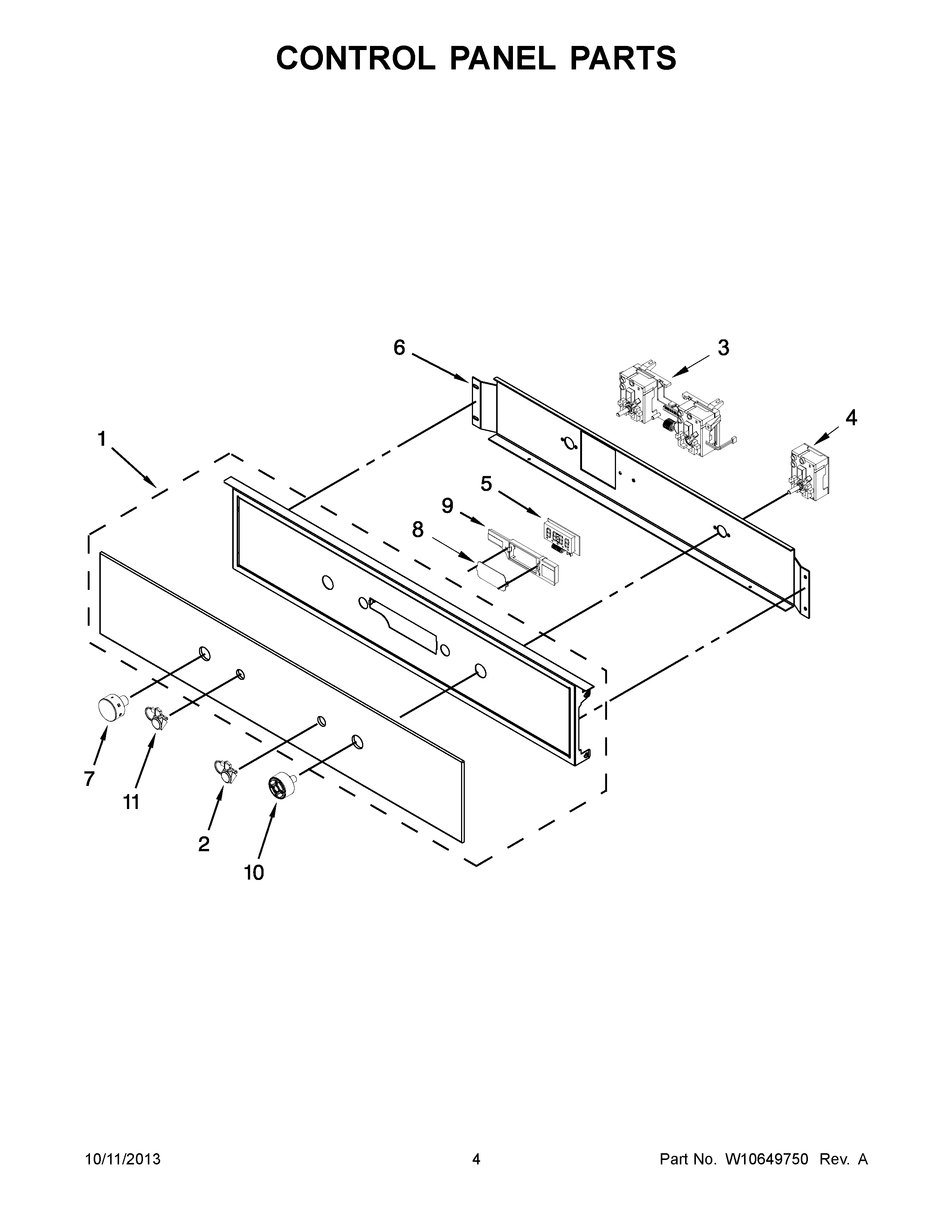

IBS550PWW01 03 – CONTROL PANEL PARTS

IBS550PWW01 03 – CONTROL PANEL PARTS

Written by

in

IBS550PWW01 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ASSEMBLY, CONTROL PANEL (STAINLESS)
1ASSEMBLY, CONTROL PANEL (WHITE)
2WPW10158961 Whirlpool Push Button Switch
3WPW10158965 Whirlpool Oven Control
4W10158966 Whirlpool Oven Switch
5WPW10158964 Whirlpool Display
6BRACKET, USER INTERFACE
7W10178792 Whirlpool Knob
8Filter, Display
9Bracket, Display
10W10158969 Whirlpool Knob
11SWITCH, CANCEL
