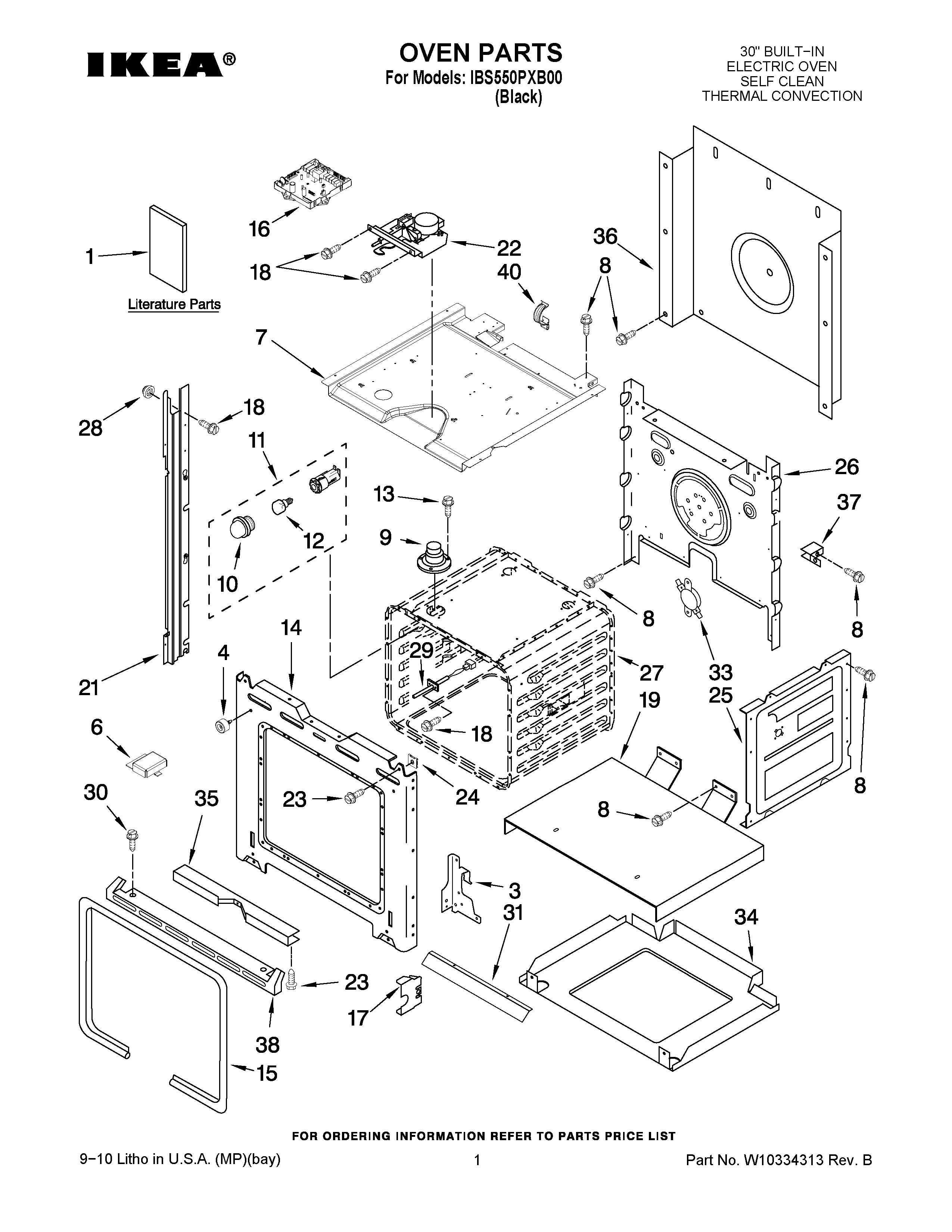

IBS550PXB00 01 – OVEN PARTS

Products

Position	Product
NI	W11684730 Whirlpool Insulation
NI	WPL 4450365
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1	Instructions, Installation
1	INSTALLATION/UNDERCOUNTER
1	OWNERS MANUAL
1	Tech Sheet
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
6	8285593 Whirlpool Oven Wire Cover
7	Top Chassis
8	WP4449809 Whirlpool Screw
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	SCREW
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
16	Control
17	4452152 Whirlpool Oven Mounting Bracket
18	WP4449154 Whirlpool Screw
19	Support, Insulation
21	RAIL, MOUNTING (BLACK-RIGHT)
21	RAIL, MOUNTING (BLACK-LEFT)
22	WPW10195934 Whirlpool Door Latch
23	Screw
24	WP4450118 Whirlpool Nut
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	CABINET (NOT A SERVICEABLE PART)
28	WP4448444 Whirlpool Grommet
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	WP3400805 Whirlpool Screw Assembly
31	9760677 Whirlpool Oven Vent Deflector
33	WP9759243 Whirlpool Thermostat
34	Base, Chassis
35	WP4448933 Whirlpool Retainer
36	WP4451747 Whirlpool Rear Cover
37	WPL 4449845
38	VENT BOTTOM TRIM ASSEMBLY (BLACK)
40	8528351 Whirlpool Clip
