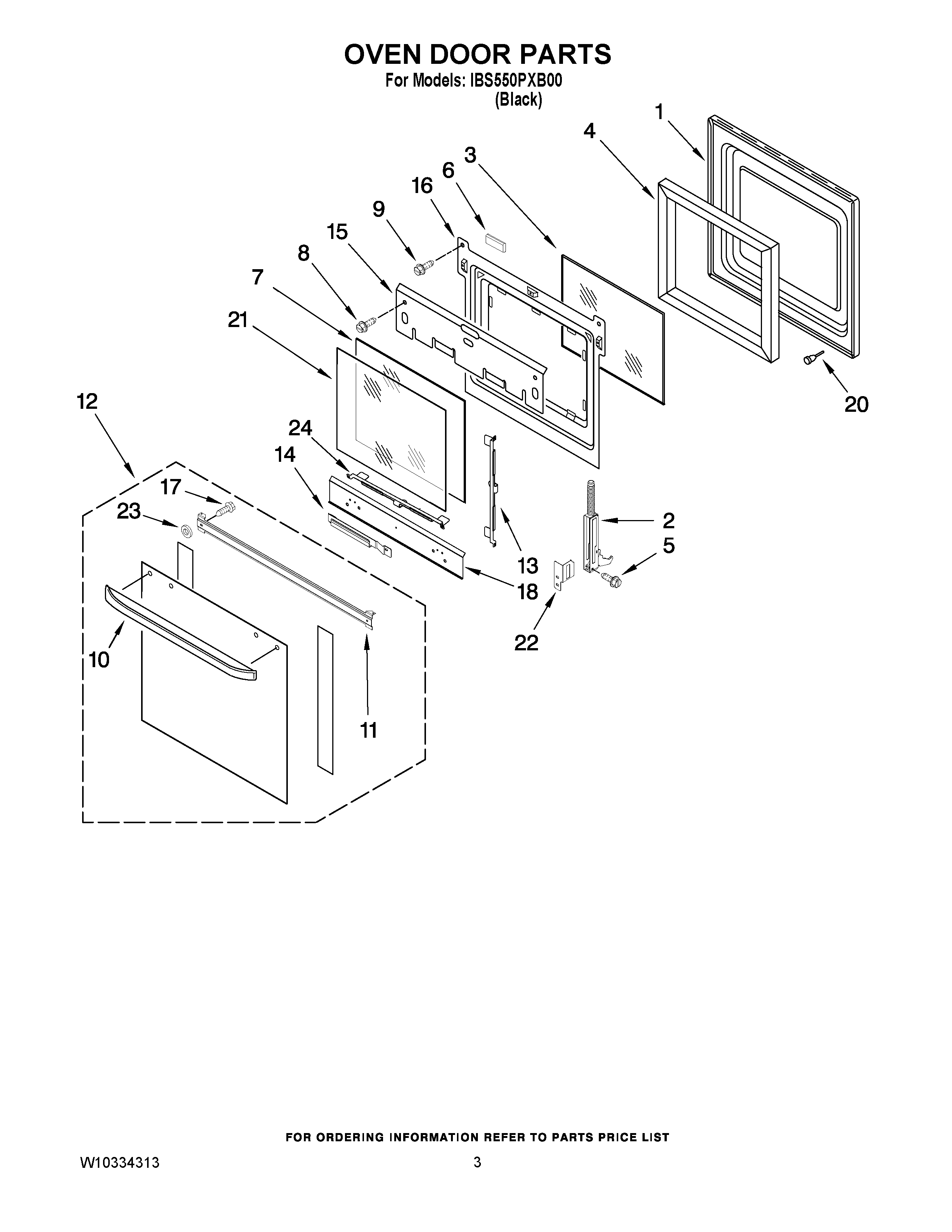

IBS550PXB00 02 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760577 Whirlpool Oven Right Door Hinge
2	WP9760578 Whirlpool Oven Left Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
6	Spacer, Glass
8	WP4449809 Whirlpool Screw
9	WP4449743 Whirlpool Screw
10	HANDLE, DOOR
11	Bracket, Handle
12	DOOR GLASS (BLACK)
13	WP9759229 Whirlpool Mounting Bracket
14	Bracket (3rd Glsss)
15	SHIELD, HEAT TOP
16	WP4457132 Whirlpool Retainer
17	Screw
18	4457114 Whirlpool Oven Heat Shield
20	4448520 Whirlpool Oven Bumper
21	WP9759225 Whirlpool Inner Door Glass
22	COVER,HINGE (RIGHT)
22	COVER,HINGE (LEFT)
23	WASHER
24	BRACKET-BOTTOM (BLACK)
