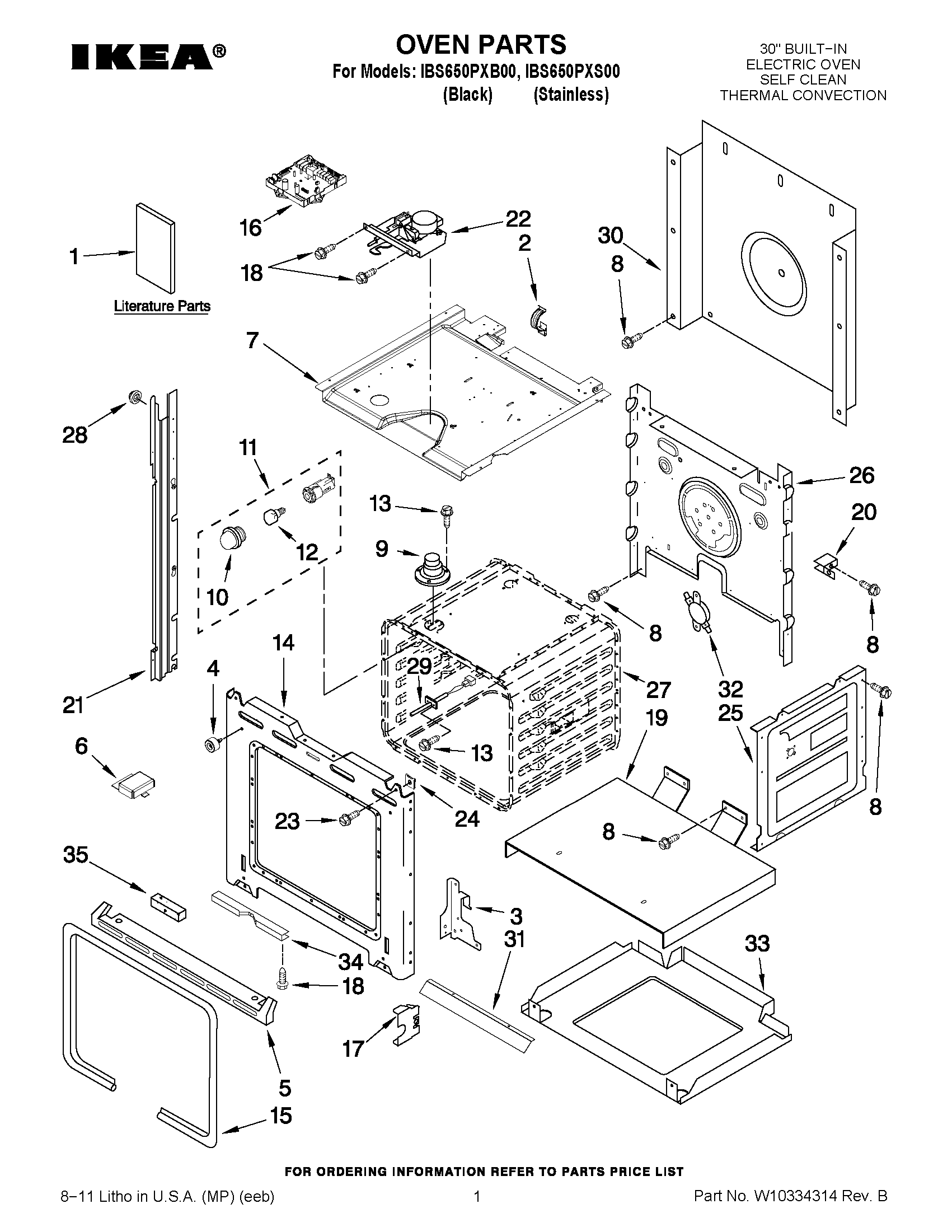

IBS650PXB00 01 – OVEN PARTSadmin2025-04-26T12:33:15+00:00IBS650PXB00 01 – OVEN PARTS
Products
| Position | Product |
|---|
| NI | WPL 4450365 |
| NI | W11684730 Whirlpool Insulation |
| 1 | Tech Sheet |
| 1 | INSTALLATION INSTRUCTIONS (BI-LINGUAL) |
| 1 | OWNERS MANUAL |
| 1 | Instructions, Installation |
| 1 | INSTALLATION/ UNDERCOUNTER |
| 2 | 8528351 Whirlpool Clip |
| 3 | WP4455606 Whirlpool Right Hand Hinge |
| 3 | WP4455605 Whirlpool Left Hand Hinge |
| 4 | W10105790 Whirlpool Bumper |
| 5 | Trim, Bottom |
| 5 | VENT BOTTOM TRIM ASSEMBLY (BLACK) |
| 6 | 8285593 Whirlpool Oven Wire Cover |
| 7 | Top Chassis |
| 8 | SCREW |
| 9 | W10861715 Whirlpool Vent Tube |
| 10 | Lens, Light (2) |
| 11 | WPW10734065 Whirlpool Light |
| 12 | WP4173175 Whirlpool Light Bulb |
| 13 | Screw |
| 14 | WPW10115831 Whirlpool Front Frame |
| 15 | W11675844 Whirlpool Oven Gasket |
| 16 | CONTROL, TAURUS |
| 17 | 4452152 Whirlpool Oven Mounting Bracket |
| 18 | WP4449154 Whirlpool Screw |
| 19 | Support, Insulation |
| 20 | WPL 4449845 |
| 21 | RAIL, MOUNTING (BLACK-LEFT) |
| 21 | RAIL, MOUNTING (BLACK-RIGHT) |
| 21 | Rail, Mounting (Right) |
| 21 | Rail, Mounting (Left) |
| 22 | WPW10195934 Whirlpool Door Latch |
| 23 | Screw |
| 24 | WP4450118 Whirlpool Nut |
| 25 | W10782197 Whirlpool Side Panel |
| 26 | Back, Chassis |
| 27 | CABINET (NOT A SERVICEABLE PART) |
| 28 | WP4448444 Whirlpool Grommet |
| 29 | WPW10131825 Whirlpool Oven Temperature Sensor |
| 30 | WP4451747 Whirlpool Rear Cover |
| 31 | 9760677 Whirlpool Oven Vent Deflector |
| 32 | WP9759243 Whirlpool Thermostat |
| 33 | Base, Chassis |
| 34 | WP4448933 Whirlpool Retainer |
| 35 | Spacer, Foam |
