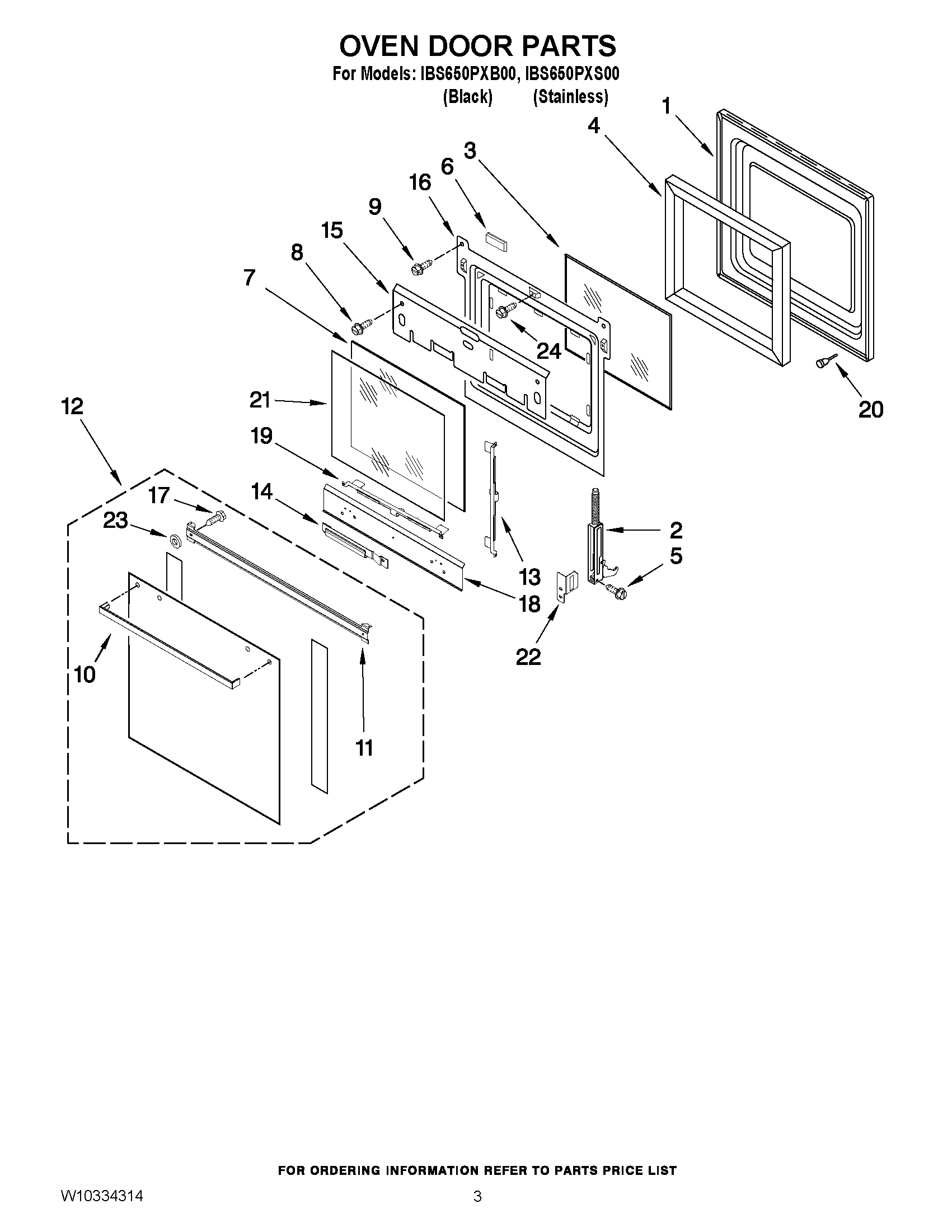

IBS650PXB00 02 – OVEN DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2WP9760577 Whirlpool Oven Right Door Hinge
2WP9760578 Whirlpool Oven Left Door Hinge
3WP4449259 Whirlpool Glass Window
4WP4451722 Whirlpool Door Insulation Assembly
6Spacer, Glass
8SCREW
9WP4449743 Whirlpool Screw
10DOOR HANDLE
11Bracket, Handle
12DOOR ASSEMBLY
13WP9759229 Whirlpool Mounting Bracket
14Bracket (3rd Glsss)
15SHIELD, HEAT TOP
16WP4457132 Whirlpool Retainer
17SCREW
184457114 Whirlpool Oven Heat Shield
19BRACKET-BOTTOM (STAINLESS)
19BRACKET-BOTTOM (BLACK)
204448520 Whirlpool Oven Bumper
21WP9759225 Whirlpool Inner Door Glass
22COVER,HINGE (RIGHT)
22COVER,HINGE (LEFT)
23WASHER
24WPW10292297 Whirlpool Screw
