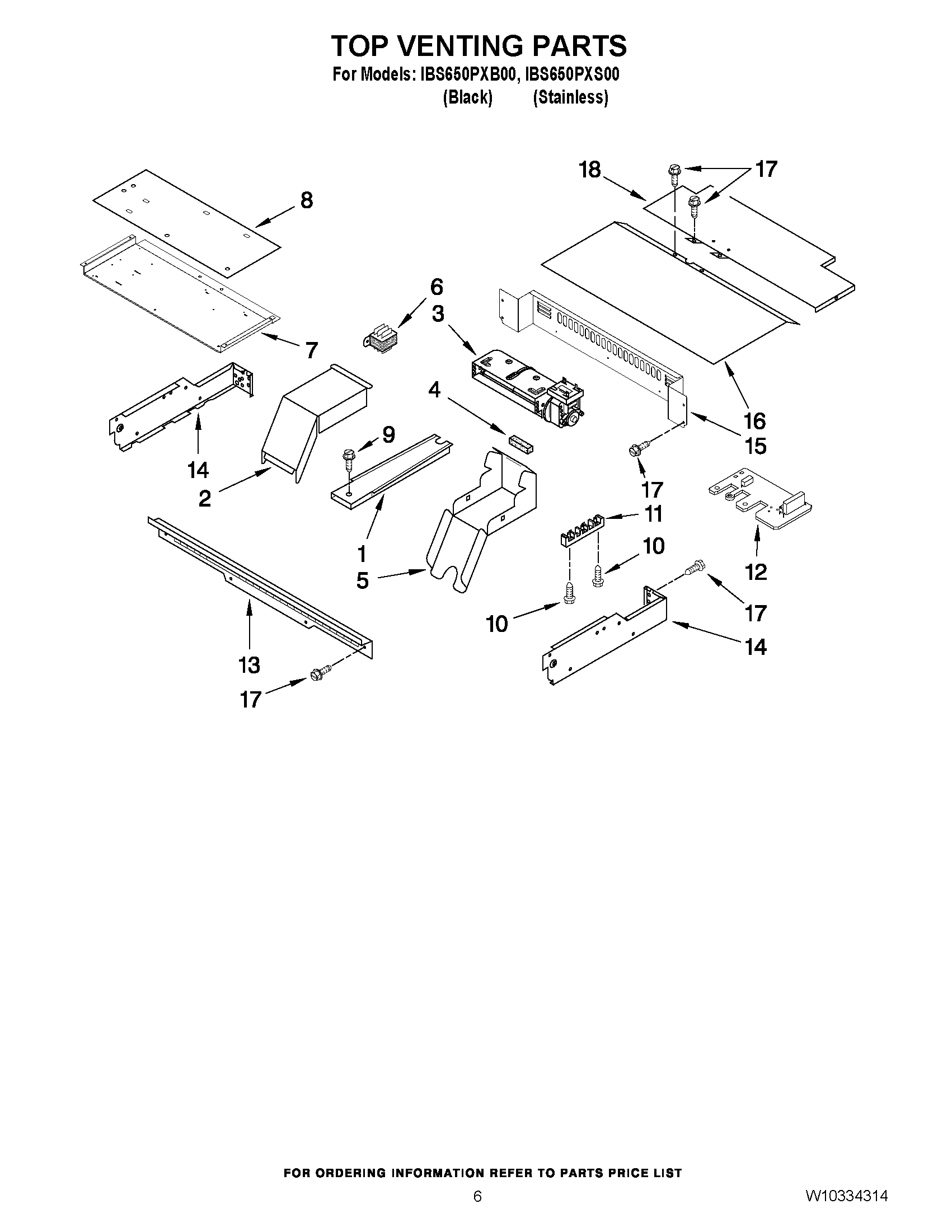

IBS650PXB00 05 – TOP VENTING PARTS

Written by

Products

Position	Product
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	W10810687 Whirlpool Blower Assembly
3	WP4455352 Whirlpool Mounting Bracket
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
6	Transformer
7	Mounting Plate
8	Insulation
9	Screw
10	Screw
11	BLOCK, TERMINAL
12	WP4451985 Whirlpool Noise Filter Board
13	8303497 Whirlpool Oven Vent Control
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
17	SCREW
18	WP4452367 Whirlpool Top Cover
