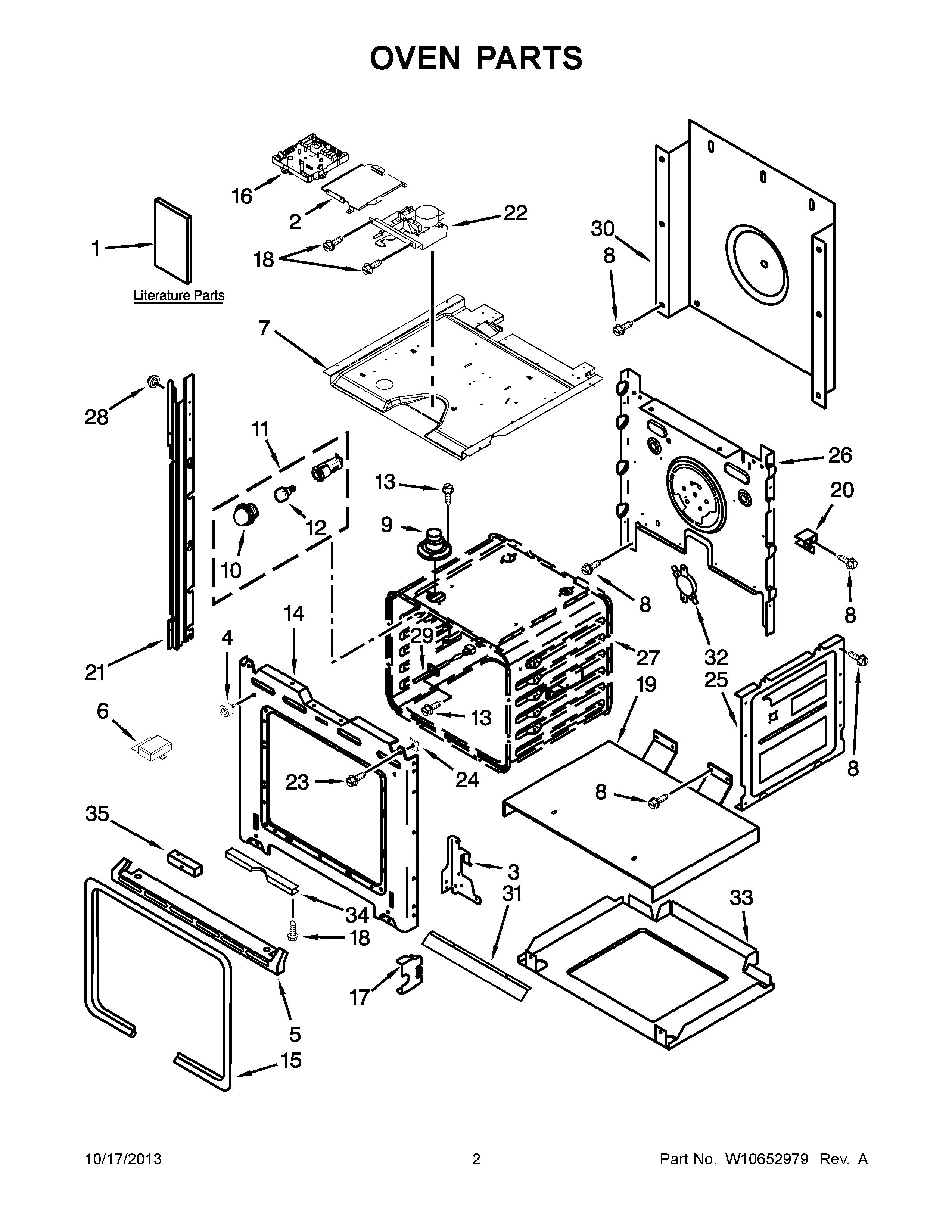

IBS650PXB01 02 – OVEN PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPL 4450365
NI	W11684730 Whirlpool Insulation
1	OWNERS MANUAL
1	Tech Sheet
1	Instructions, Installation
1	INSTALLATION/ UNDERCOUNTER
2	BRACKET, CONTROL
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	W10105790 Whirlpool Bumper
5	VENT BOTTOM TRIM ASSEMBLY (BLACK)
5	Trim, Bottom
6	8285593 Whirlpool Oven Wire Cover
7	Top Chassis
8	SCREW
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Screw
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
16	CONTROL, TAURUS
17	4452152 Whirlpool Oven Mounting Bracket
18	WP4449154 Whirlpool Screw
19	Support, Insulation
20	WPL 4449845
21	Rail, Mounting (Right)
21	Rail, Mounting (Left)
21	RAIL, MOUNTING (BLACK-RIGHT)
21	RAIL, MOUNTING (BLACK-LEFT)
22	WPW10195934 Whirlpool Door Latch
23	Screw
24	WP4450118 Whirlpool Nut
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
28	WP4448444 Whirlpool Grommet
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	WP4451747 Whirlpool Rear Cover
31	9760677 Whirlpool Oven Vent Deflector
32	WP9759243 Whirlpool Thermostat
34	WP4448933 Whirlpool Retainer
35	Spacer, Foam
