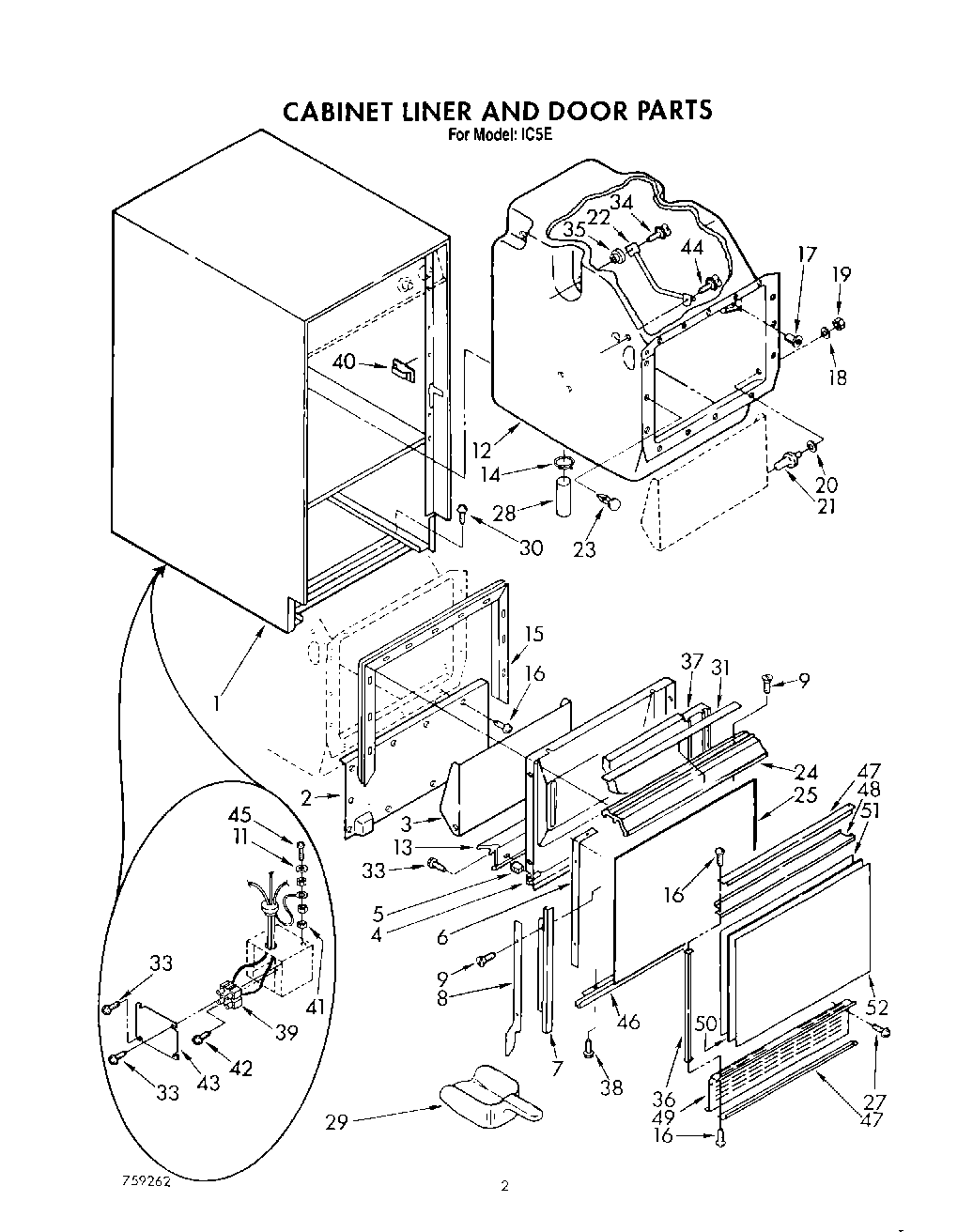

IC5E 02 – CABINET LINER AND DOORadmin2025-04-26T12:32:30+00:00IC5E 02 – CABINET LINER AND DOOR
Products
| Position | Product |
|---|
| WPL LIT759263 |
| WPL LIT759262 |
| WPL LIT756638 |
| 1 | Shell |
| 2 | Support, Cabinet Front |
| 3 | Door, Inner |
| 4 | Liner, Door |
| 5 | Plug, Hinge |
| 6 | Strip, Tapping (2) |
| 7 | Trim, Door (R.S.) |
| 7 | Trim, Door (L.S.) |
| 8 | Rail, Door (Right Side) |
| 8 | Rail, Door (Left Side) |
| 9 | Screw, No.8-32 1/2 (6) |
| 11 | Lockwasher (3) |
| 12 | Liner (Includes No.s 5, 6, 7, 11, 14) |
| 13 | Gasket, Door |
| 14 | Clamp, Hose (2) |
| 15 | Gasket, Liner |
| 16 | WP488729 Whirlpool Refrigerator Door Screw |
| 17 | Nut, Hex 1/4 (2) |
| 18 | Washer, Clip |
| 20 | Washer (2) |
| 21 | Stud, Inner Door Mtg. (2) |
| 22 | Thermostat, Well Bin |
| 23 | Grommet, Mtg (2) |
| 24 | Pull, Door |
| 25 | WPL 758888 |
| 27 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 28 | Hose, 5/8 x 4`` (Connector To Air Gap) |
| 29 | W11420408 Whirlpool Refrigerator Ice Scoop |
| 30 | Screw, No.10-32 x 3/8 |
| 31 | Insert, Handle |
| 33 | Screw, 8-15 x 1/2 (4) |
| 34 | Screw, 10 x 1/2 |
| 35 | Nut, Well (3) |
| 36 | Trim, Sides (2) |
| 37 | WPL 758754 |
| 38 | Screw, No.8-32 x 1/2 |
| 39 | Terminal, Connector |
| 40 | Retainer, Wire (2) |
| 41 | Nut, 1/4 Hex |
| 42 | WP681249 Whirlpool Screw Assembly |
| 43 | WPL 573468 |
| 44 | Thumbscrew 10-32 x 5/8 |
| 45 | WPL 681333 |
| 46 | Trim, Door (Lower) |
| 47 | Trim, Top & Bottom |
| 48 | Support Panel |
| 49 | Grille, Panel |
| 50 | Filler, Grille Panel |
| 51 | Panel, Inner Grille |
| 52 | WP503695 Whirlpool Refrigerator Sealer |
| 52 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 52 | WPL 758889 |
| 52 | 350956 Whirlpool Spray Assembly |
| 52 | VALVE, ACCESS (5/8``) |
| 52 | Almond (Uncut) |
| 52 | WP72107 Whirlpool Touchup |
| 52 | 350942 Whirlpool Spray Paint |
| 52 | Leveler (Thinner) (2oz.) |
| 52 | WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive |
| 52 | VALVE, ACCESS (1/2``) |
| 52 | WP978025 Whirlpool Refrigerator Valve |
| 52 | 978030 Whirlpool Refrigerator Valve |
| 52 | WPL 799351 |
| 52 | WP505587 Whirlpool Refrigerator Sealer |
| 52 | 978026 Whirlpool Refrigerator Primary Valve |
| 52 | Insul/Bottom Foam |
| 52 | 978027 Whirlpool Refrigerator Primary Valve |
