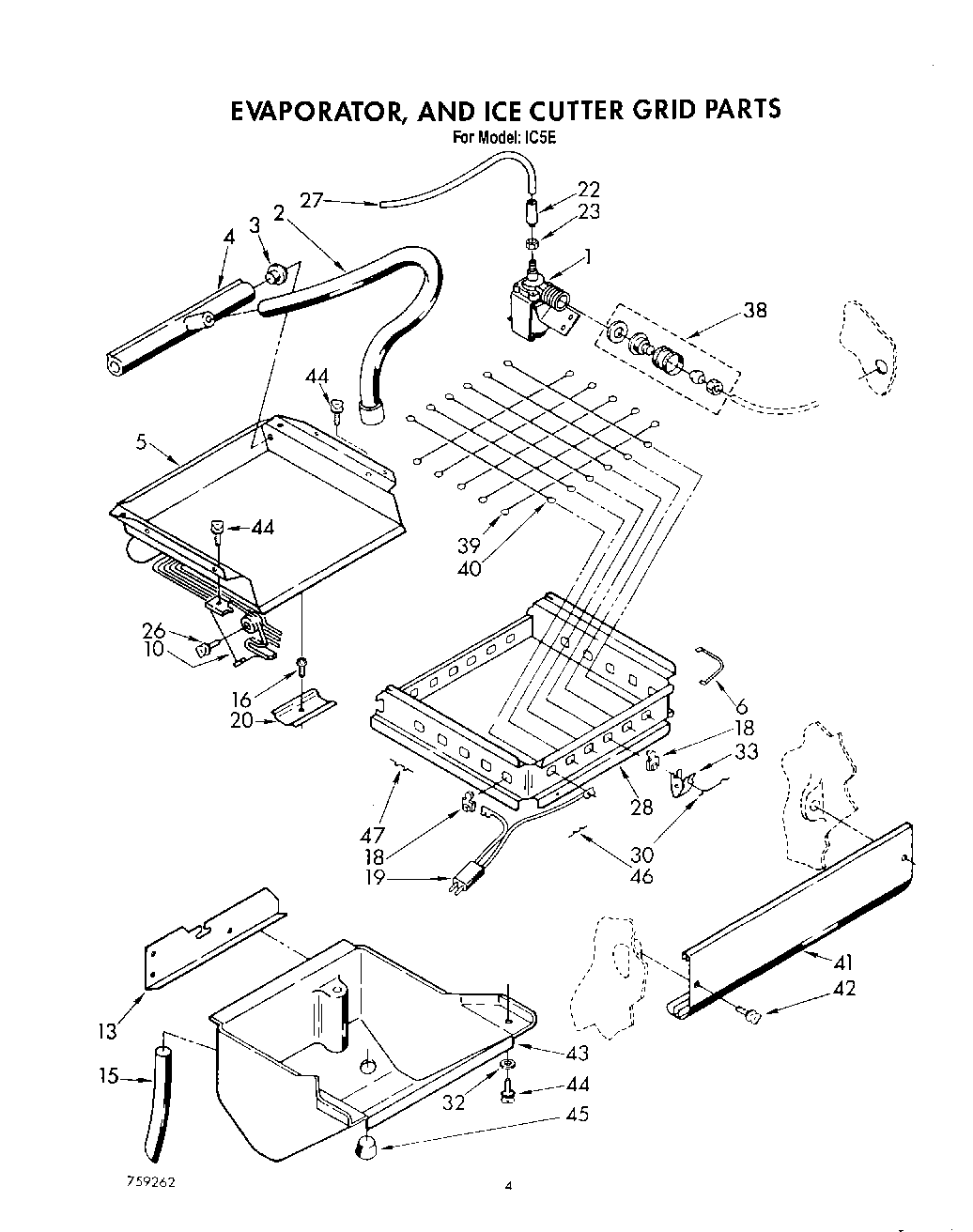

IC5E 03 – EVAPORATOR, AND ICE CUTTER GRID

Products

Position	Product
1	Valve, Water (Complete)
2	Hose, Dispenser
3	Plug,
4	Dispenser, Water
5	Evaporator
6	Lead, Grid Connection
10	Bracket, Grid (2)
13	Shelf, Water Pan
15	WPL 759109
16	Screw, 10-32 x 1/2
18	Insulator, Grid Wires (38)
19	WPL 587638
20	Clamp
22	4387491 Whirlpool Refrigerator Insert
23	WP627018 Whirlpool Refrigerator Nut
26	Screw, Thumb 10-32 x 1“
27	WPL 759213
28	Frame, Grid (Only Available As An Assembly, See Optional Parts)
30	Pin, Grid Wires (4)
32	Washer, Latch
33	Clip, Grid Wires (11)
33	WPL 564069
38	WPL 533238
39	Wire, Cutter (Includes 9 Wires)
40	Wire, Cutter (Includes 10 Wires)
41	Panel, Grid
42	Thumbscrew 10-32 x 5/8
43	Pan, Water
44	Screw, 10 x 1/2
45	WPL 759043
46	Pin, Grid (4)
47	Pin (5) 3EHC50-1 Only
