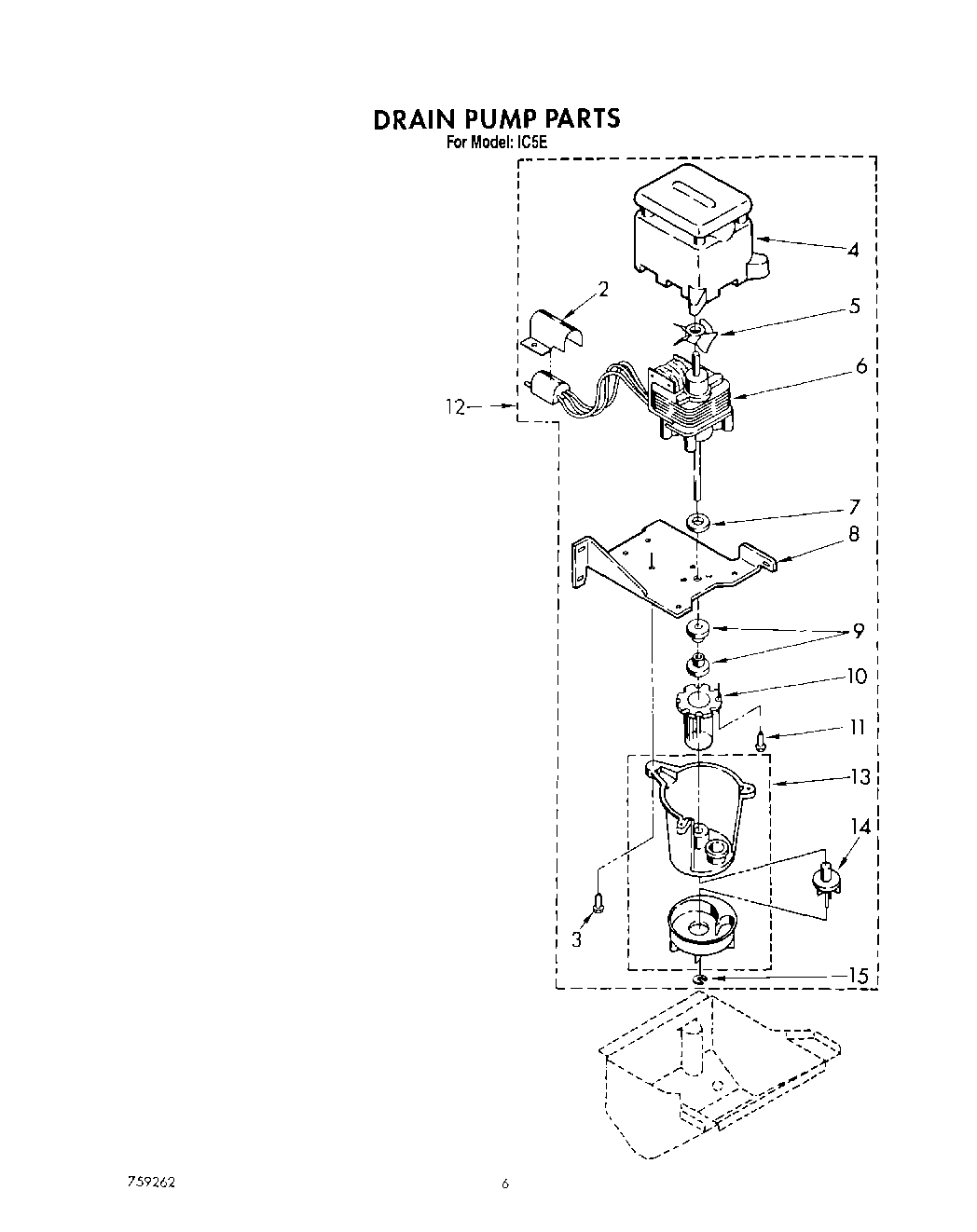

IC5E 04 – DRAIN PUMP

IC5E 04 – DRAIN PUMP

Written by

in

IC5E 04 – DRAIN PUMP

Products

PositionProduct
2Sheild, Wiring
3Screw, 8-18 x 3/4
4WPL 583155
5Blade, Fan
6WPL 1127835
7WPL 583424
8Bracket, Pump
9Grommet (2)
10Sleeve
11681390 Whirlpool Refrigerator Screw
12Pump, Water (Complete)
13Pump, Assembly
14Impeller (Includes Retaining Ring 15)
15Ring, Retaining
