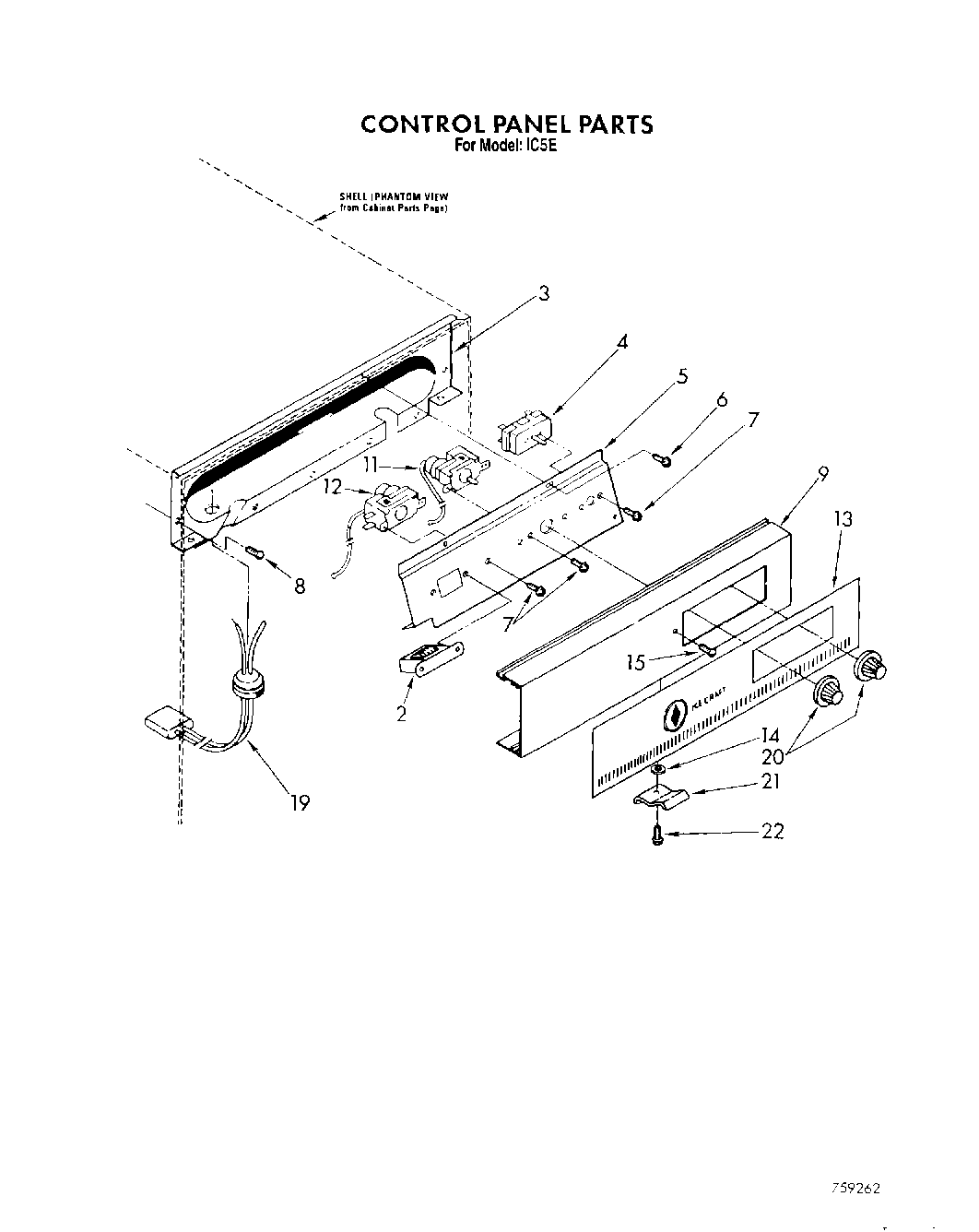

IC5E 05 – CONTROL PANEL

Products

Position	Product
2	WPL 758309
3	Panel, Rear Escutcheon
4	Switch, Rotary
5	Panel, Control
6	WP965173 Whirlpool Dishwasher Screw
7	WP486579 Whirlpool Air Conditioner Screw
8	Screw, 8-32 x 3/8 (2)
9	Escutcheon
11	Thermostat, Evaporator
12	Thermostat, Ice Bin
13	Decal, Escutcheon
14	Washer, Latch
15	WP250830 Whirlpool Refrigerator Screw
19	Harness, Wiring (Cutter Grid)
20	Knob
21	Latch, Door
22	Repair, Screw
