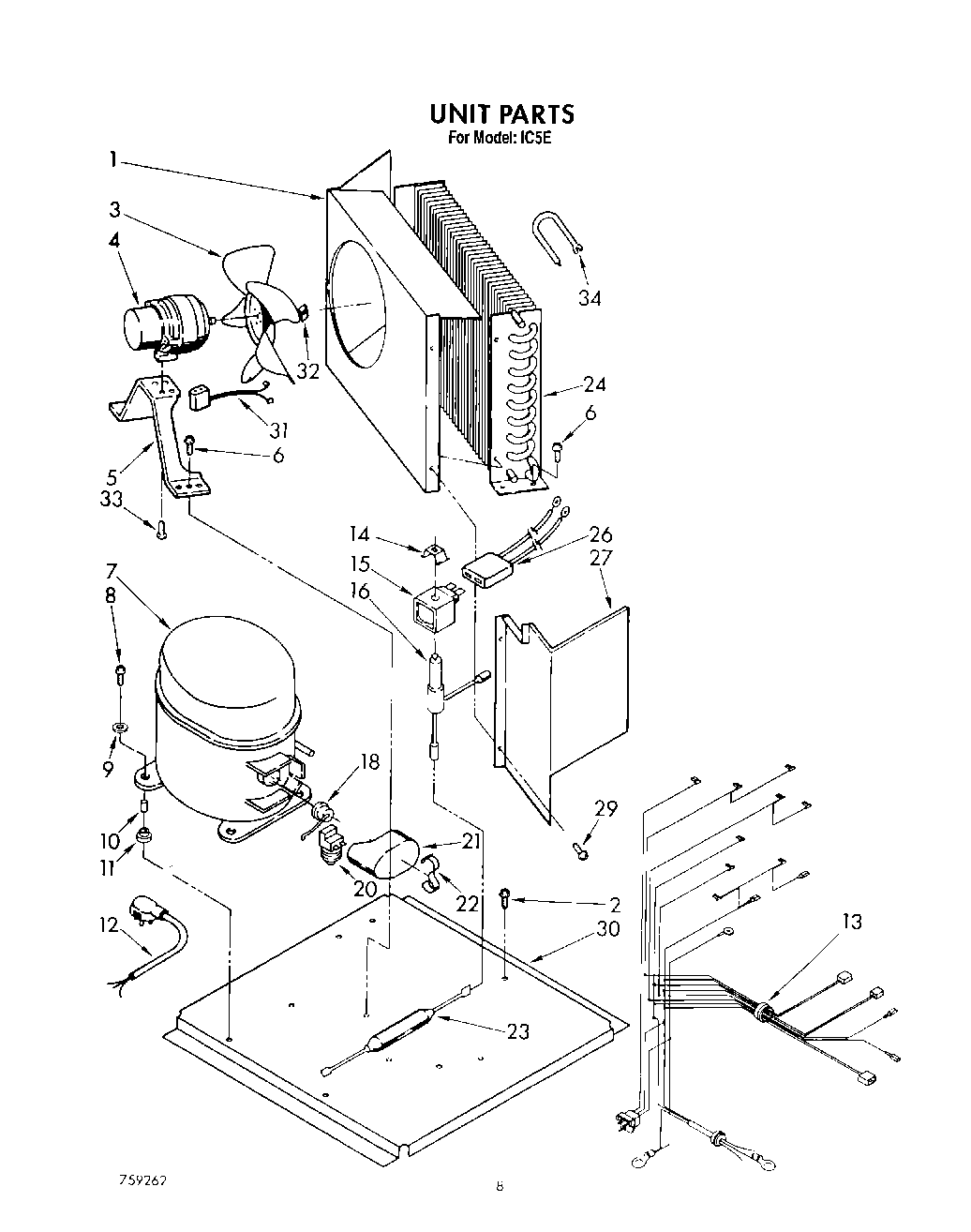

IC5E 06 – UNIT

Products

Position	Product
NI	Spring, Overload
1	Shroud, Condenser
2	Screw, No.10-32 x 3/8
3	978655 Whirlpool Refrigerator Fan Blade
4	WPL 593821
5	Bracket, Fan Motor
6	Screw, 1/4-20 x 1/2
7	Compressor
8	Screw, 5/16-18 x 1-1/4 (4)
9	Washer, Flat (4)
10	Sleeve (4)
11	Grommet (4)
12	Service Cord
13	WPL 758406
14	Retainer, Solenoid Coil
15	WPL 593639
16	Valve, Solenoid Coil
18	WPL 598196
20	WPL 598195
21	Case, Relay
22	Cover, Spring
23	W10843121 Whirlpool Refrigerator Tube
24	Condenser
26	Harness, Wiring (Solenoid Coil)
27	Deflector, Front
29	WP90767 Whirlpool Screw
30	Base, Unit
31	Harness, Wiring (Fan Motor)
32	WP486692 Whirlpool Refrigerator Nut
33	Screw, 8-36 x 1/2 (Included W/Fan Motor)
34	Accumulator
