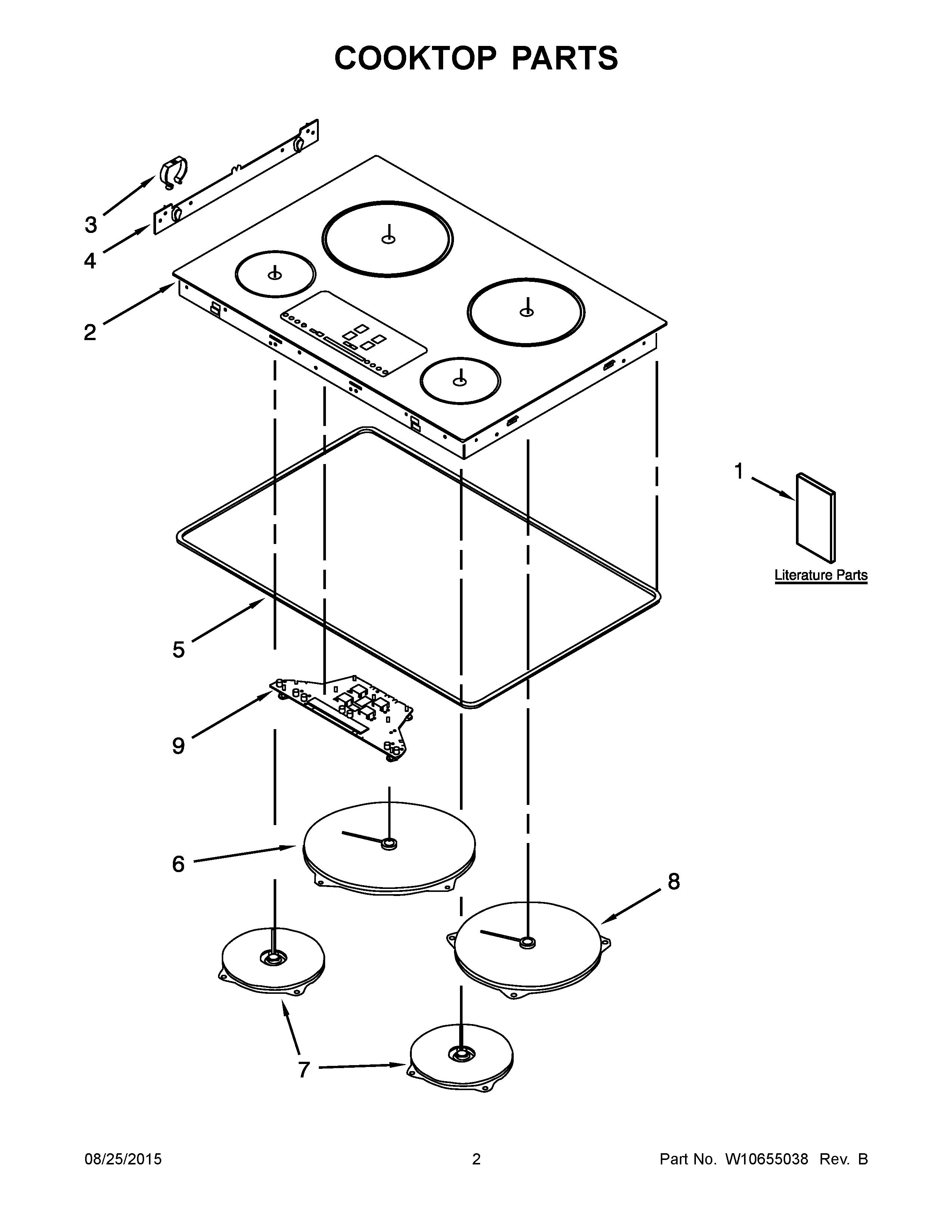

ICI500XB01 02 – COOKTOP PARTS

ICI500XB01 02 – COOKTOP PARTS

Written by

in

ICI500XB01 02 – COOKTOP PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1ATECH SHEET
2W10330287 Whirlpool Cooktop
3W10810497 Whirlpool Spring
4WPW10328377 Whirlpool Bracket Support
5WPW10237005 Whirlpool Cooktop Gasket
6WPW10328391 Whirlpool Hot Plate
7W10328384 Whirlpool Hot Plate
8W10328387 Whirlpool Hot Plate
9BOARD, DISPLAY
